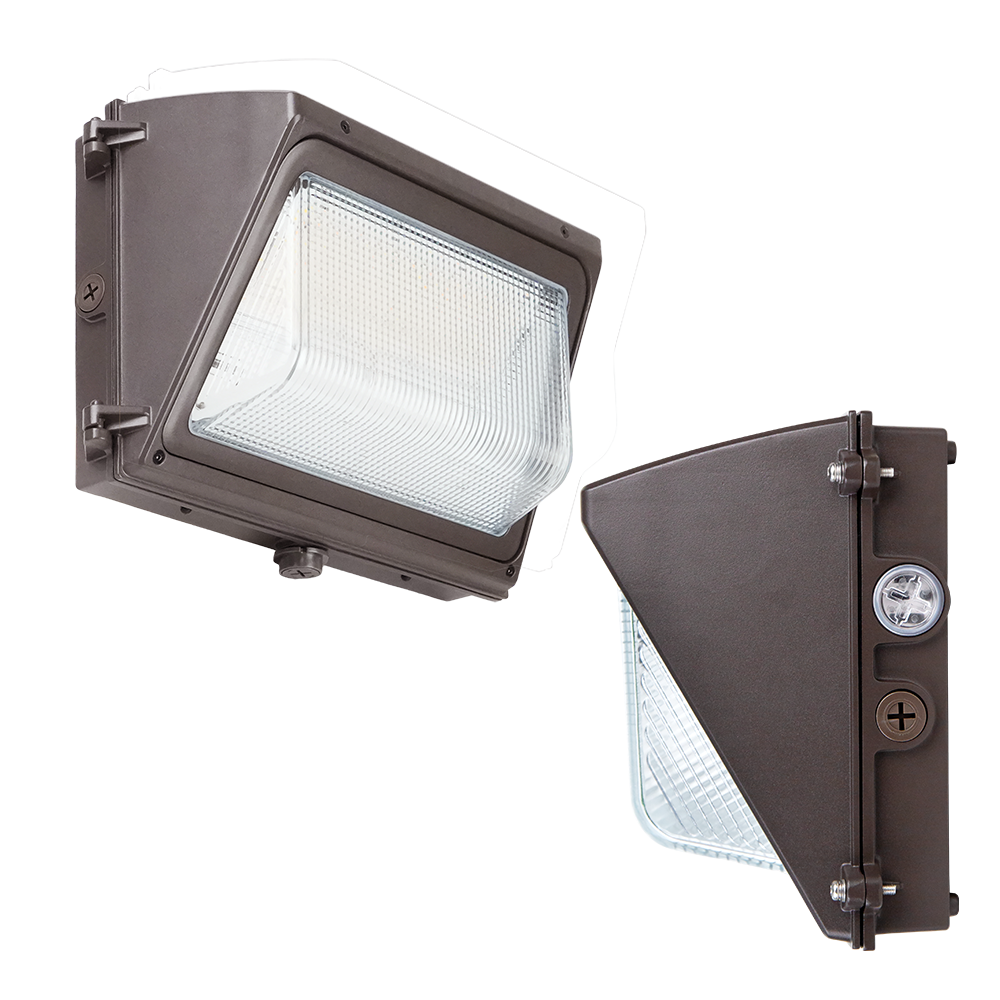

Traditional Wall Pack Sensor Ready | 16.817Lm Max | 120/277V | 3-CCT Selectable | WPTSR

The WPTSR Traditional Wall Pack – Sensor Ready – Lumen & CCT Selectable is a powerful commercial outdoor lighting solution designed for building security, perimeter illumination, entrances, walkways, parking areas, warehouses, and industrial facilities. Combining a classic wall pack design with modern LED efficiency, this fixture delivers high-output illumination, field-selectable color temperatures, and sensor-ready functionality for enhanced safety and energy savings.

Designed for projects where visibility and security are critical, the WPTSR series features field-selectable 3000K, 4000K, and 5000K color temperatures, allowing contractors and facility managers to customize lighting appearance based on the environment. Use 3000K warm white for softer exterior lighting, 4000K neutral white for balanced visibility, or 5000K cool white for high-security and high-traffic areas requiring brighter illumination.

Available in multiple lumen packages, the WPTSR wall pack provides flexible output ranging from 3,781 to 16,817 nominal lumens. The WPTSR-8654L-3CCT delivers 3,781 to 7,817 lumens, while the WPTSR-1715129L-3CCT produces 9,076 to 16,817 lumens, making the series suitable for both medium and high-output commercial lighting applications.

The fixture features a durable prismatic glass lens designed to improve light uniformity and visibility across building perimeters, service entrances, loading docks, pathways, and exterior walls. Combined with a rugged die-cast aluminum housing and durable bronze powder-coated finish, the WPTSR is built for long-term performance in demanding outdoor environments.

Engineered for commercial electrical systems, the fixture operates on 120-277V universal voltage and includes standard 0-10V dimming capability for compatibility with modern lighting controls and automation systems. An integrated switchable photocell provides automatic dusk-to-dawn functionality, while the sensor-ready screw-in design supports optional occupancy sensors for motion-activated lighting and additional energy savings.

Built for durability, the WPTSR series is rated IP65 for protection against dust and water ingress and IK06 for impact resistance. It performs reliably in ambient temperatures ranging from -40°F to 122°F, making it suitable for harsh outdoor environments and year-round operation.

With advanced LED technology rated for 167,000 hours L70 and 51,000 hours L90, the fixture helps reduce maintenance and replacement costs over time. Additional features include 6kV surge protection, power factor above 0.9, and THD below 20% for efficient and stable performance. Optional 4W or 8W emergency drivers are available to maintain illumination during power outages.

DLC Premium listed and cULus wet-location rated, the WPTSR Traditional LED Wall Pack is an ideal solution for commercial buildings, industrial facilities, schools, warehouses, and security-focused outdoor lighting projects requiring dependable illumination and smart sensor integration.

Technical Specifications

Product Type: Traditional LED Wall Pack
Series: WPTSR Sensor Ready

Optical System

• Selectable CCT: 3000K / 4000K / 5000K
• WPTSR-8654L-3CCT Lumens: 3,781 – 7,817 lm
• WPTSR-1715129L-3CCT Lumens: 9,076 – 16,817 lm
• CRI: >80
• Lens Type: Prismatic Glass
• LED Chromaticity: <6-step ANSI quadrangles
• Color Maintenance: < -0.0027 chromaticity shift (Δu’v’) over first 6,000 hours

Electrical

• Voltage: 120-277V
• Frequency: 50/60Hz
• Dimming: 0-10V DC
• Photocell: Integrated switchable photocell
• Sensor Ready: Screw-in occupancy sensor ready
• Surge Protection: 6kV
• Power Factor: >0.9
• THD: <20%

Construction

• Housing Material: Die-Cast Aluminum
• Finish: Bronze Powder Coat
• Mounting: Wall Mount Kit Included

Environmental

• Operating Temperature: -40°F to 122°F
• Wet Location Rated
• IP Rating: IP65
• Impact Rating: IK06
• cULus Listed
• DLC Premium Listed
• FCC Part 15 Class A Compliant

Lifespan & Warranty

• L70 Lifetime: 167,000 Hours
• L90 Lifetime: 51,000 Hours
• Optional Emergency Drivers: 4W or 8W
• Warranty: 5 Years
