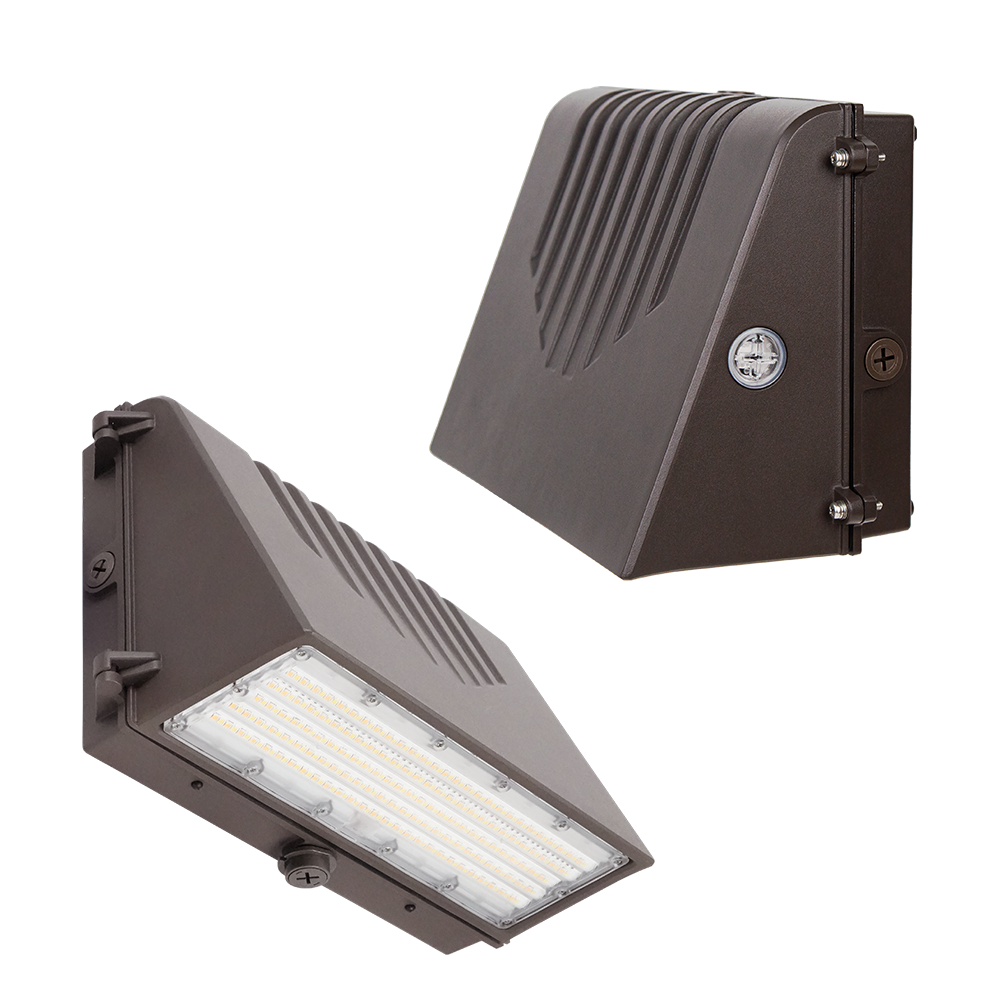

LED Full Cut-Off Wall Pack | 17K Lm Max | 120/277V | 3-CCT Selectable | WPFCSR

The WPFCSR Full Cutoff Wall Pack – Sensor Ready – Lumen & CCT Selectable is a high-performance commercial outdoor lighting solution engineered for projects requiring Dark-Sky compliance, reduced light trespass, and energy-efficient illumination. Designed for schools, municipal buildings, walkways, parking areas, warehouses, commercial exteriors, and public facilities, this full cutoff LED wall pack delivers powerful lighting performance while helping minimize skyglow and unwanted upward light.

Built with a true full cutoff design, the WPFCSR series is ideal for communities and projects following Dark-Sky lighting ordinances or outdoor lighting regulations focused on responsible nighttime illumination. Its controlled light distribution improves visibility and security while reducing glare and environmental light pollution.

The WPFCSR wall pack features field-selectable 3000K, 4000K, and 5000K color temperatures, allowing contractors and facility managers to adjust the lighting appearance based on project requirements. Choose 3000K warm white for softer outdoor environments, 4000K neutral white for balanced visibility, or 5000K cool white for maximum security and high-visibility applications.

Available in two lumen-selectable models, the fixture delivers flexible output ranging from 4,815 to 17,186 nominal lumens. The WPFCSR-9865L-3CCT provides 4,815 to 9,010 lumens, while the WPFCSR-17151310L-3CCT delivers 9,337 to 17,186 lumens, making the series suitable for both medium and high-output exterior lighting applications.

Constructed with a rugged die-cast aluminum housing and finished in durable bronze powder coating, the WPFCSR is built to withstand harsh outdoor environments. The durable polycarbonate lens provides long-lasting optical performance, while the fixture’s IP65 ingress protection and IK08 impact resistance ratings ensure dependable operation in demanding commercial and industrial conditions.

The fixture operates on 120-277V universal voltage and includes standard 0-10V dimming capability for compatibility with advanced lighting controls. An integrated switchable photocell allows automatic dusk-to-dawn operation, while the sensor-ready screw-in design supports optional PIR or microwave occupancy sensors for additional energy savings and smart lighting automation.

Designed for long-term reliability, the WPFCSR series provides 167,000 hours L70 and 51,000 hours L90 LED lifespan, helping reduce maintenance costs and fixture replacements. Additional electrical features include 6kV surge protection, power factor greater than 0.9, and THD below 20% for efficient performance.

DLC Premium listed and cULus wet-location rated, the WPFCSR Full Cutoff Wall Pack is an ideal solution for commercial projects seeking dark-sky-friendly outdoor lighting with customizable lumen output and color temperature flexibility.

Technical Specifications

Product Type: Full Cutoff LED Wall Pack
Series: WPFCSR Sensor Ready

Optical System

• Selectable CCT: 3000K / 4000K / 5000K
• WPFCSR-9865L-3CCT Lumens: 4,815 – 9,010 lm
• WPFCSR-17151310L-3CCT Lumens: 9,337 – 17,186 lm
• CRI: >80
• Lens Material: Polycarbonate
• LED Chromaticity: <6-step ANSI quadrangles
• Color Maintenance: < -0.0034 chromaticity shift (Δu’v’) over first 6,000 hours

Electrical

• Voltage: 120-277V
• Frequency: 50/60Hz
• Dimming: 0-10V DC
• Photocell: Integrated switchable photocell
• Sensor Ready: Screw-in occupancy sensor ready
• Surge Protection: 6kV
• Power Factor: >0.9
• THD: <20%

Construction

• Housing Material: Die-Cast Aluminum
• Finish: Bronze Powder Coat
• Mounting: Wall Mounting Kit Included

Environmental

• Operating Temperature: -40°F to 122°F
• Wet Location Rated
• IP Rating: IP65
• Impact Rating: IK08
• cULus Listed
• DLC Premium Listed
• FCC Part 15 Class A Compliant

Lifespan & Warranty

• L70 Lifetime: 167,000 Hours
• L90 Lifetime: 51,000 Hours
• Warranty: 5 Years
