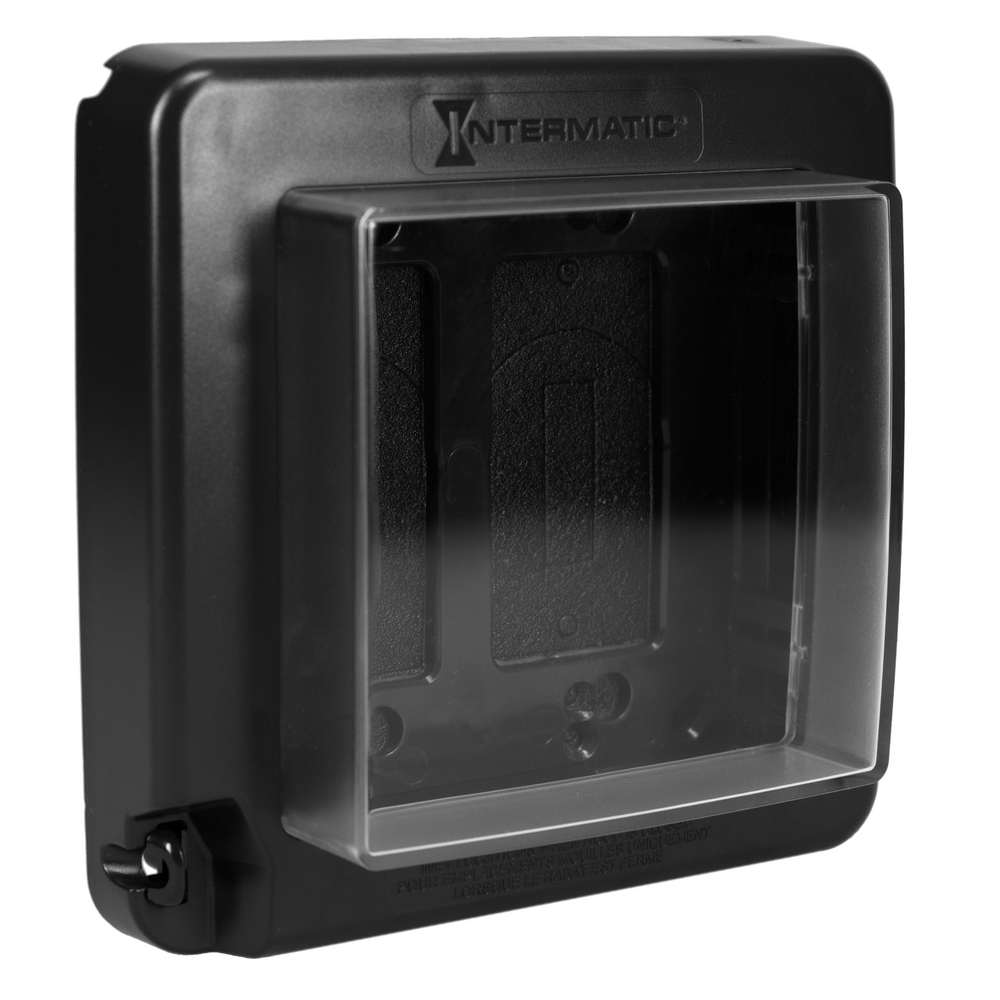

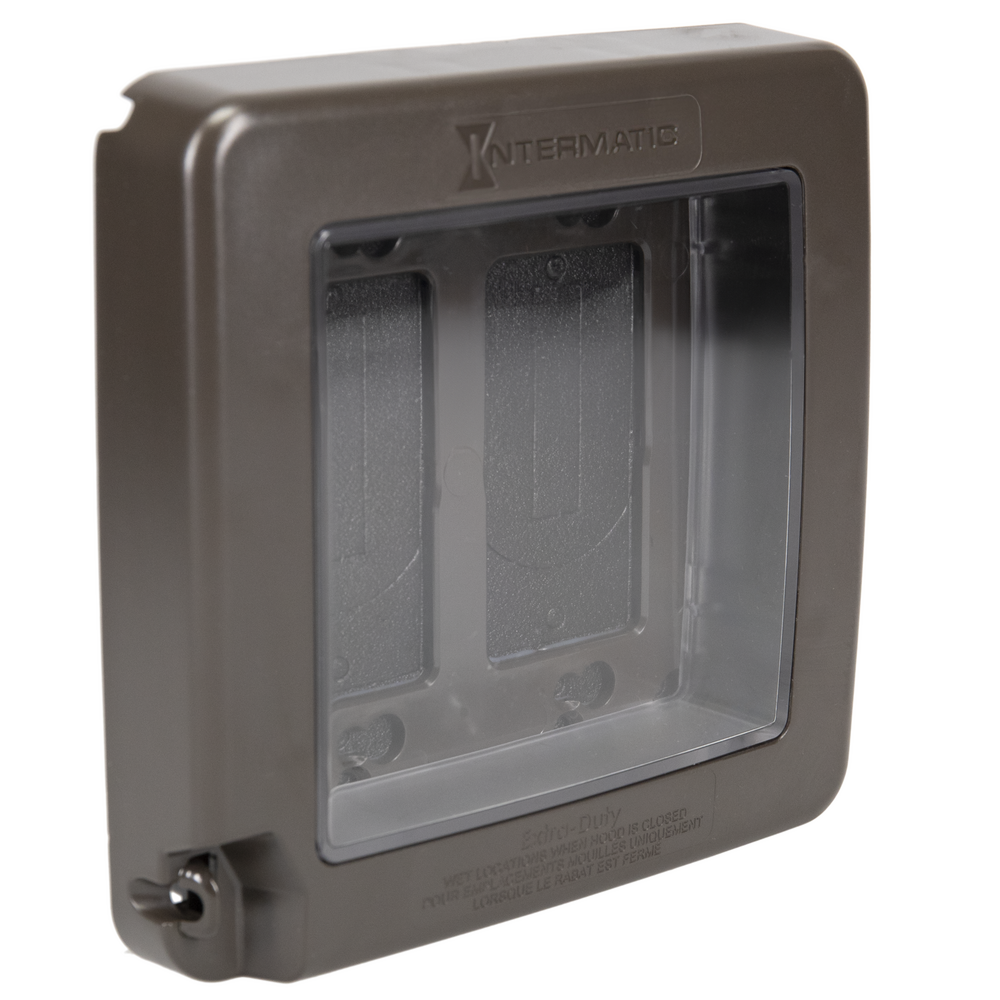

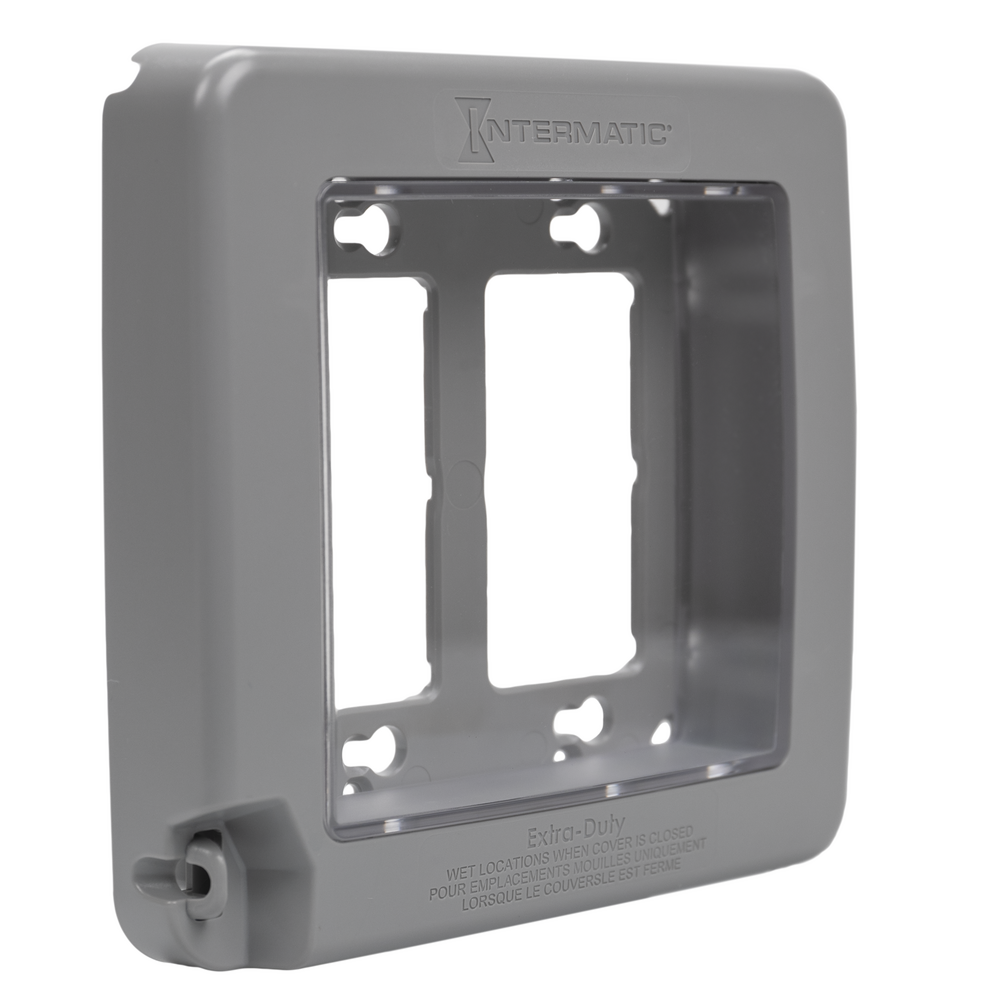

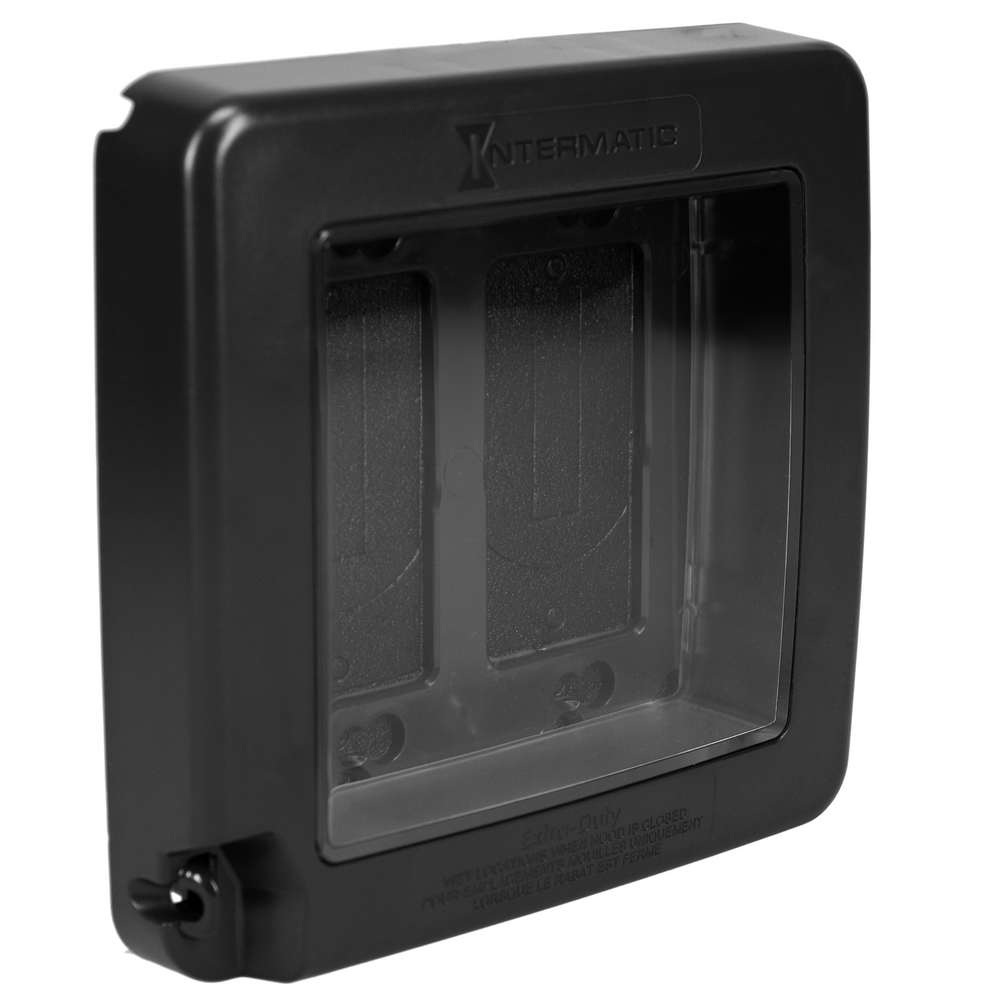

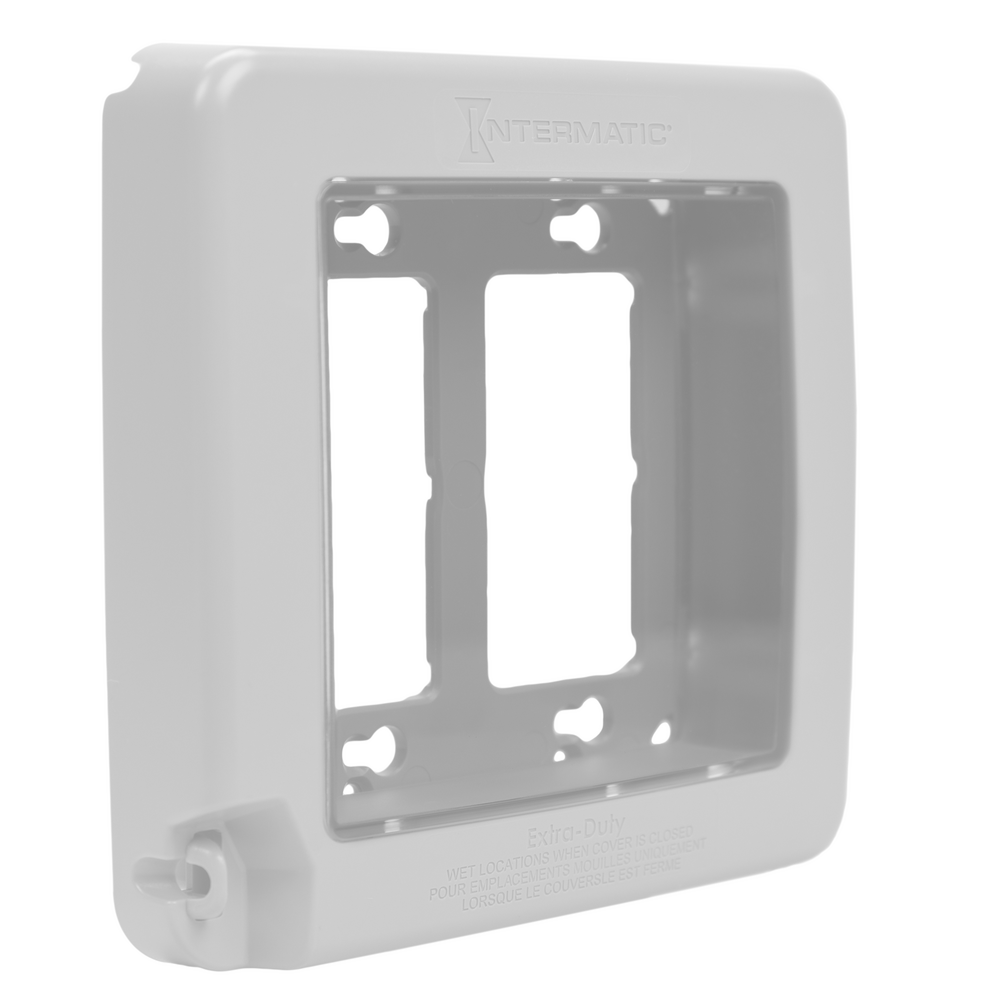

2-Gang Low Profile Extra-Duty In-Use Weatherproof Cover | Vertical/Horizontal Mount | WP7200

Protect dual outdoor electrical receptacles with the ultra-slim Low-Profile Extra-Duty Plastic In-Use Weatherproof Cover (WP7200 Series). Designed with an exceptionally low-profile 1.5-inch depth, this double-gang cover delivers robust physical and environmental protection while cords remain plugged in, eliminating bulky exterior wall projections. Engineered for effortless installation, it comes complete with a neoprene sealing gasket, mounting hardware, base and cover assembly, and custom adapter inserts to suit a variety of double-gang device configurations.

Constructed from high-impact, UV-stabilized polycarbonate, the WP7200 series features a 100% paintable surface, enabling seamless visual integration with any residential or commercial building exterior. It fully complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications, CEC Article 26-702, and carries cULus Certification for Type 3R outdoor enclosures. Engineered for severe weather resistance, it passes cold-impact requirements down to -60°F (-51°C), features a 12 lbf. impact rating, and includes a reinforced hinge pin built to surpass a 40 lbf. stress test.

Security and weather resistance are integral to its design: the cover features a 1/8" (3 mm) thick neoprene gasket with pre-cut screw slits and an integrated lockable hasp accepting padlocks with up to a 0.19" (4.8 mm) shank diameter. The low-profile interior cavity supports standard power cables up to 1x16 AWG.

Key Features:

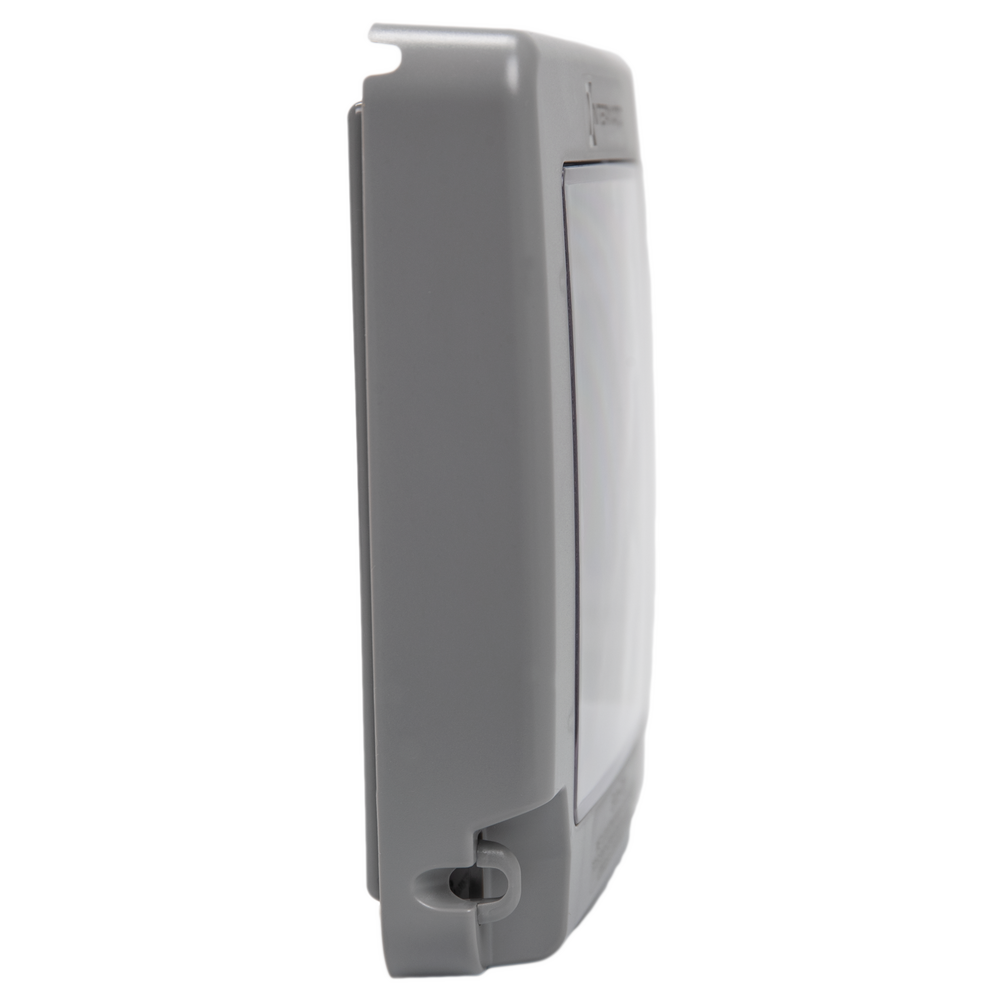

• Ultra-Slim Double-Gang Profile: Compact 1.5-inch depth provides extra-duty protection for dual receptacles with minimal wall clearance.

• 100% Paintable Polycarbonate Housing: UV-stabilized plastic body can be painted to match exterior wall colors and finishes perfectly.

• Code Compliant & Type 3R Rated: Fully complies with 2020 NEC Article 406.9 (B)(1) Extra-Duty standards, CEC Article 26-702, and cULus Type 3R wet location requirements.

• Severe Weather & Cold Impact Resistant: Cold-impact tested to -60°F (-51°C) with a heavy-duty 12 lbf. impact rating and reinforced hinge pin (>40 lbf. stress rated).

• Complete Double-Gang Kit: Includes base and cover assembly, 1/8" neoprene gasket, mounting screws, and multi-configuration inserts.

Technical Specification Table

Product Logic & Ordering Catalog Matrix

Packaging & Included Hardware

• Package Contents:

  • Double-Gang Low-Profile Cover and Base Assembly.

  • 1/8" (3 mm) Thick Neoprene Sealing Gasket.

  • Multi-Receptacle Double-Gang Adaptor Inserts.

  • Mounting Screws & Hardware.

• Carton & Shipping Specifications:

  • Unit Carton Dimensions: 5.6" W x 1.45" L x 5.45" H

  • Unit Carton Weight: 0.5 lbs
