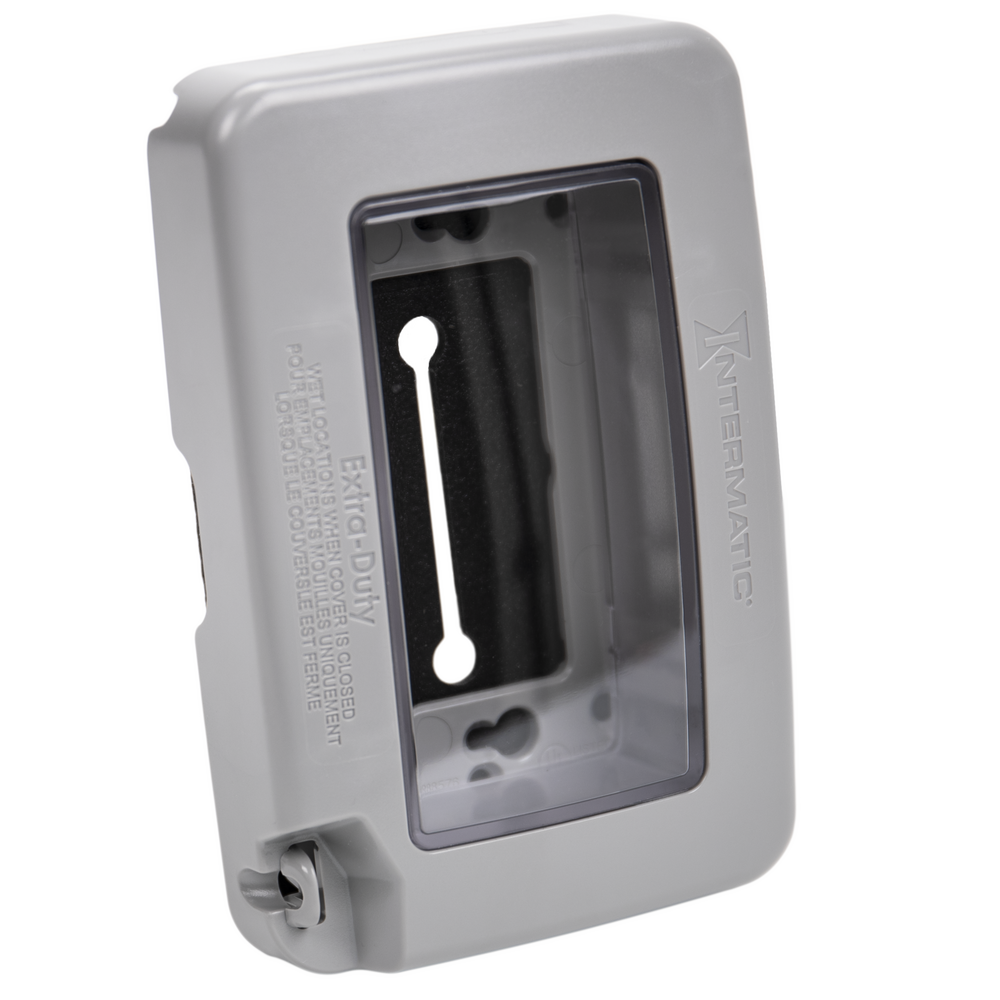

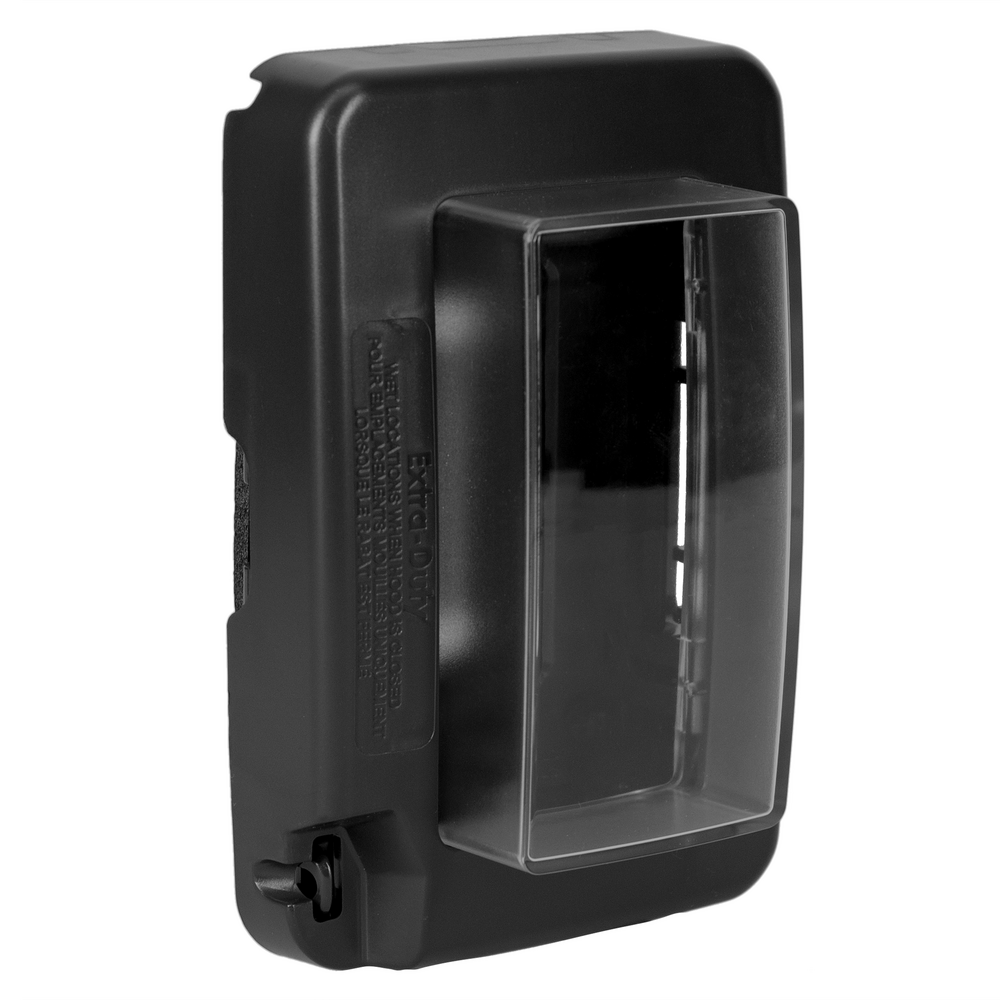

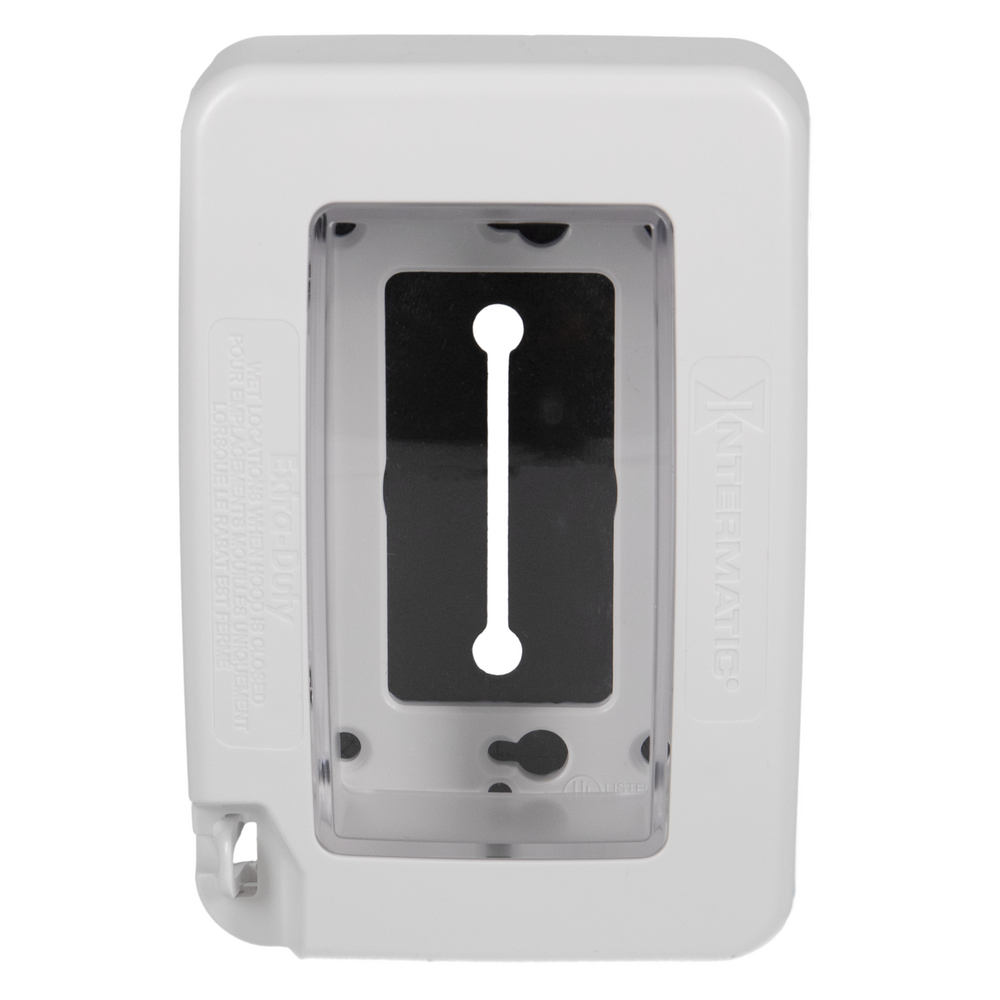

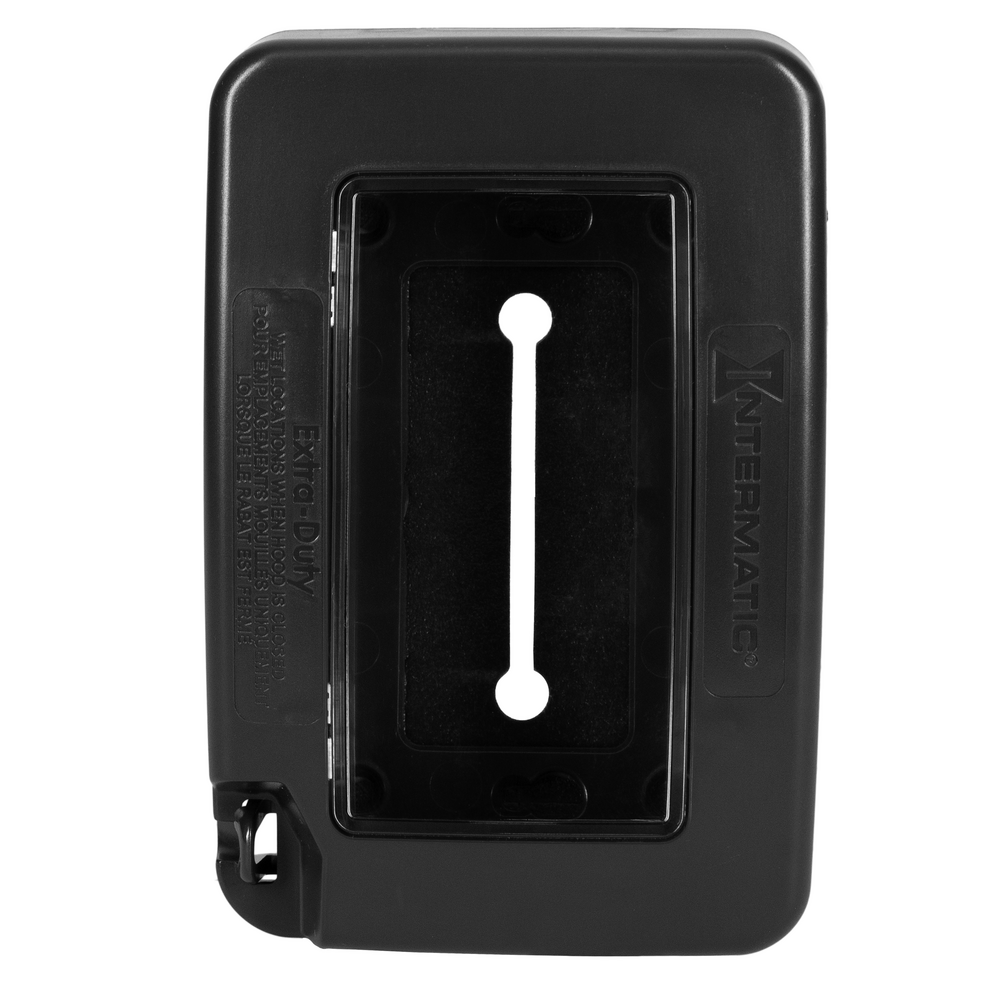

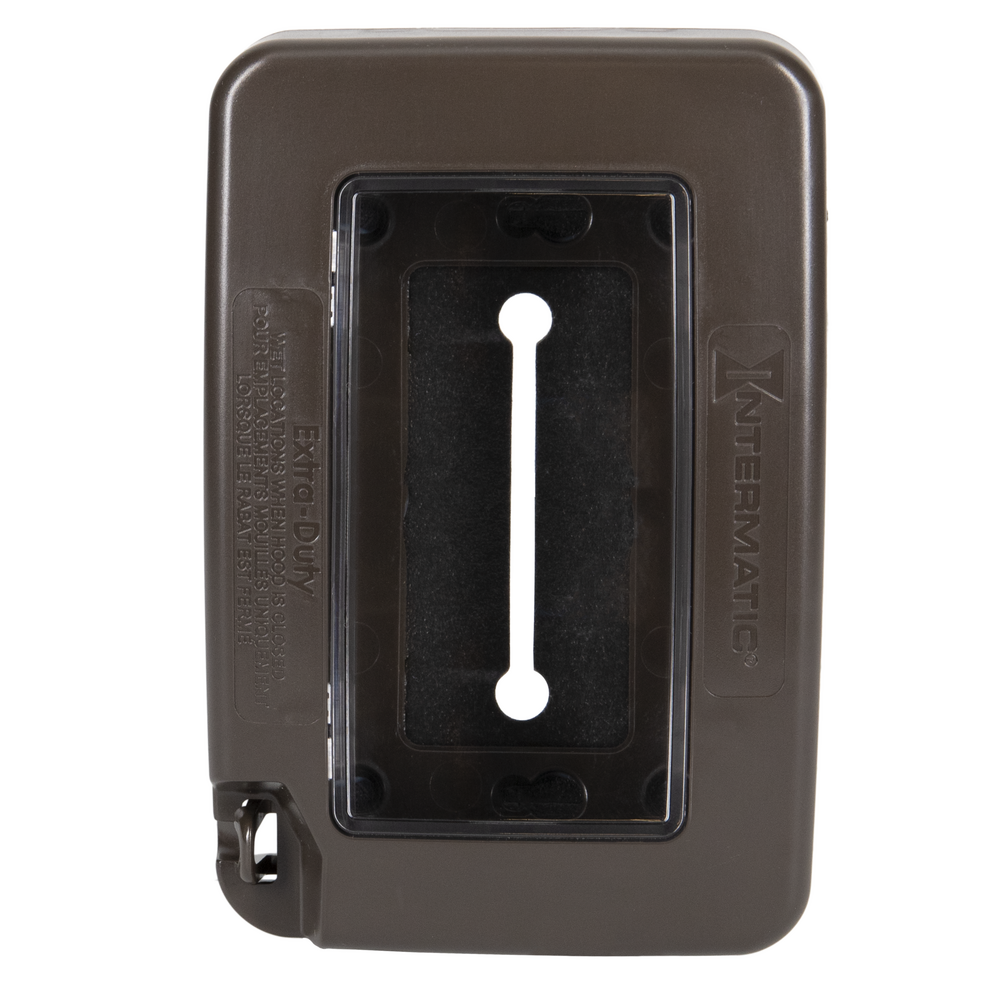

1-Gang Extra Duty Die-Cast In-Use Weatherproof Cover | Low Profile | WP7000

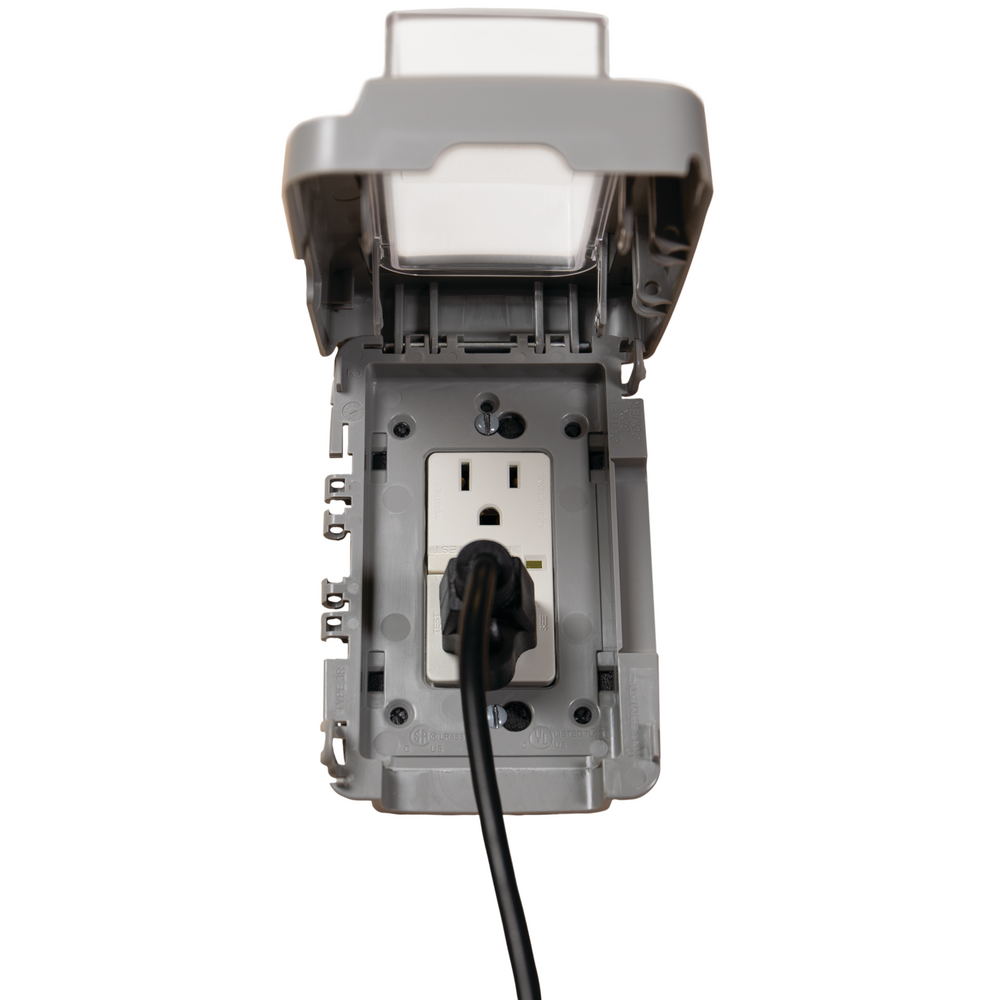

Protect outdoor single-gang electrical receptacles with the ultra-slim Low-Profile Extra-Duty Plastic In-Use Weatherproof Cover (WP7000 Series). Featuring an exceptionally compact 1.5-inch depth profile, this versatile cover provides reliable protection while cords remain plugged in, without protruding unnecessarily from exterior walls. Engineered for fast, adaptable installation, it includes a neoprene gasket, mounting screws, base, cover assembly, and inserts to accommodate multiple receptacle types in both vertical and horizontal orientations.

Manufactured from heavy-duty, UV-stabilized polycarbonate, the WP7000 series features a 100% paintable surface, allowing it to be custom-matched to any exterior color scheme. It is fully compliant with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications, CEC Article 26-702, and holds cULus Certification for Type 3R outdoor enclosures. Tested to endure severe conditions, it satisfies cold-impact requirements down to -60°F (-51°C), withstands a 12 lbf. impact rating, and utilizes a reinforced hinge pin engineered to exceed 40 lbf. of stress.

Security and weather sealing are built-in: the assembly includes a 1/8" (3 mm) thick neoprene gasket with screw slits and an integrated lockable hasp accepting padlocks up to 0.19" (4.8 mm) shank diameter. The interior space accepts standard power cords up to 1x16 AWG.

Key Features:

• Ultra-Slim Low-Profile Design: 1.5-inch depth minimizes exterior clearance while protecting connected power cords in wet locations.

• 100% Paintable Polycarbonate Surface: Heavy-duty UV-stabilized plastic body can be painted to match residential or commercial building exteriors seamlessly.

• Dual Vertical/Horizontal Mounting: Universal hinge and base design allows installation in either vertical or horizontal orientations.

• Code Compliant & Type 3R Rated: Meets 2020 NEC Article 406.9 (B)(1) Extra-Duty standards, CEC Article 26-702, and cULus Type 3R outdoor ratings.

• Extreme Cold & Impact Resistance: Tested for cold impact down to -60°F (-51°C) with a reinforced hinge pin rated to exceed 40 lbf. stress testing.

Technical Specification Table

Product Logic & Ordering Matrix

Packaging & Included Hardware

• Package Contents:

  • Single-Gang Low-Profile Cover and Base Assembly.

  • 1/8" (3 mm) Thick Neoprene Sealing Gasket.

  • Multi-Receptacle Adaptor Inserts.

  • Mounting Screws & Hardware.

• Carton & Shipping Specifications:

  • Unit Carton Dimensions: 3.7" W x 5.5" L x 1.5" H

  • Unit Carton Weight: 0.35 lbs

  • Pallet Quantity: 2,400 Units
