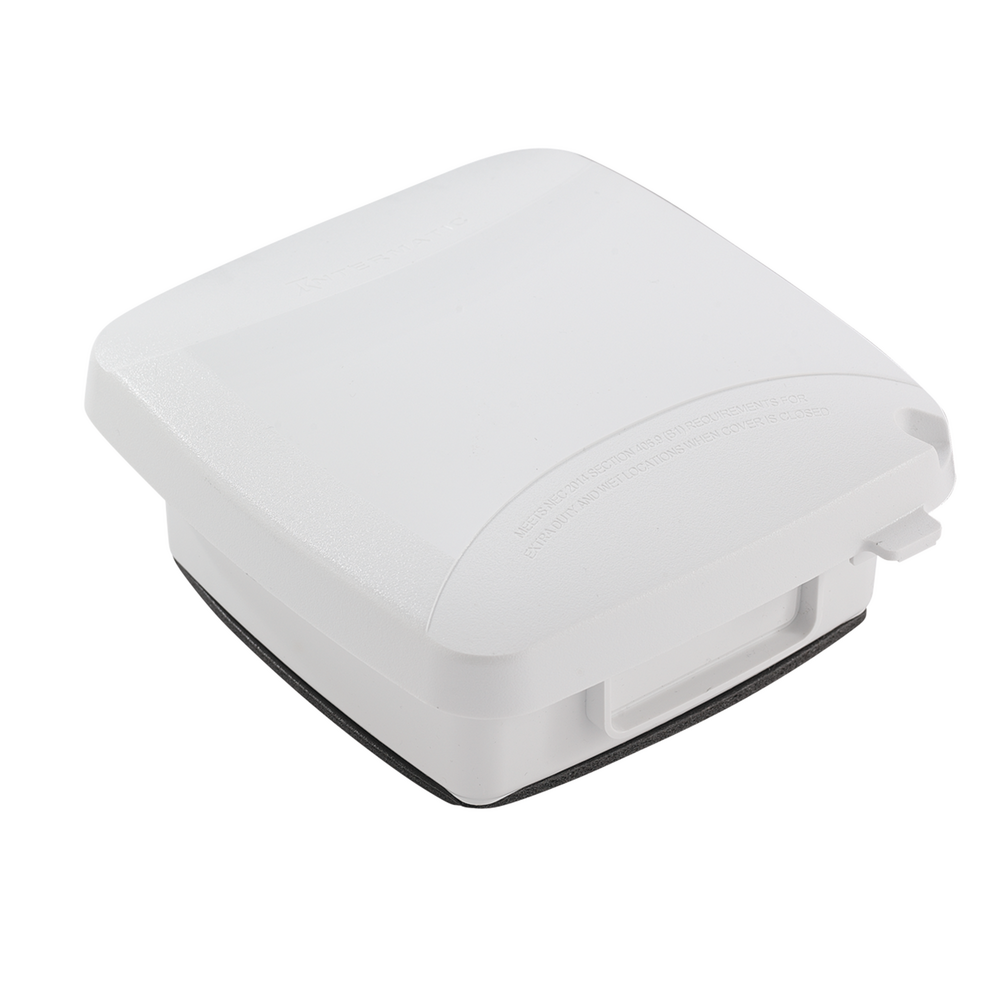

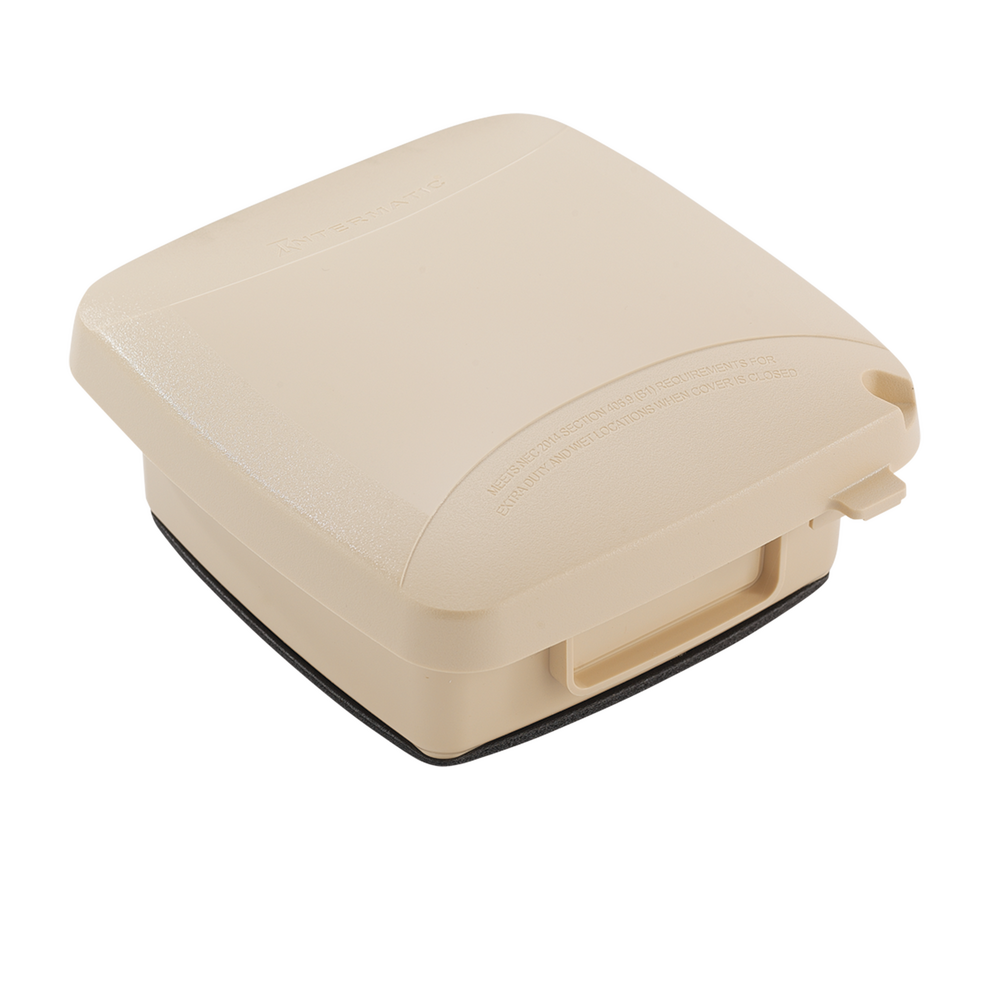

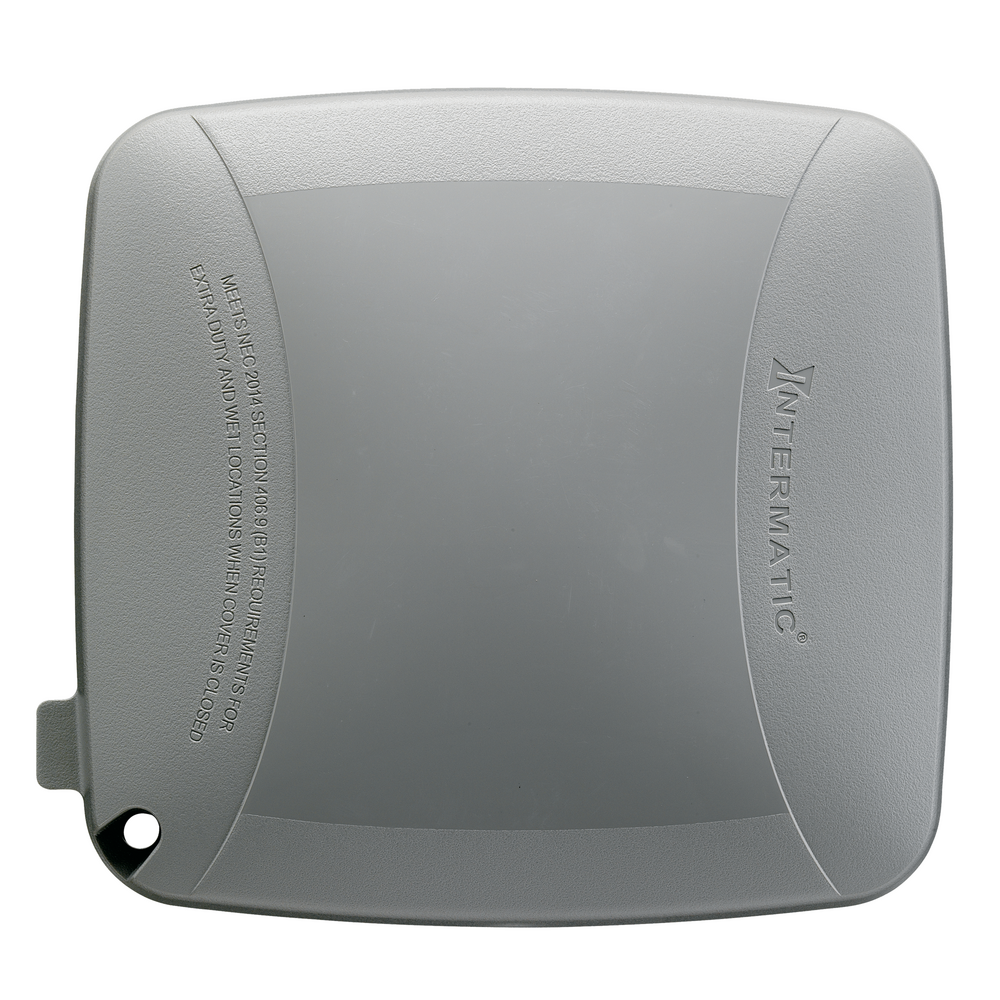

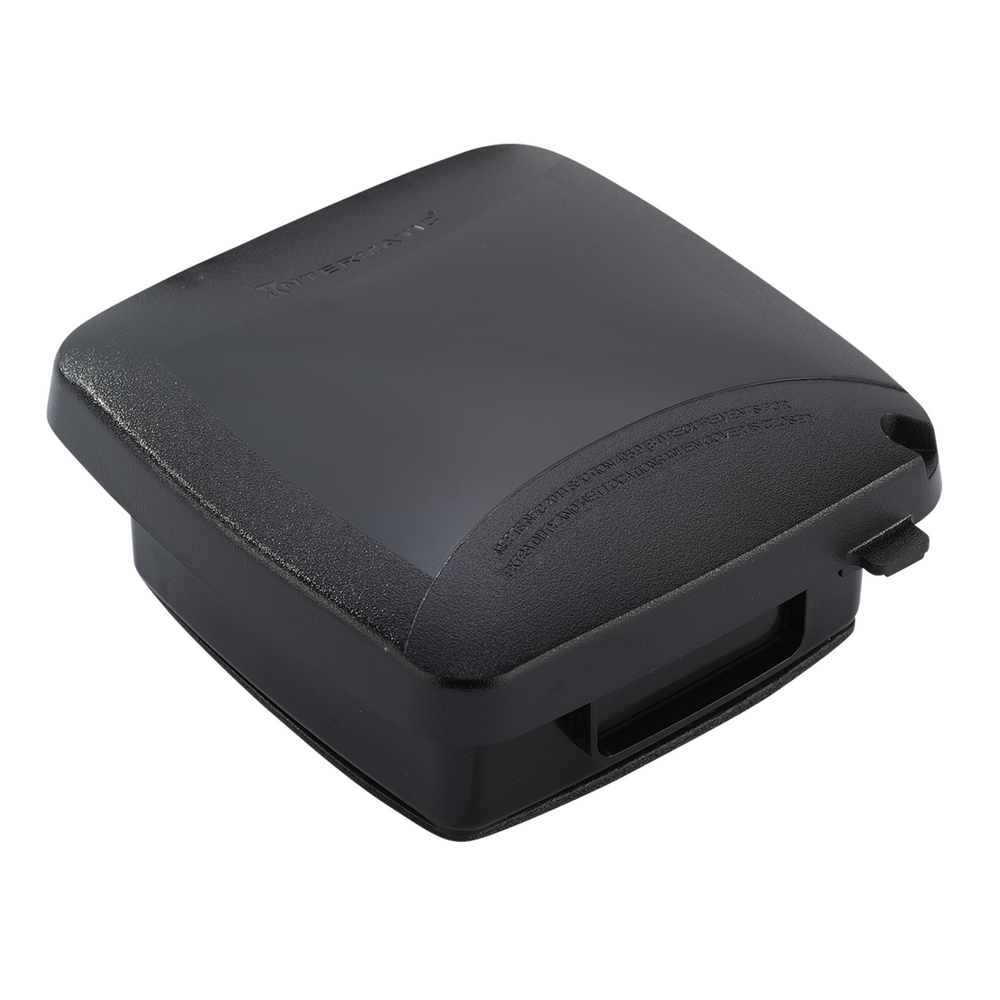

2-Gang Extra-Duty Plastic In-Use Weatherproof Cover | Vertical Mount | WP5220

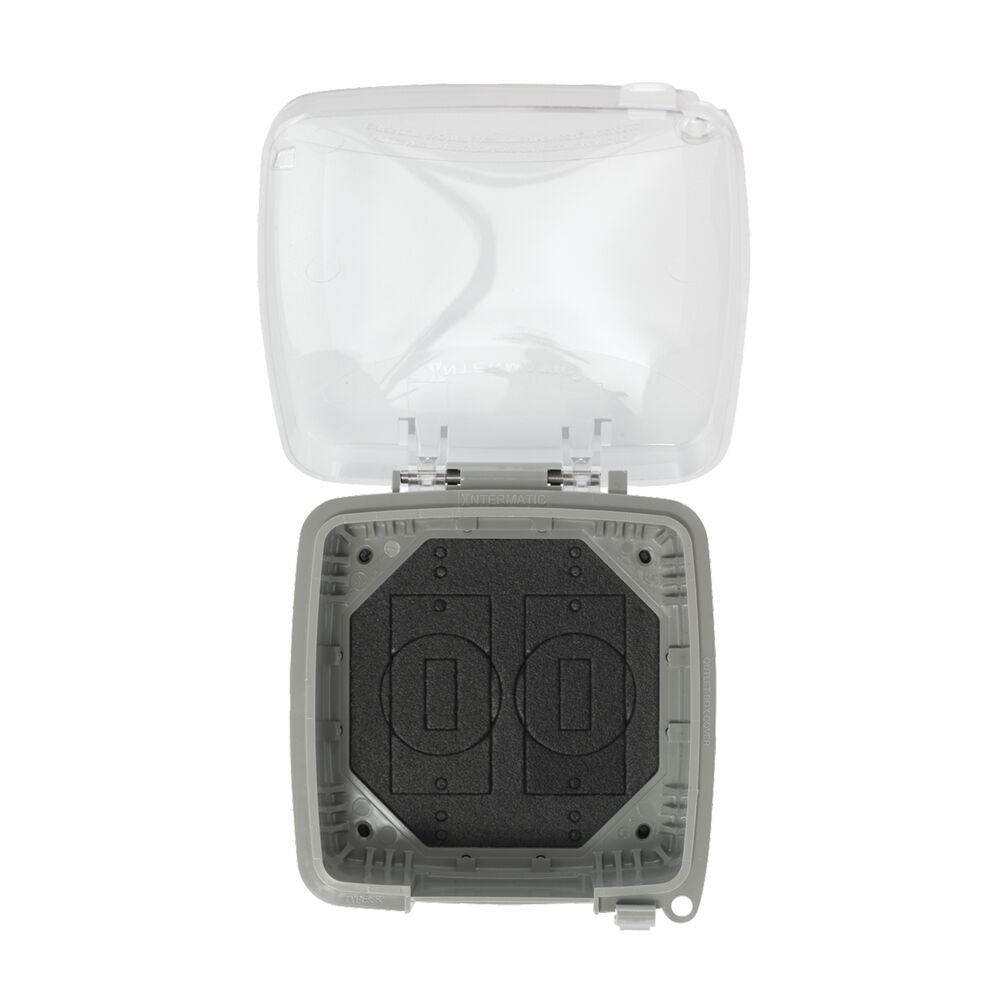

Protect dual outdoor electrical connections in demanding commercial and residential environments with the Extra-Duty Plastic In-Use Weatherproof Cover (WP5220 Series). Featuring a 2.25-inch depth profile, this double-gang vertical cover provides continuous protection against weather and physical impacts while equipment remains plugged in. Designed for quick, hassle-free installation, it includes a pre-adhered neoprene gasket, mounting screws, base, cover assembly, and WP217 inserts to support a wide range of double-gang device configurations.

Manufactured from heavy-duty, UV-stabilized polycarbonate, the WP5220 series complies fully with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications, CEC Article 26-702, and holds cULus Certification for Type 3R outdoor enclosures. Engineered to endure harsh environments, it satisfies cold-impact testing down to -60°F (-51°C), withstands a 12 lb. impact test, and features a reinforced hinge pin designed to exceed a 40 lb. hinge hang/stress test.

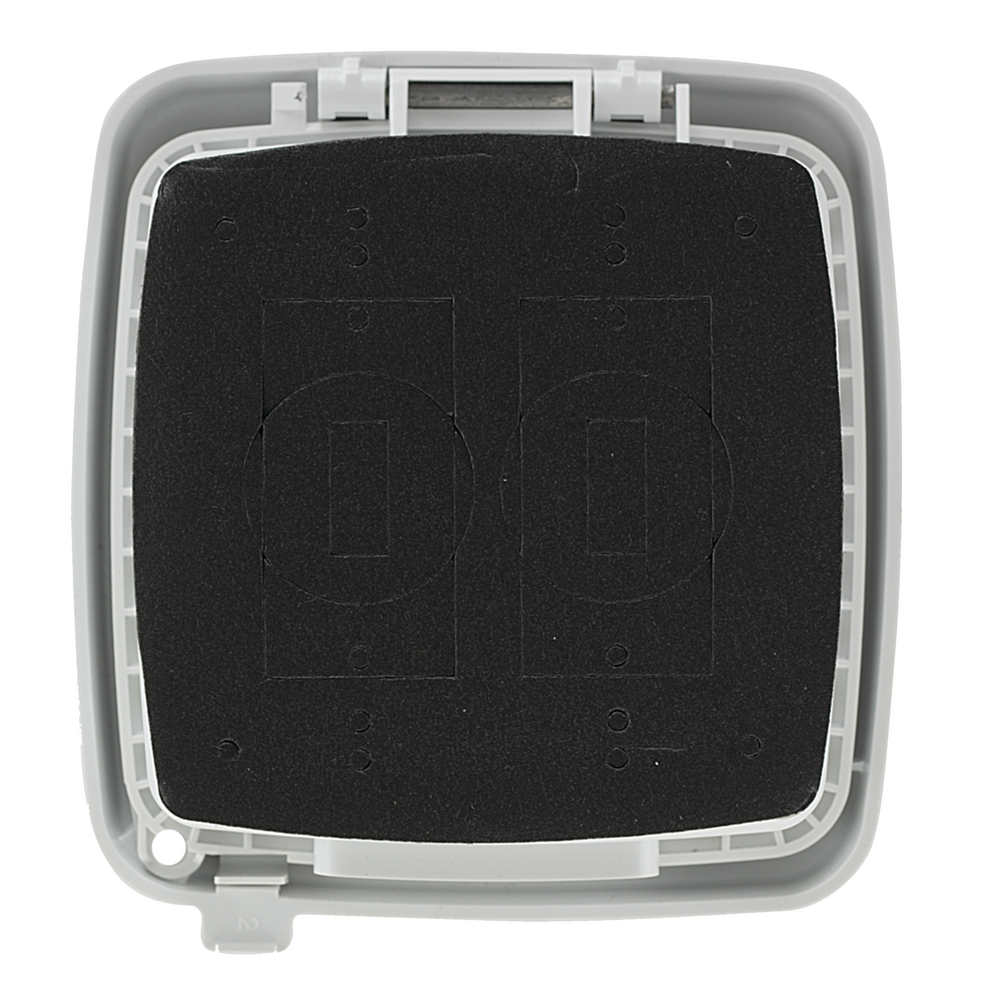

Security and weather sealing are optimized for outdoor durability: the unit includes a 1/8" (3 mm) thick pre-adhered neoprene gasket with screw slits and an integrated lockable hasp accepting padlocks with up to a 1/4" (6 mm) shank diameter. The interior accommodates standard electrical cords up to 1x10 AWG or 2x12 AWG.

Key Features:

• Extra-Duty Polycarbonate Construction: Built with heavy-duty UV-stabilized plastic cover, base, and inserts for long-lasting outdoor resistance.

• Code Compliant & Type 3R Rated: Meets 2020 NEC Article 406.9 (B)(1) Extra-Duty requirements, CEC Article 26-702, and cULus Type 3R wet location standards.

• Pre-Adhered Neoprene Gasket: Includes a 1/8" (3 mm) thick pre-adhered gasket with screw slits for faster, leak-proof mounting.

• Extreme Cold & Impact Performance: Cold-impact tested to -60°F (-51°C) with a 12 lb. impact rating and reinforced hinge pin rated to exceed 40 lb. stress tests.

• Versatile Cord & Lock Capacity: Features a 2.25" depth profile accommodating up to 1x10 AWG or 2x12 AWG cords and a 1/4" shank lockable hasp.

Technical Specification Table

Product Logic & Ordering Catalog Matrix

Packaging & Included Hardware

• Package Contents:

  • Double-Gang Vertical Cover and Base Assembly.

  • 1/8" (3 mm) Thick Pre-Adhered Neoprene Sealing Gasket.

  • WP217 Multi-Receptacle Adaptor Inserts.

  • Mounting Screws & Hardware.

• Carton & Shipping Specifications:

  • Unit Carton Dimensions: 2.75" W x 6.5" L x 6.5" H

  • Unit Carton Weight: 0.75 lbs

  • Pallet Quantity: 648 Units
