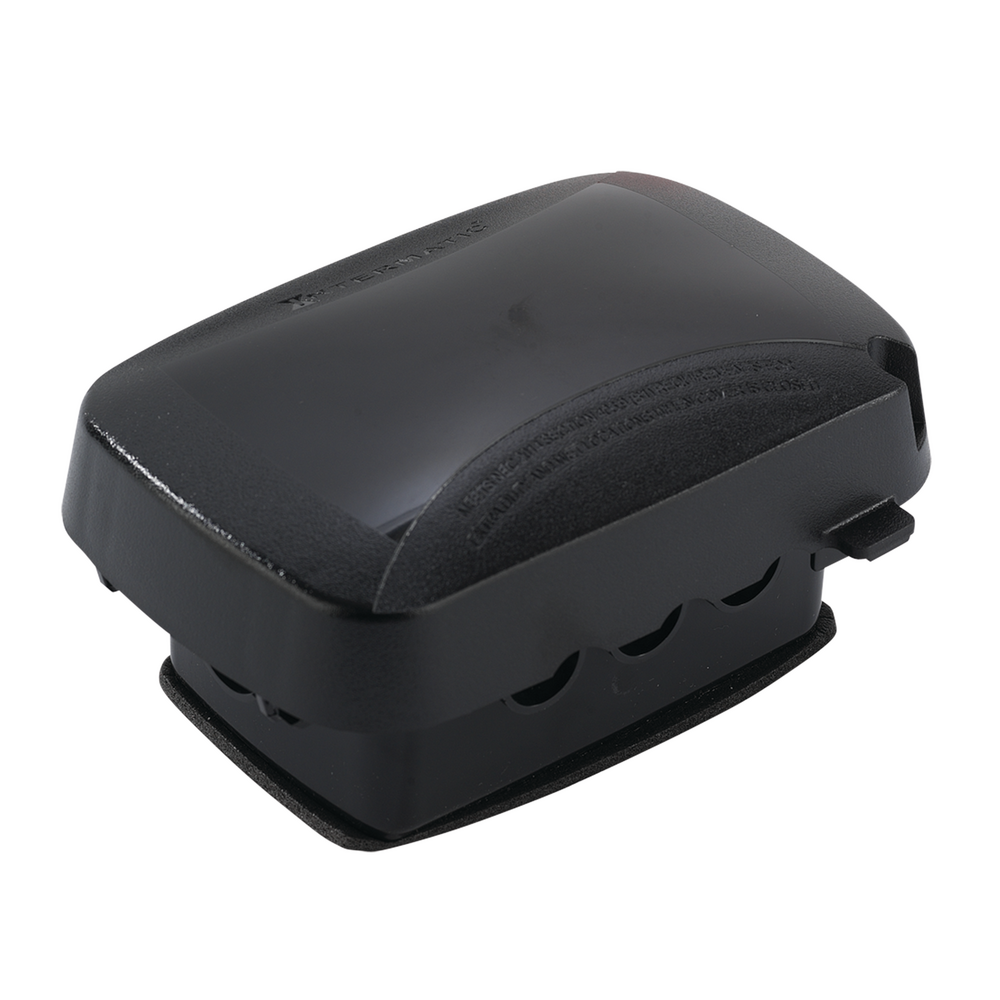

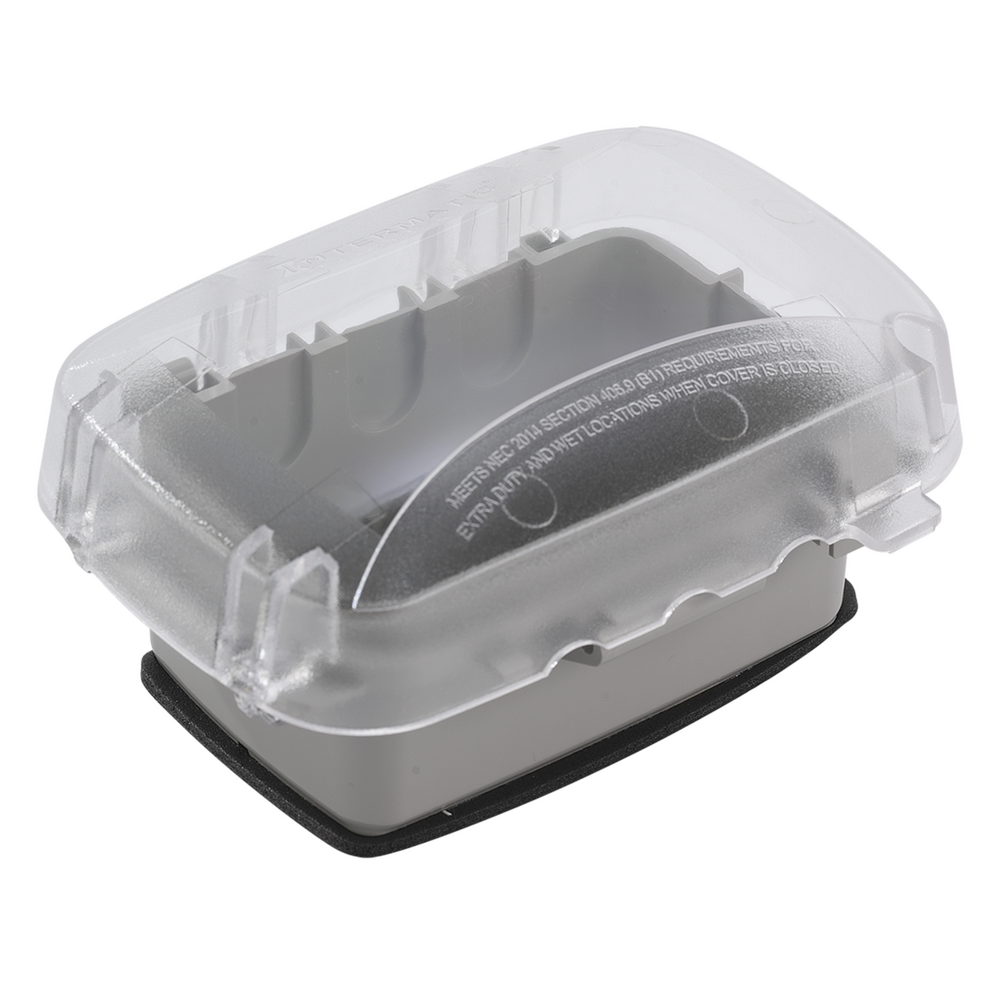

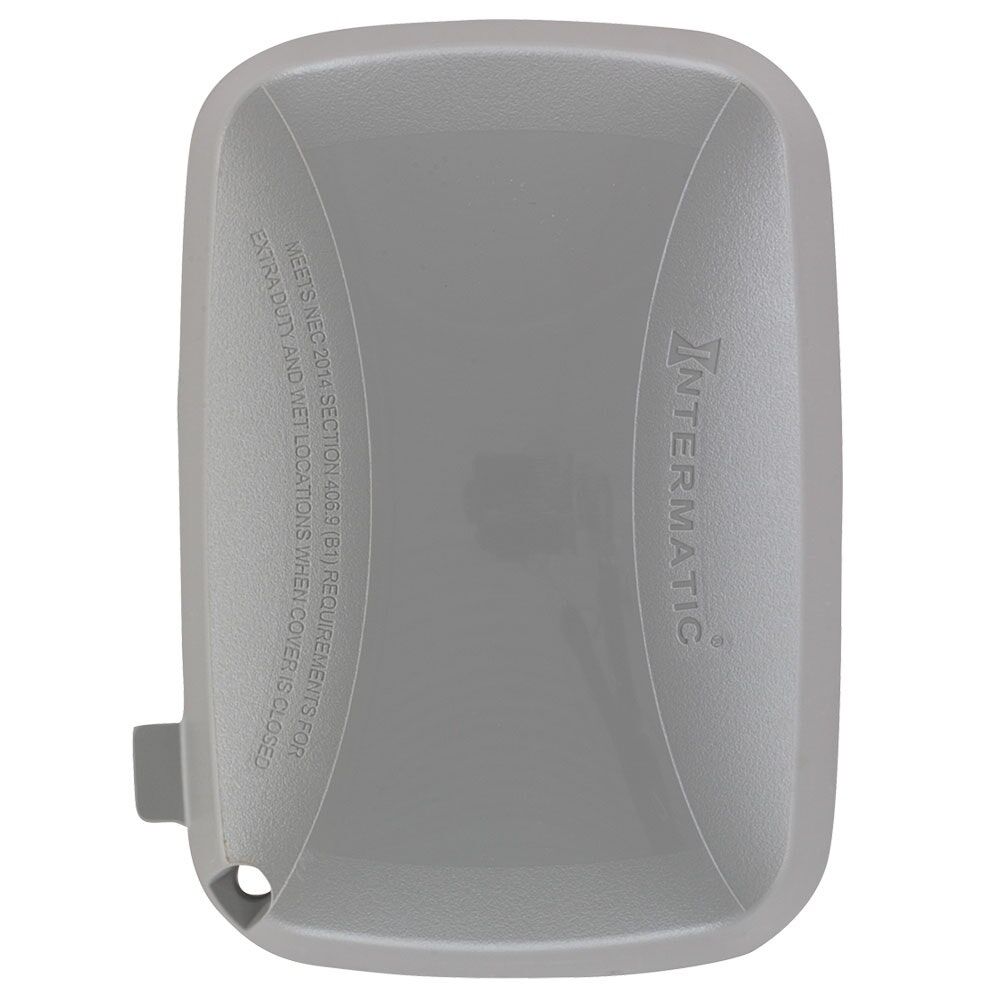

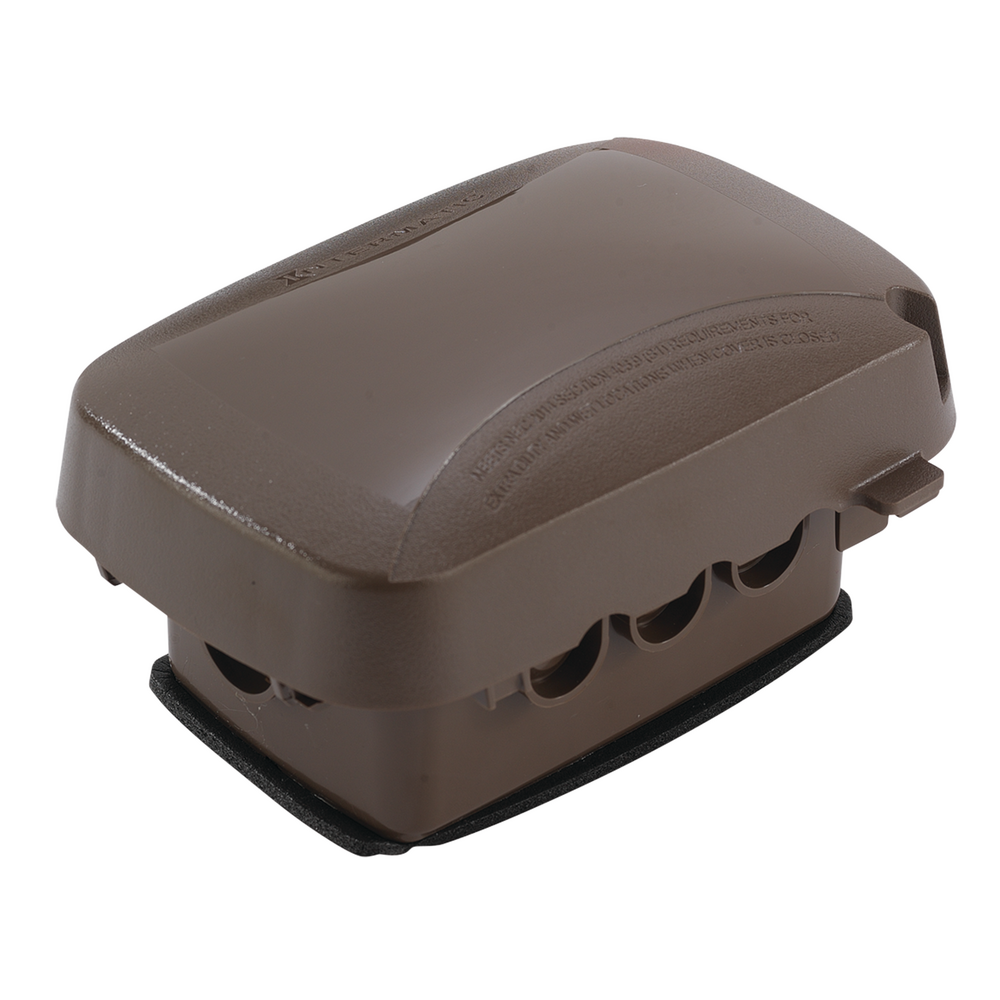

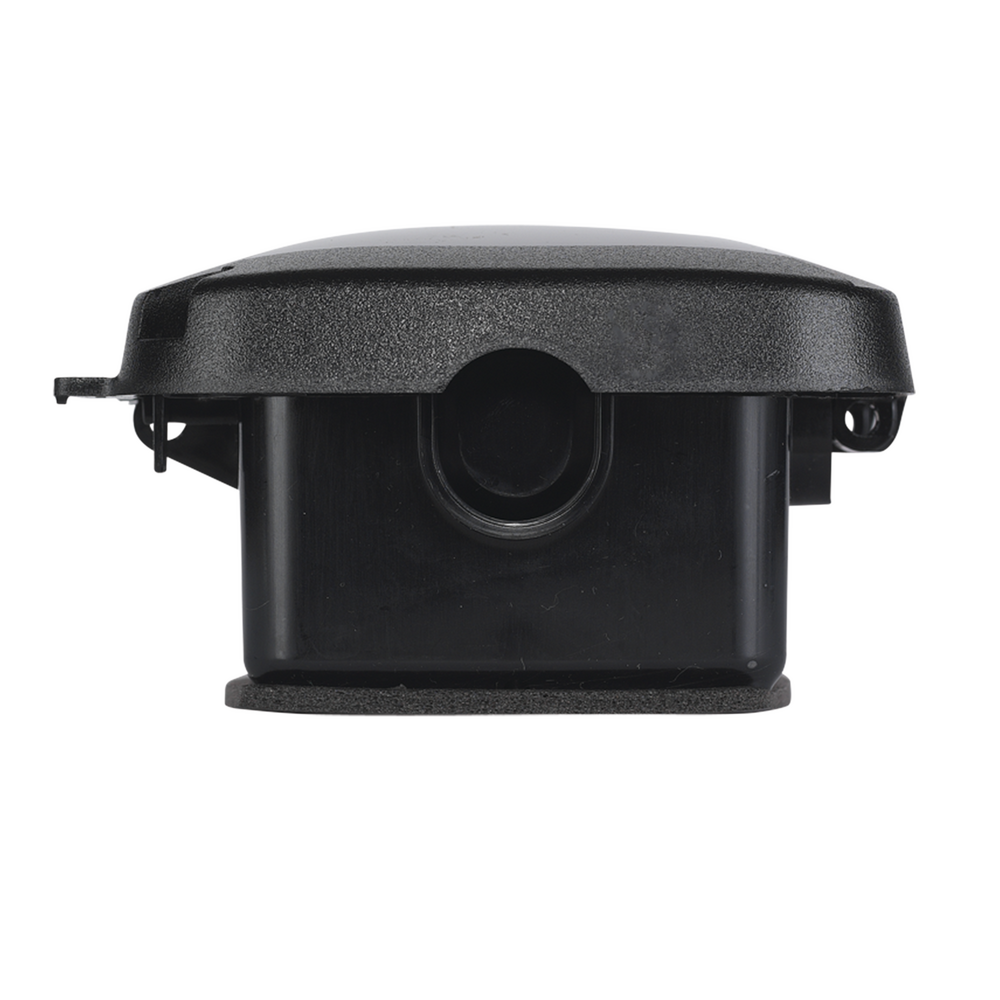

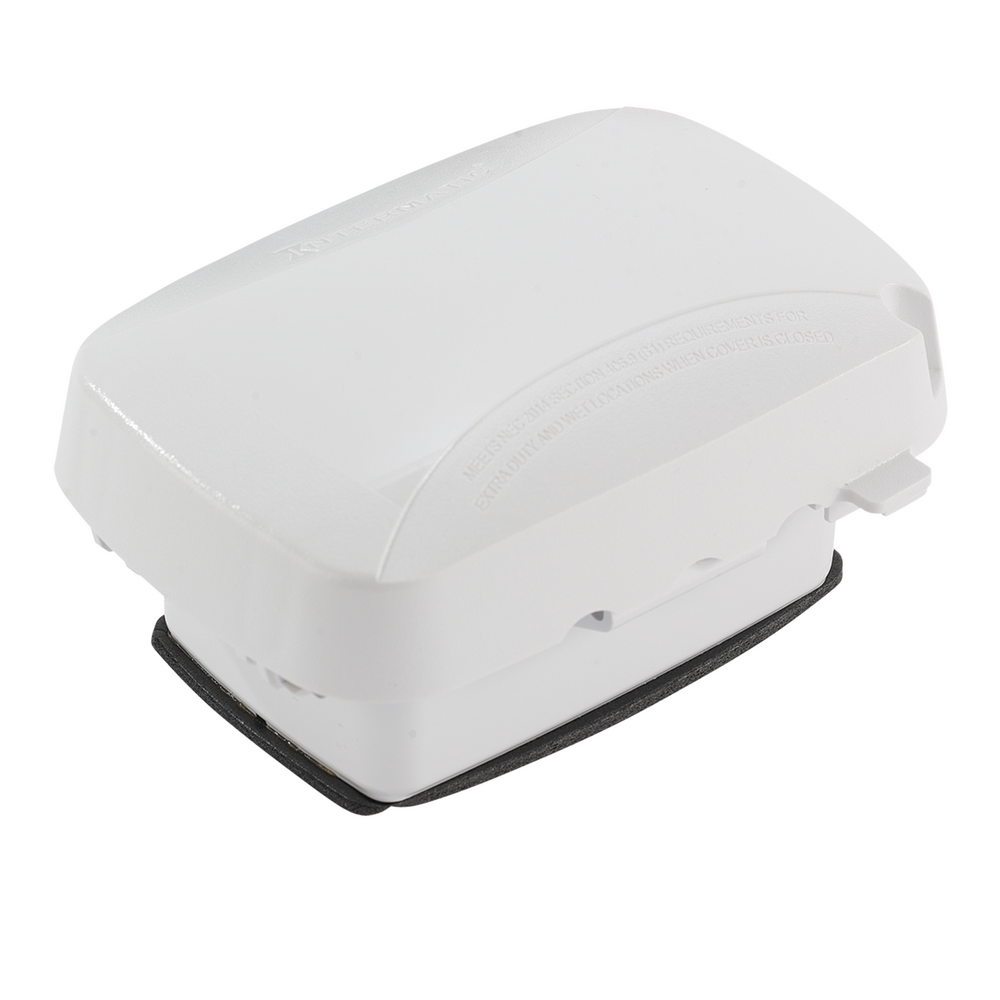

1-Gang Extra-Duty Plastic In-Use Weatherproof Cover | Vertical Mount | WP5100

Protect outdoor single-gang electrical connections in harsh environments with the Extra-Duty Plastic In-Use Weatherproof Cover (WP5100 Series). Featuring a 2.75-inch depth profile, this cover provides continuous physical and environmental protection for plugged-in cords and receptacles. Engineered for rapid installation and versatile application, each unit includes a neoprene gasket, mounting screws, base and cover assembly, and WP17 inserts with 4 knockouts to support diverse receptacle and switch types.

Manufactured from heavy-duty, UV-stabilized polycarbonate, the WP5100 series complies fully with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications, CEC Article 26-702, and holds dual cULus and cCSAus Certifications for Type 3R outdoor enclosures. Engineered to endure severe climate conditions, it satisfies cold-impact testing down to -60°F (-51°C), withstands a 12 lbf. impact test, and utilizes a reinforced hinge pin designed to exceed a 40 lbf. stress test.

Designed for flexible field setup, the unit supports both vertical and horizontal mounting orientations. It features a 1/8" (3 mm) thick neoprene gasket with mounting screw slits and an integrated lockable hasp accepting padlocks up to a 1/4" (6 mm) shank diameter. The interior cavity easily accommodates heavy-duty power cords up to 1x12 AWG or 2x14 AWG.

Key Features:

• Extra-Duty Polycarbonate Construction: UV-stabilized plastic cover, base, and inserts built for high impact resistance (12 lbf.) and long-term weatherproofing.

• Dual Vertical/Horizontal Mounting: Flexible mounting base design allows field installation in either vertical or horizontal orientations.

• Code Compliant & Type 3R Rated: Meets 2020 NEC Article 406.9 (B)(1) Extra-Duty standards, CEC Article 26-702, and carries cULus and cCSAus Type 3R outdoor certifications.

• Extreme Cold & Impact Performance: Cold-impact tested down to -60°F (-51°C) with a reinforced hinge pin rated to exceed a 40 lbf. stress test.

• Versatile Cord & Lock Capacity: Generous 2.75" depth accommodates 1x12 AWG or 2x14 AWG cords and includes a 1/4" shank lockable security hasp.

Technical Specification Table

Product Logic & Ordering Catalog Matrix

Packaging & Included Hardware

• Package Contents:

  • Single-Gang Vertical/Horizontal Cover and Base Assembly.

  • 1/8" (3 mm) Thick Neoprene Sealing Gasket.

  • WP17 Multi-Receptacle Adaptor Inserts.

  • Mounting Screws & Hardware.

• Carton & Shipping Specifications:

  • Unit Carton Dimensions: 2.75" W x 4.75" L x 6.5" H

  • Unit Carton Weight: 0.5 lbs

  • Pallet Quantity: 720 Units
