1-Gang Extra Duty Die-Cast In-Use Weatherproof Cover | Vertical Mount | WP3110MXD

Protect outdoor receptacles and electrical connections in severe environments with the Extra-Duty Die-Cast In-Use Weatherproof Cover (Model WP3110MXD). Engineered with a heavy-duty die-cast aluminum cover and mounting base, this single-gang vertical in-use cover provides robust protection while equipment is plugged in. Designed for easy installation, it comes complete with a neoprene gasket, mounting screws, base, cover assembly, and WP17 inserts to accommodate a variety of standard receptacle configurations.

Built to exceed demanding commercial and industrial standards, the WP3110MXD complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications, as well as CEC Article 26-702. It features cULus Certification for Type 3R outdoor enclosures and meets harsh cold-impact testing down to -60°F (-51°C). With a 12 lbf. impact rating and a reinforced hinge pin tested to withstand over 40 lbf. of stress, this cover ensures long-lasting durability for engine block heaters, commercial refrigeration, and general outdoor receptacle protection.

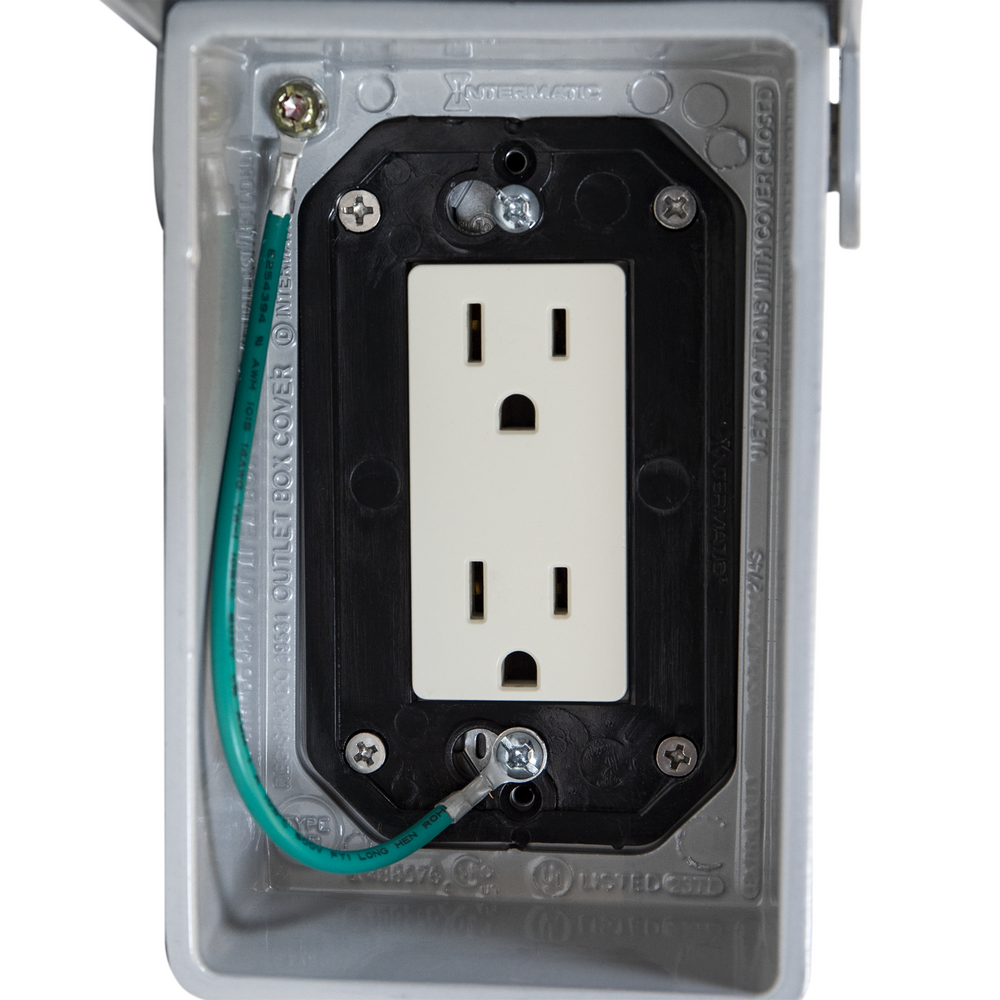

Security and weather sealing are paramount: the unit features a lockable hasp accepting padlocks up to 1/4" (6 mm) shank diameter, a 1/8" (3 mm) thick neoprene gasket with screw slits, and UV-stabilized polycarbonate inserts. The interior accommodates standard cords up to 1x12 AWG with a 2.75-inch enclosure depth.

Key Features:

• Extra-Duty Die-Cast Construction: Built with heavy-duty die-cast aluminum housing and base for superior impact resistance (12 lbf.) and long-term durability.

• Code Compliant & Type 3R Rated: Fully complies with 2020 NEC Article 406.9 (B)(1) Extra-Duty requirements, CEC Article 26-702, and cULus Type 3R wet location standards.

• Extreme Weather Performance: Cold-impact tested down to -60°F (-51°C) and sealed with a 1/8" thick neoprene gasket.

• Reinforced Hinge & Lockable Security: Features a reinforced hinge pin rated to exceed 40 lbf. stress test and an integrated lockable hasp for padlocks up to 1/4" shank diameter.

• Complete Installation Kit: Ships with base/cover assembly, neoprene gasket, mounting screws, and WP17 inserts for multi-receptacle adaptability.

Technical Specification Table

Product Logic & Ordering Matrix

Packaging & Included Hardware

• Package Contents:

  • Single-Gang Vertical Die-Cast Aluminum Cover and Base Assembly.

  • 1/8" (3 mm) Thick Neoprene Sealing Gasket.

  • WP17 Multi-Receptacle Adaptor Inserts.

  • Mounting Screws & Hardware.

• Carton & Shipping Specifications:

  • Unit Carton Dimensions: 3.875" W x 6.375" L x 2.875" H

  • Unit Carton Weight: 1.2 lbs

  • Pallet Quantity: 960 Units
