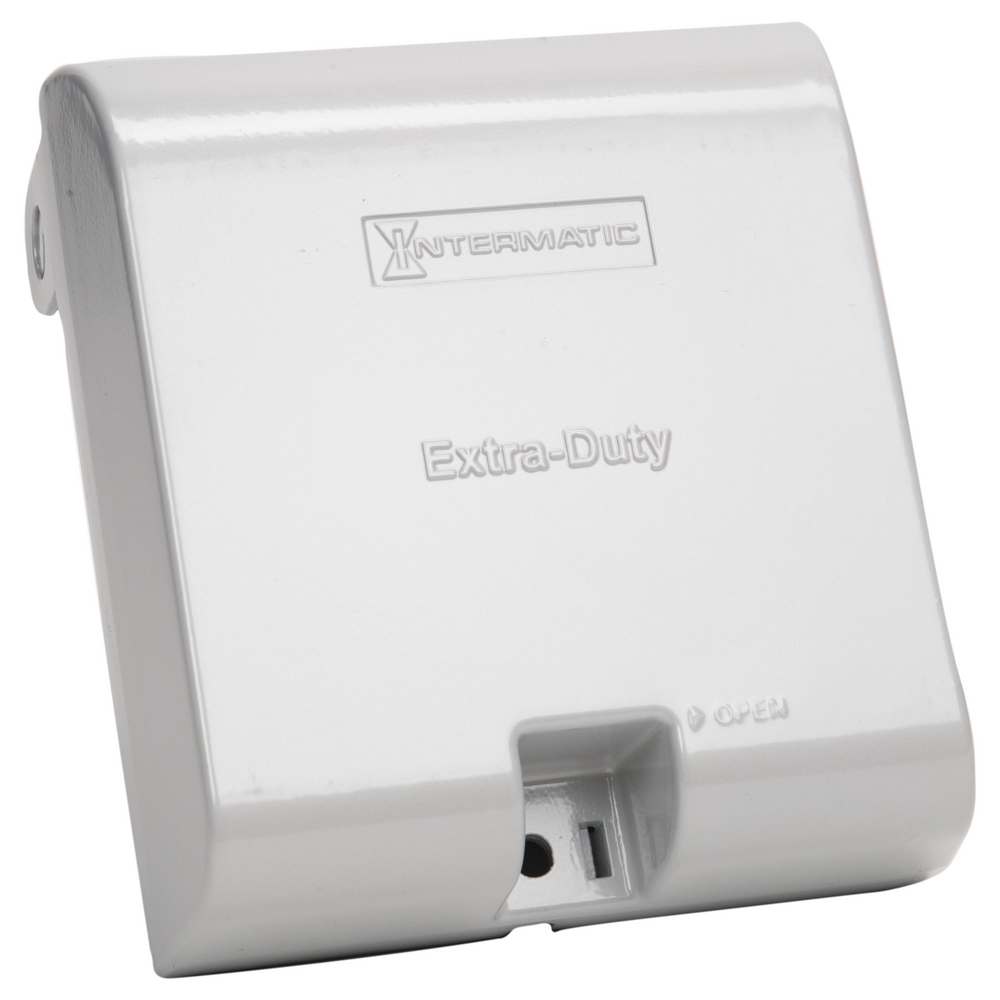

2-Gang Extra Duty Die-Cast In-Use Weatherproof Cover | Vertical Mount | WP1030MXD

Protect dual outdoor electrical connections in demanding commercial and industrial environments with the Extra-Duty Die-Cast In-Use Weatherproof Cover (Model WP1030MXD). Engineered with a heavy-duty die-cast aluminum cover and mounting base, this double-gang vertical in-use cover ensures maximum protection while cords remain plugged in. Designed for seamless installation, it includes a neoprene gasket, mounting screws, base, cover assembly, and WP217 inserts to support a wide range of receptacle configurations.

Built for harsh environmental conditions, the WP1030MXD fully complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications, as well as CEC Article 26-702. It features cULus Certification for Type 3R outdoor metal enclosures and meets extreme cold-impact testing down to -60°F (-51°C). With a 12 lbf. impact rating and a reinforced hinge pin tested to exceed 40 lbf. of stress, this double-gang cover delivers long-lasting security for commercial refrigeration, engine block heaters, and heavy-duty outdoor power requirements.

Weather sealing and security are paramount: the unit includes a lockable hasp accepting padlocks up to 1/4" (6 mm) shank diameter, a 1/8" (3 mm) thick neoprene gasket with mounting screw slits, and UV-stabilized polycarbonate inserts. The deep enclosure accommodates up to two 12 AWG cords (2x12 AWG) with a 3.125-inch depth profile.

Key Features:

• Extra-Duty Double-Gang Construction: Heavy-duty die-cast aluminum housing and base engineered for high impact resistance (12 lbf.) and long-term outdoor protection.

• Code Compliant & Type 3R Rated: Fully complies with 2020 NEC Article 406.9 (B)(1) Extra-Duty requirements, CEC Article 26-702, and cULus Type 3R outdoor metal enclosure standards.

• Extreme Cold-Impact Performance: Verified under cold-impact testing down to -60°F (-51°C) and sealed with a 1/8" thick neoprene gasket.

• Reinforced Hinge & Security Lock Hasp: Features a reinforced hinge pin exceeding a 40 lbf. stress test and an integrated lockable hasp for padlocks up to 1/4" shank diameter.

• Adaptable Double-Gang Kit: Complete with base/cover assembly, neoprene gasket, mounting screws, and WP217 inserts for multi-receptacle versatility.

Technical Specification Table

Product Logic & Ordering Matrix

Packaging & Included Hardware

• Package Contents:

  • Double-Gang Vertical Die-Cast Aluminum Cover and Base Assembly.

  • 1/8" (3 mm) Thick Neoprene Sealing Gasket.

  • WP217 Multi-Receptacle Adaptor Inserts.

  • Mounting Screws & Hardware.

• Carton & Shipping Specifications:

  • Unit Carton Dimensions: 5.75" W x 6.312" L x 3.25" H

  • Unit Carton Weight: 1.35 lbs

  • Pallet Quantity: 400 Units
