LED Wet Location Exit Sign & Emergency Light Combo | 120/277V | WLCEM

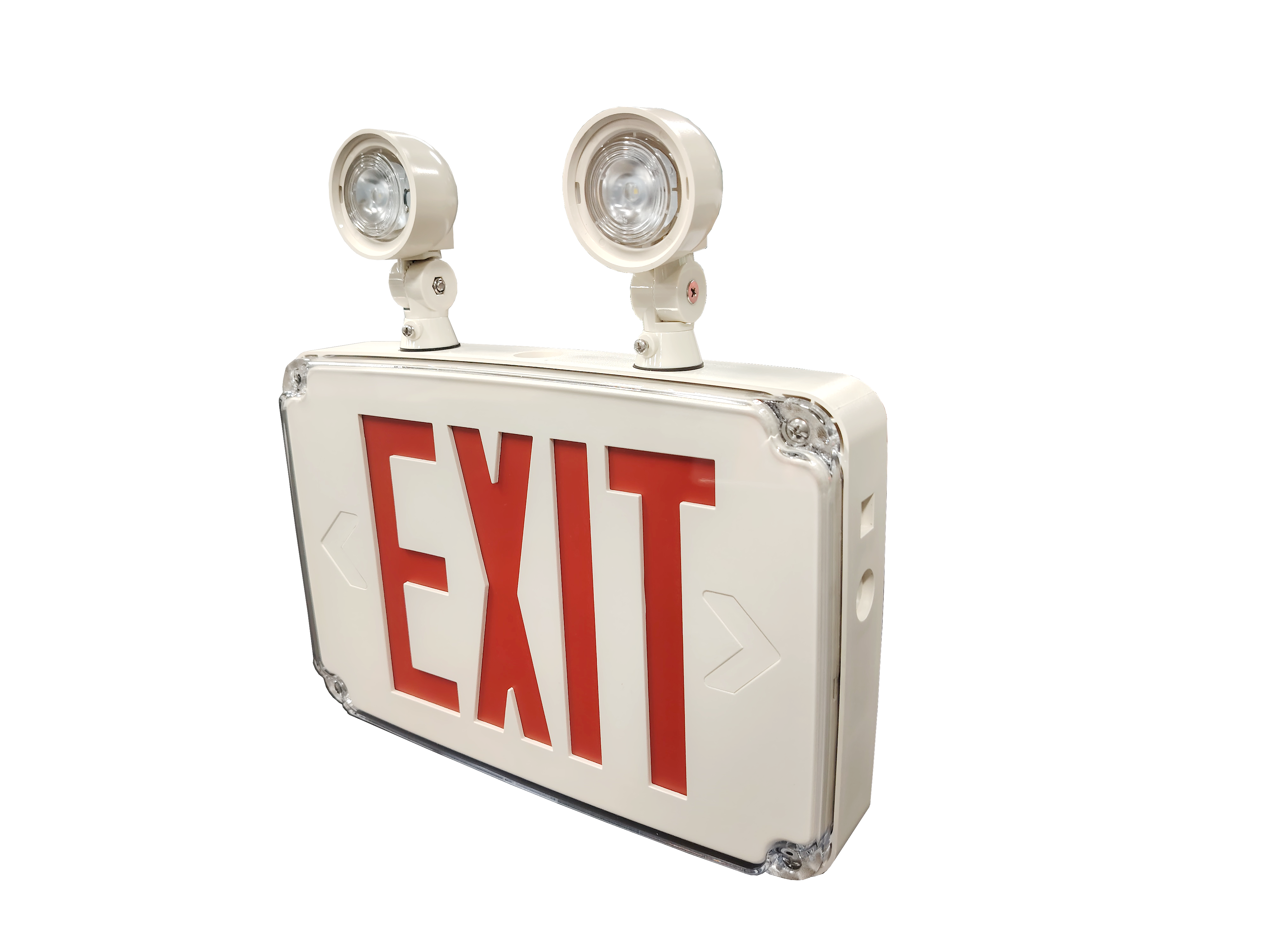

Provide reliable, high-visibility egress marking and emergency lighting in harsh outdoor or washdown environments with the Low Profile Wet Location LED Polycarbonate Combo (WLCEM Series). Featuring an ultra-slim enclosure that measures only 2.5 inches deep, this wet-location unit combines a field-selectable Red or Green LED Exit sign with two high-output 1.0W adjustable LED emergency lamp heads. It is engineered specifically for industrial facilities, commercial perimeters, schools, transit centers, and outdoor walkways subject to moisture, rain, or dust.

Built to withstand severe conditions, the housing is molded from high-impact, 5VA flame-retardant, UV-stabilized polycarbonate in white, black, or gray finishes. A corrosion-resistant clear polycarbonate lens and engineering-grade silicone gasket completely seal the enclosure against environmental ingress. The adjustable LED lamp heads provide up to 18-foot center-to-center spacing along a 3-foot path of egress when installed at a standard 7.5-foot mounting height.

Powered by a dual-voltage 120/277V AC input, the system features a solid-state two-rate charger and a long-life 3.6V maintenance-free Nickel-Cadmium (NiCd) battery. In the event of a power outage, an internal solid-state transfer switch automatically engages emergency power to illuminate both the exit face and external lamp heads for a minimum of 90 minutes. Universal mounting options include a canopy for top/end installations and a backplate knockout pattern for direct wall mounting.

Key Features:

• Ultra-Slim Low-Profile Design: Compact 2.5-inch depth minimizes visual impact and prevents accidental obstruction in narrow corridors or walkways.

• Field-Selectable Exit Color: Ships with field-selectable Red and Green LED illumination for single-SKU stocking convenience.

• Corrosion & Impact Resistant: 5VA flame-retardant UV-stabilized polycarbonate body with a clear high-impact lens and silicone sealing gasket.

• Superior Emergency Spacing: Adjustable 1.0W LED heads deliver up to 18-foot center-to-center coverage at a 7.5-foot mounting height.

• Code Compliant & Certified: Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, and CEC Title 20 regulations for wet locations.

Technical Specification Table

Product Logic & Ordering Catalog Matrix

Packaging & Optional Field Accessories

• Included Hardware:

  • Polycarbonate mounting canopy for top or end mounting.

  • Universal backplate knockout pattern for direct wall mounting.

  • EZ snap-out Chevron directional indicators.

  • Internal 3.6V NiCd battery and charge/test switch assembly.

• Factory Options:

  • CW: High-capacity battery for extreme cold temperature environments (-20°C to 50°C).

  • RC: Extended remote capacity driver output (up to 2.0W for operating additional remote lamp heads).

  • TP: Tamper-proof security hardware to prevent unauthorized access.
