SKU(s) | P-12 |
UPC | 076335626307 |
Max. Voltage | 600v max building wiring; 1000v max in fixtures and signs |
Wire Type | Voltage rating 600v max: 1 #14 with 1 #18; 1 #18 with 1 #22 Voltage rating 300v max: 1 to 3 #10; 2 or 3 #12;2 to 4 #14; 3 to 5 #16; 5 to 9 #18; 2 #20; 3 #22 solid; 6 #22; 1 #8 standard with 2 #14 |
Temperature | 105°C (221°F) Max |
Quantity | 500 Pieces |

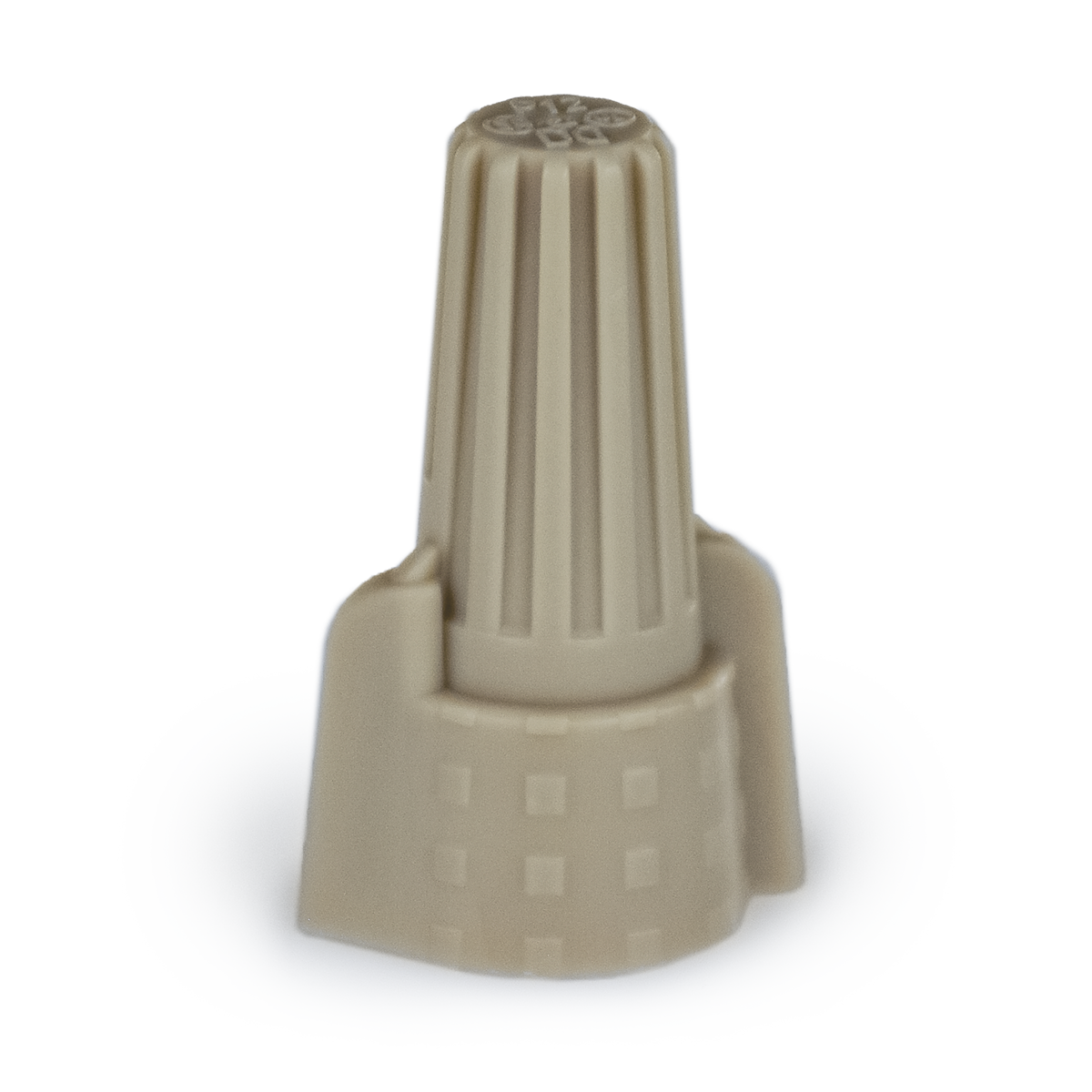

Secure your electrical connections with our Winged Tan Wire Connectors – UL Listed and built for dependable, high-torque performance. Designed for easy handling and faster installations, these twist-on connectors feature an ergonomic winged design for better grip and consistent connections. Ideal for residential and light commercial wiring, each bulk pack includes 500 connectors rated for up to 600V and compatible with a wide range of copper wire combinations.
Upgrade your electrical toolkit with contractor-grade quality. In stock and ready to ship – order now and wire with confidence!
These wire connectors have a high temperature and voltage rating that makes them perfect for any job, big or small. They are rated up to 600v for building wiring and up to 1,000v for fixtures and signs.
Providing a safe connection between multiple types of wires is the reason you're shopping for high quality wire connectors. The knowledgeable electrical contractor buys from us because of the superior quality of our products! Our pressure type wire connectors are UL and CSA Listed, so you can be sure that your wirings are safe and secure.
$15.60 /each
SKU(s) | P-4 |
UPC | 076335626154 |
Max. Voltage | 600v max building wiring; 1000v max in fixtures and signs |
Wire Range | 2 #12; 2 #12 with 1 to 2 #16 or #18; 1 #12 with 3 or 4 #18; 2 #12 with 1 #18; 2 or 3 #14; 1 #14with 1 to 3 #16; 1 #14 with 1 to 4 #18 or #20; 1 #14 with1 #16 with 1 to 3 #20; 2 #14 with 1 #16; 2 #14 with 1 #16 with 1 #18; 2 #14 with 1 #16 with 1 or 2 #20; 1 #14 with 1 #18 with 1 to 3 #20 |
Temperature | 105°C (221°F) Max |
Quantity | 500 Pieces |
$18.60 /each
SKU(s) | P-6 |
UPC | 076335626208 |
Max. Voltage | 600V max building wiring |
Wire Range | 6 #18; 2 to 4 #14; 2 to 3 #12; 2 #10; 3 #12; 1 #12 with 2 #14; 2 #12 with 1 #14; 1 310 with 2 #14; 1 #10 with 1 #12; 3 #14 with 1 #18 or 1 #16; 1 #12 + 2; 4 #16; 2 #12 with 2 #16; 2 #12 with 2 #18 or #16; 1 #10 solid + 1; 4 #16 solid; 1 #10 + 1; 3 #16; 2 #10 with 1 #16 |
Temperature | 105°C (221°F) |
Quantity | 500 Pieces |
