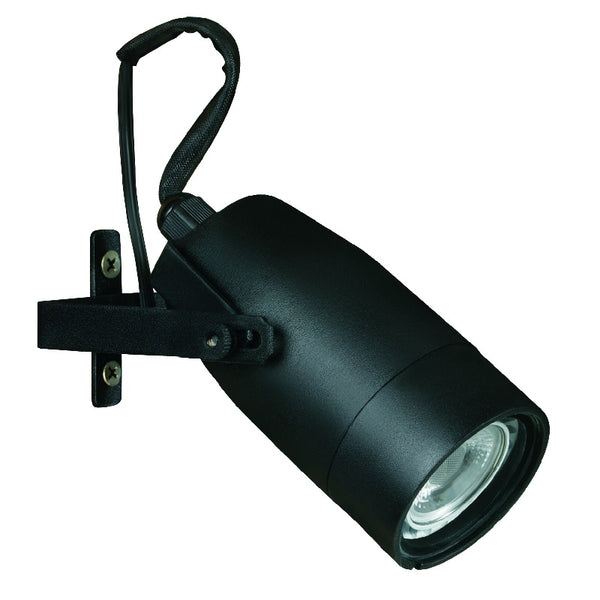

Adjustable Down Light | Yoke Bracket Bullet Fixture | 12V MR-16
| SKU(s) | CL-100-BK |
| Color | Black | Bronze | White |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black, Bronze & White |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/4" |
| Length | 2-1/4" |
| Height | 5" |
| Diameter | 2-1/4" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

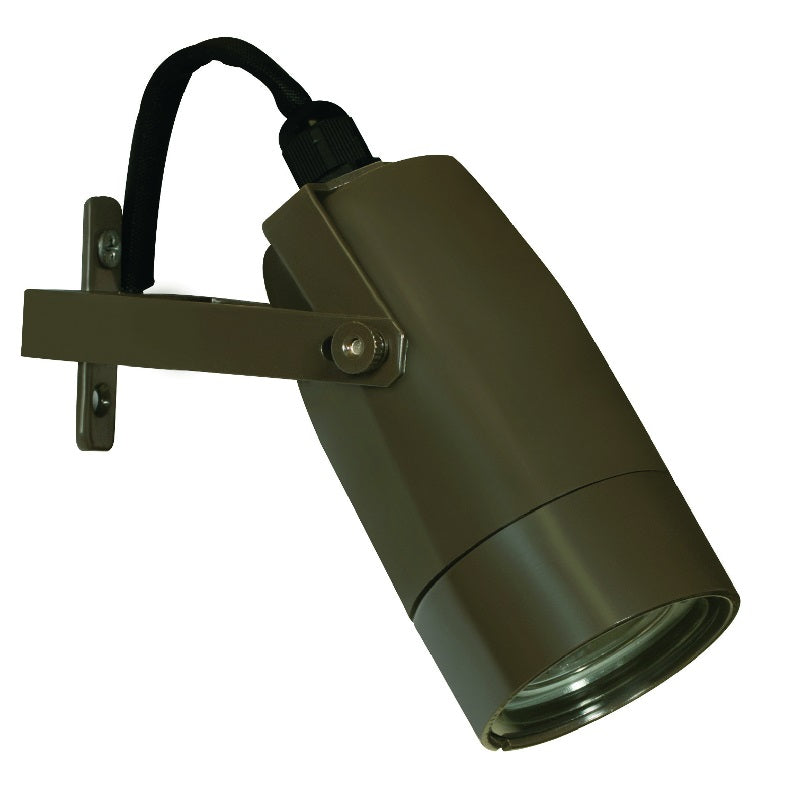

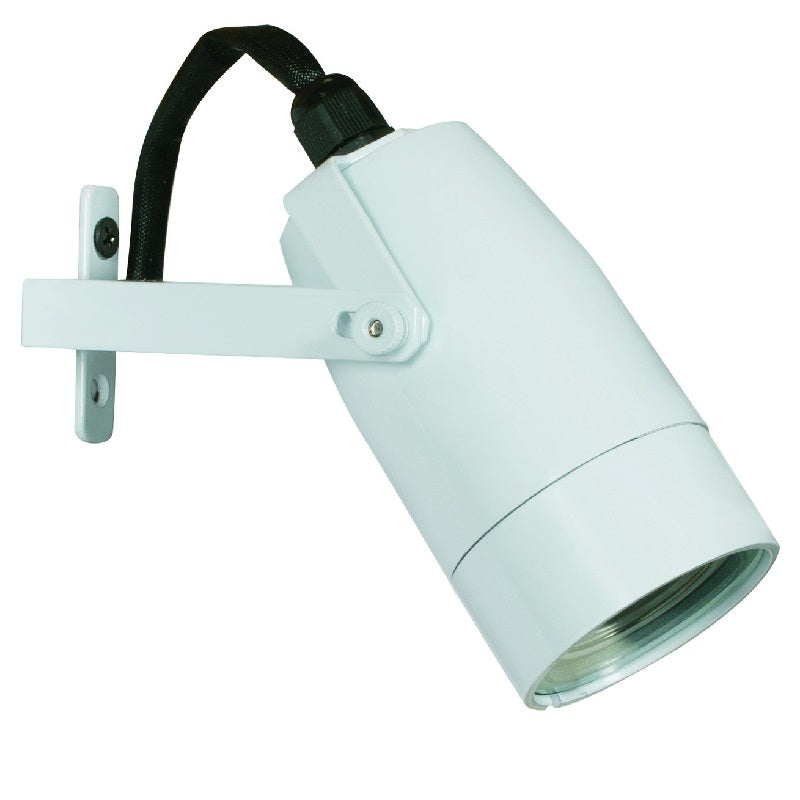

The Adjustable Down Light is a high-performance architectural-grade outdoor fixture designed to deliver precise and versatile illumination for landscapes, walls, signage, and architectural accents. Crafted from die-cast copper-free aluminum with a choice of black, bronze, or white finishes, this bullet-style down light combines strength, durability, and style for long-term outdoor use.
The fixture is equipped with a clear, tempered, and heat-resistant flat glass lens to protect against environmental elements while providing crisp illumination. It features a top-grade loose bi-pin socket with a spring-loaded design, compatible with 12V MR-16 lamps up to 35W (halogen). It also supports LED lamps, operating within a voltage range of 9–17V for energy-efficient performance.
Prewired with a 3-foot 18-2 SPT1-W direct burial cord, the Adjustable Down Light offers reliable connections. Optional universal connectors (CX-839) or silicone-filled wire nuts (CX-854) are available separately for weatherproof wiring solutions.
The die-cast aluminum yoke with mounting bracket provides full adjustability for both horizontal and vertical alignment, ensuring precise light positioning. Designed for outdoor use, this fixture requires a remote 12V transformer (sold separately).
Backed by a five-year manufacturer’s warranty on the housing, the Adjustable Down Light is a durable and versatile choice for professional-grade landscape and architectural lighting projects.
$205.25 /each
| SKU(s) | CL-720-T-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$100.85 /each
| SKU(s) | CL-302-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 15-3/4" |
| Diameter | 3-7/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$146.75 /each
| SKU(s) | CL-723-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze | Silver |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze & Silver |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$158.45 /each
| SKU(s) | CL-333-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 5-1/2" |
| Length | 5-1/2" |
| Height | 8" |
| Diameter | 5-1/2" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
