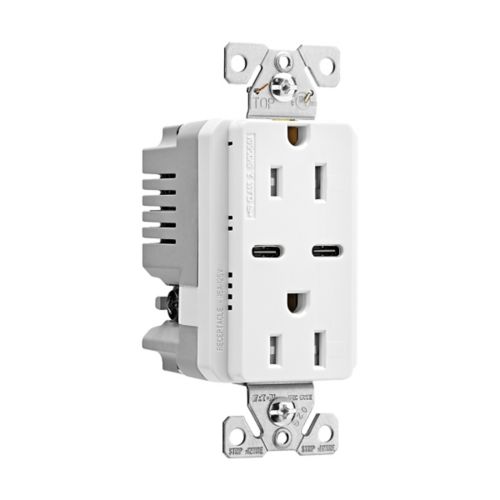

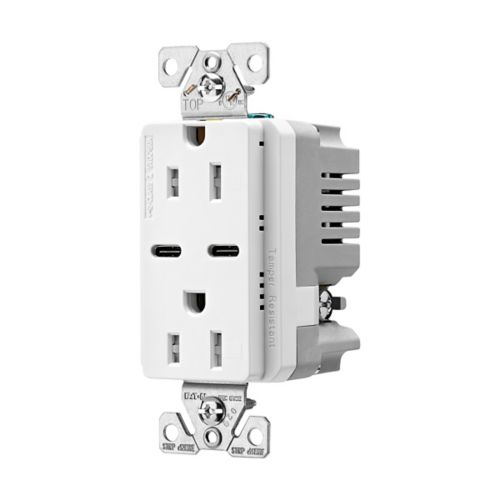

15 Amp Decorator Duplex Receptacle + 5Amp Duplex USB Type-C | Tamper Resistant | 125V | 5-15R | Residential Grade
- SKU: TRUSBC15W-BOX
- UPC: 032664753305
- Category: Decorator Receptacles, Eaton
Certs:
The Eaton TRUSBC15W-BOX Combination USB Type-C Charger and Duplex Receptacle provides fast, dependable charging in a compact, decorator-style design ideal for modern homes and commercial environments. Featuring a built-in USB Type-C port with 5A fast charging output, this device delivers efficient power for smartphones, tablets, wearables, and USB-C electronics—eliminating the need for bulky adapters.
Engineered with tamper-resistant shutters and a rugged thermoplastic body, the TRUSBC15W-BOX enhances safety and durability in kitchens, bedrooms, offices, hotels, and high-traffic areas. Its 15A, 125V duplex receptacle (NEMA 5-15R) allows users to power appliances while simultaneously charging USB-C devices.
Installation is quick and reliable using screw-terminal wiring compatible with #12–14 AWG conductors. The flush-mount decorator design delivers a clean, contemporary appearance and fits seamlessly into standard wall boxes. Constructed with brass electrical contacts for long-lasting performance, this combination unit is cULus Listed and NOM certified, ensuring compliance with safety standards in residential and commercial applications.
⚙️ Key Features
-
Integrated USB Type-C port with 5A fast charging
-
15A, 125V duplex receptacle (NEMA 5-15R)
-
Tamper-resistant safety shutters
-
Durable thermoplastic construction
-
Brass contacts for enhanced conductivity
-
Decorator-style design for a modern, clean look
-
Screw-terminal wiring for #12–14 AWG conductors
-
Two-pole, three-wire grounding receptacle
-
Flush/surface mounting compatibility
-
Available in White, Almond, and Light Almond
-
cULus Listed and NOM certified
-
Packaged in a retail box
📐 Technical Specifications Table
| Specification | Details |
|---|---|
| Product Name | Eaton combination USB charger with duplex receptacle |
| Catalog Number | TRUSBC15W-BOX |
| USB Type | Type-C |
| USB Output | 5A charging |
| Receptacle Rating | 15A, 125V |
| Contact Material | Brass |
| Material | Thermoplastic |
| Features | Tamper resistant |
| Wiring Method | Screw terminals |
| Allowable Wire Size | #12–14 AWG |
| Number of Wires | 3 (three-wire) |
| Number of Poles | Two-pole |
| NEMA Configuration | 5-15R |
| Torque Rating | 14 lbf-in |
| Mounting | Flush / Surface |
| Style | Decorator |
| Color Options | White, Almond, Light Almond |
| Certifications | cULus Listed, NOM |
| Length | 1.4 in |
| Height | 4.19 in |
| Width | 1.3 in |
| Weight | 0.285 lb |
| Packaging | Retail box |
🏭 Ideal Applications
-
Residential charging stations
-
Kitchens, bedrooms, living rooms
-
Commercial offices and conference rooms
-
Hotels, resorts, and hospitality spaces
-
Schools, colleges, and administrative buildings
-
Retail stores and customer service areas
-
Airports, transportation hubs, and lounges
