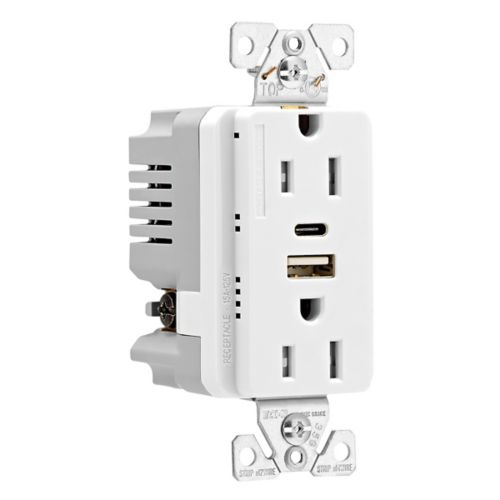

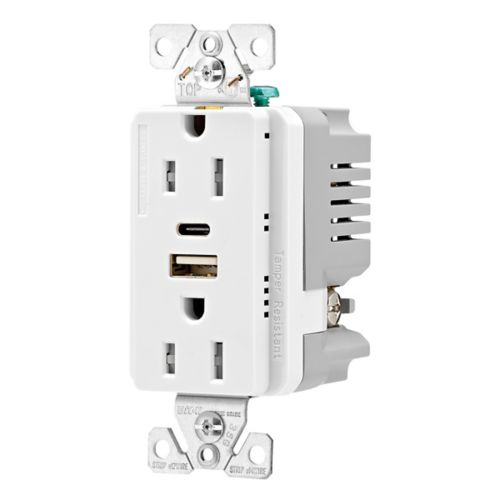

15 Amp Decorator Receptacle with 5.0 Amp Dual USB Type A/C Charger | 125V | White
- SKU: TRUSBAC15W-BOX
- UPC: 032664755828
- Category: Decorator Receptacles, Eaton
Certs:
The Eaton TRUSBAC15W-BOX Combination USB Charger and Duplex Receptacle delivers modern charging convenience with upgraded performance and safety. Designed with integrated USB Type-A and USB Type-C ports, this device provides fast, reliable charging for smartphones, tablets, earbuds, gaming devices, and other portable electronics—without requiring bulky adapters.
Engineered for long-term durability, the TRUSBAC15W features tamper-resistant shutters, ensuring enhanced protection in homes, offices, hotels, education facilities, and commercial environments. With 5A total USB charging output and a 15A, 125V receptacle, it supports simultaneous device charging and appliance usage.
Constructed from high-quality thermoplastic with solid brass electrical contacts, this combination charger is built for dependable performance. Installation is simple with screw-terminal wiring compatible with #12–14 AWG conductors. Its sleek decorator-style design provides a clean, modern look that integrates seamlessly into any standard wall box using a flush-mounted configuration.
Certified cULus Listed and NOM compliant, the Eaton TRUSBAC15W-BOX meets strict safety and electrical standards—making it a superior choice for tech-ready installations.
⚙️ Key Features
-
Dual USB Type-A + USB Type-C charging ports
-
5A fast charging capability
-
Integrated tamper-resistant safety shutters
-
15A, 125V duplex receptacle for power + charging combination
-
Decorator (Decora) style for a modern, clean appearance
-
Brass contacts for enhanced conductivity and durability
-
Thermoplastic body for long-lasting performance
-
Screw-terminal wiring supports #12–14 AWG conductors
-
Two-pole, three-wire, grounding receptacle
-
Designed for flush mounting in standard electrical boxes
-
NEMA 5-15R configuration
-
cULus Listed and NOM certified
-
Packaged in a retail box
🧾 Technical Specifications Table
| Specification | Details |
|---|---|
| Product Name | Eaton combination USB charger with duplex receptacle |
| Catalog Number | TRUSBAC15W-BOX |
| UPC | 032664755828 |
| Type | USB Type A & USB Type C Charger + Duplex Receptacle |
| USB Output | 5A charging |
| Receptacle Rating | 15A, 125V |
| Material | Thermoplastic |
| Contact Material | Brass |
| Features | Tamper resistant |
| Wiring Method | Screw terminals |
| Compatible Wire Size | #12–14 AWG |
| NEMA Configuration | 5-15R |
| Mounting | Flush |
| Number of Poles | Two-pole |
| Number of Wires | Three-wire |
| Color | White |
| Style | Decorator |
| Torque Rating | 14 lbf-inch |
| Receptacle Type | Two-pole, three-wire, grounding |
| Certifications | cULus Listed, NOM |
| Packaging | Retail Box |
| Length | 1.4 in |
| Height | 4.19 in |
| Width | 1.3 in |
| Weight | 0.285 lb |
🏭 Ideal Applications
-
Homes: kitchens, living rooms, bedrooms, charging stations
-
Commercial offices and workspaces
-
Hotels, resorts, and guest rooms
-
Schools, libraries, and colleges
-
Retail stores and point-of-sale areas
-
Airports, waiting areas, and hospitality lounges
-
Any location requiring modern, safe USB charging
