15 Amp Tamper-Resistant GFCI Outlet | 125V Slim Self-Test Receptacle | White
| SKU(s) | TRGF15W |
| UPC | 032664013041 |
| Color | White |
| Width | 1.69 in |
| Length | 1.03 in |
| Height | 4.19 in |
| Wire | #14-10 AWG |
 View Spec Sheet
|

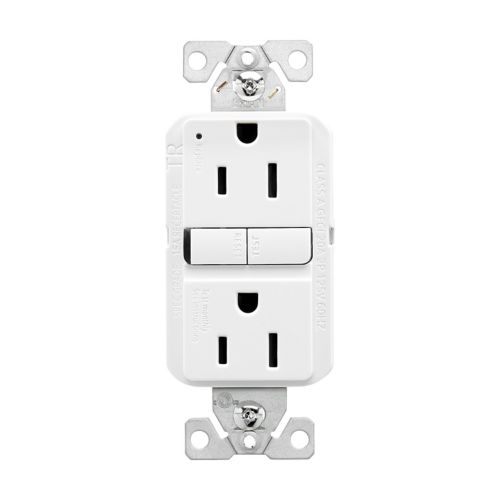

The Eaton TRGF15W Tamper-Resistant Slim GFCI Receptacle is designed to provide safe and reliable ground fault protection in residential and light commercial applications. This 15A, 125V self-testing GFCI outlet features a space-saving slim profile that fits easily into standard electrical boxes, making installation quick and efficient. It includes tamper-resistant shutters for child safety, ensuring compliance with NEC requirements for outlets in residential spaces.
Constructed with a durable white thermoplastic face and engineered for long-lasting performance, this GFCI device is ideal for use in kitchens, bathrooms, garages, and other locations where GFCI protection is required. With both back and side wiring options, the TRGF15W offers installation flexibility. It also includes a self-test function to ensure ongoing protection, automatically testing itself to confirm proper operation.
Technical Specifications:
Catalog Number: TRGF15W
Amperage Rating: 15A
Voltage Rating: 125V
Circuit Interrupter Type: GFCI (Ground Fault Circuit Interrupter)
Design: Slim Profile
Color: White
Wiring Method: Back and Side Wire
Allowable Wire Size: #14–10 AWG
Torque Rating: 16 lbf-in
NEMA Configuration: 5-15R
Certifications: cULus Listed, NOM Certified
Special Features: Tamper-Resistant, Self-Test Function
Dimensions: 4.19 in (H) x 1.69 in (W) x 1.03 in (D)
Weight: 3.8 lb (packaged)
Packaging Type: ED Box
$1.15 /each
| SKU(s) | 5131W-BOX |
| UPC | 032664151507 |
| Color | White |
| Voltage | 125V |
| Width | 2.75 in |
| Length | 0.06 in |
| Height | 4.5 in |
| Wire | #14-10 AWG |
| Certs |
|
|
View Spec Sheet
|
$13.00 /each
| SKU(s) | 93402-BOX1 |
| UPC | 032664747335 |
| Color | Stainless steel |
| Width | 4.56 in |
| Length | 0.032 in |
| Height | 4.5 in |
| Certs |
|
|
View Spec Sheet
|
$1.05 /each
| SKU(s) | PJ26W |
| UPC | 032664751448 |
| Color | White |
| Width | 3.2 Inch |
| Height | 4.87 Inch |
| Certs |
|
|
View Spec Sheet
|
$9.75 /each
| SKU(s) | PJS264W |
| UPC | 032664751011 |
| Color | White |
| Width | 8.56 Inch |
| Length | 0.08 Inch |
| Height | 4.87 Inch |
| Certs |
|
|
View Spec Sheet
|
