15 Amp Duplex Receptacle GFCI Self-Test | Tamper Resistant | 125V | Residential Grade

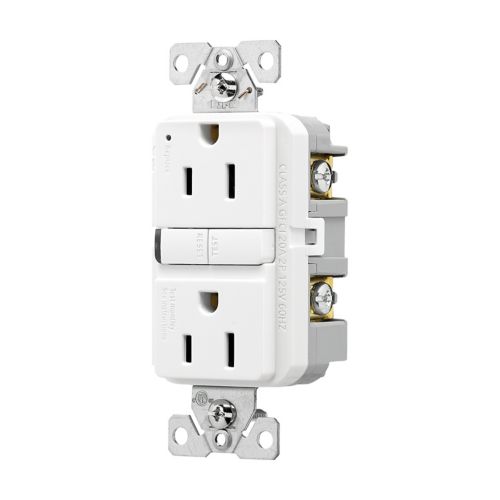

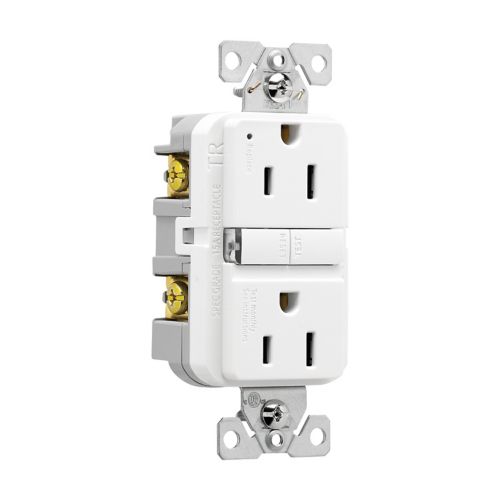

The Eaton TRGF15W is a 15-amp, 125-volt tamper-resistant self-test GFCI receptacle designed for superior electrical safety and reliability. Featuring a slim, space-saving design, this outlet provides dependable ground-fault protection for residential, commercial, and industrial applications while maintaining an attractive, low-profile appearance.
Built with Eaton’s advanced self-test technology, the TRGF15W automatically monitors its own functionality to ensure ongoing protection from electric shock hazards. The tamper-resistant shutters add an additional layer of safety by preventing foreign objects from being inserted into the receptacle — a must-have for homes, schools, and healthcare environments.
Engineered for durability and ease of installation, the TRGF15W supports both back and side wiring methods and accommodates #14–10 AWG conductors. Certified by UL, cULus, and NOM, this GFCI outlet delivers unmatched quality, safety, and peace of mind.
Self-Test Function: Continuously monitors internal components to ensure GFCI protection is active.
Tamper-Resistant Design: Built-in safety shutters prevent unwanted object insertion.
Slim, Low-Profile Construction: Saves space in electrical boxes and allows easy installation.
Dual Wiring Options: Supports both back and side wiring for flexible installations.
High Durability: Made with robust thermoplastic materials for long-lasting performance.
Safety Certified: UL, cULus, and NOM listed for residential and commercial use.
Standard NEMA 5-15R Configuration: Compatible with standard plugs and faceplates.
Easy Installation: Designed for quick and secure setup with a 16 lbf-in torque rating.
| Specification | Details |
|---|---|
| Product Name | Eaton Slim GFCI Receptacle |
| Catalog Number | TRGF15W |
| UPC | 032664013041 |
| Type | Self-Test |
| Special Features | Slim Design |
| Circuit Interrupter Type | GFCI |
| Amperage Rating | 15A |
| Voltage Rating | 125V |
| Color | White |
| NEMA Configuration | 5-15R |
| Wiring Method | Back and Side Wire |
| Allowable Wire Size | #14–10 AWG |
| Torque Rating | 16 lbf-in |
| Product Height | 4.19 in |
| Product Width | 1.69 in |
| Product Depth | 1.03 in |
| Product Weight | 3.8 lb |
| Certifications | UL Listed, cULus Listed, NOM |
| Compliances | RoHS Compliant |
| Warranty | Refer to manufacturer’s warranty document |
The Eaton TRGF15W GFCI Outlet is ideal for:
Residential kitchens, bathrooms, and laundry rooms
Outdoor receptacles (with appropriate cover)
Commercial kitchens and food service areas
Workshops, garages, and utility rooms
Healthcare and educational facilities
Provides continuous protection from ground faults and electrical shocks
Reduces installation time with slim design and universal wiring options
Meets modern electrical code requirements for safety
Tamper-resistant for child safety
Durable and visually clean design complements any wall finish
UL Listed
cULus Listed
NOM Certified
RoHS Compliant
| SKU(s) | TRGF15W |
| UPC | 032664013041 |
| Color | White |
| Voltage | 125V |
| Width | 1.69 in |
| Length | 1.03 in |
| Height | 4.19 in |
| Wire | #14-10 AWG |
| Certs |
|
