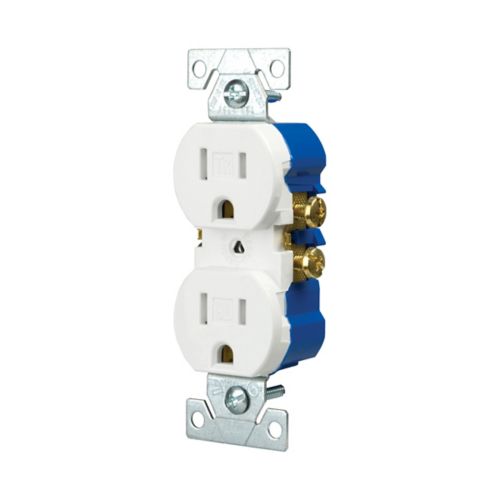

Eaton TR270W 15A white residential duplex receptacle, tamper-resistant, side-and-push wiring, PVC body with impact-resistant thermoplastic face
Eaton TR270W 15A white residential duplex receptacle, tamper-resistant, side-and-push wiring, PVC body with impact-resistant thermoplastic face
Eaton TR270W 15A white residential duplex receptacle, tamper-resistant, side-and-push wiring, PVC body with impact-resistant thermoplastic face
Eaton TR270W 15A white residential duplex receptacle, tamper-resistant, side-and-push wiring, PVC body with impact-resistant thermoplastic face
Eaton TR270W 15A white residential duplex receptacle, tamper-resistant, side-and-push wiring, PVC body with impact-resistant thermoplastic face
Eaton TR270W 15A white residential duplex receptacle, tamper-resistant, side-and-push wiring, PVC body with impact-resistant thermoplastic face
Eaton TR270W 15A white residential duplex receptacle, tamper-resistant, side-and-push wiring, PVC body with impact-resistant thermoplastic face

Eaton 15 Amp Duplex Receptacle | Tamper Resistant | 125V | 5-15R | Eaton TR270W

$1.45 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

UL Listed RoHS Certified

The Eaton TR270W is a residential-grade duplex receptacle designed for safe and reliable electrical connections in both commercial and residential environments. Rated at 15A, 125V, this receptacle supports side-and-push wiring for flexible installation and features a tamper-resistant design to enhance safety in households and public spaces.

Constructed with an impact-resistant thermoplastic face and PVC body, the TR270W ensures durability, longevity, and protection against everyday wear. Its flush mount design allows a sleek, professional finish, ideal for new installations or replacements. Certified by cULus and NOM, this receptacle meets stringent safety standards for peace of mind.

Key Features

  • Residential and commercial grade duplex receptacle

  • 15A, 125V capacity

  • Tamper-resistant for added safety

  • Side-and-push wiring for versatile installation

  • Flush mount design for a clean finish

  • Impact-resistant thermoplastic face with PVC body

  • Brass contacts for reliable electrical performance

  • Supports #14-10 AWG (Copper or Copper-Clad Aluminum)

  • Standard NEMA 5-15R configuration

  • Certified cULus Listed and NOM

  • Core pack packaging for convenient bulk installations

🧾 Technical Specifications

Specification Details
Product Name Eaton residential grade duplex receptacle
Catalog Number TR270W
UPC 032664666537
Amperage Rating 15A
Voltage Rating 125V
Device Grade Standard
Wiring Method Side and push
Mounting Method Flush
Number of Poles Two-pole
Style Type Standard
Material PVC body, impact-resistant thermoplastic face
Contact Material Brass
NEMA Configuration 5-15R
Allowable Wire Size #14-10 AWG (Copper or Copper-Clad Aluminum)
Torque Rating 14 lbf-inch
Design Type Straight blade
Receptacle Type Duplex
Color White
Packaging Type Core pack
Certifications cULus Listed, NOM

🏭 Typical Applications

  • Residential homes and apartments

  • Commercial offices, schools, and retail spaces

  • Kitchens, bedrooms, living areas, and common spaces

  • New construction or replacement projects
