LED High-Output Sport Light | 97,500 Lumens Max | CCT Selectable | M-Series

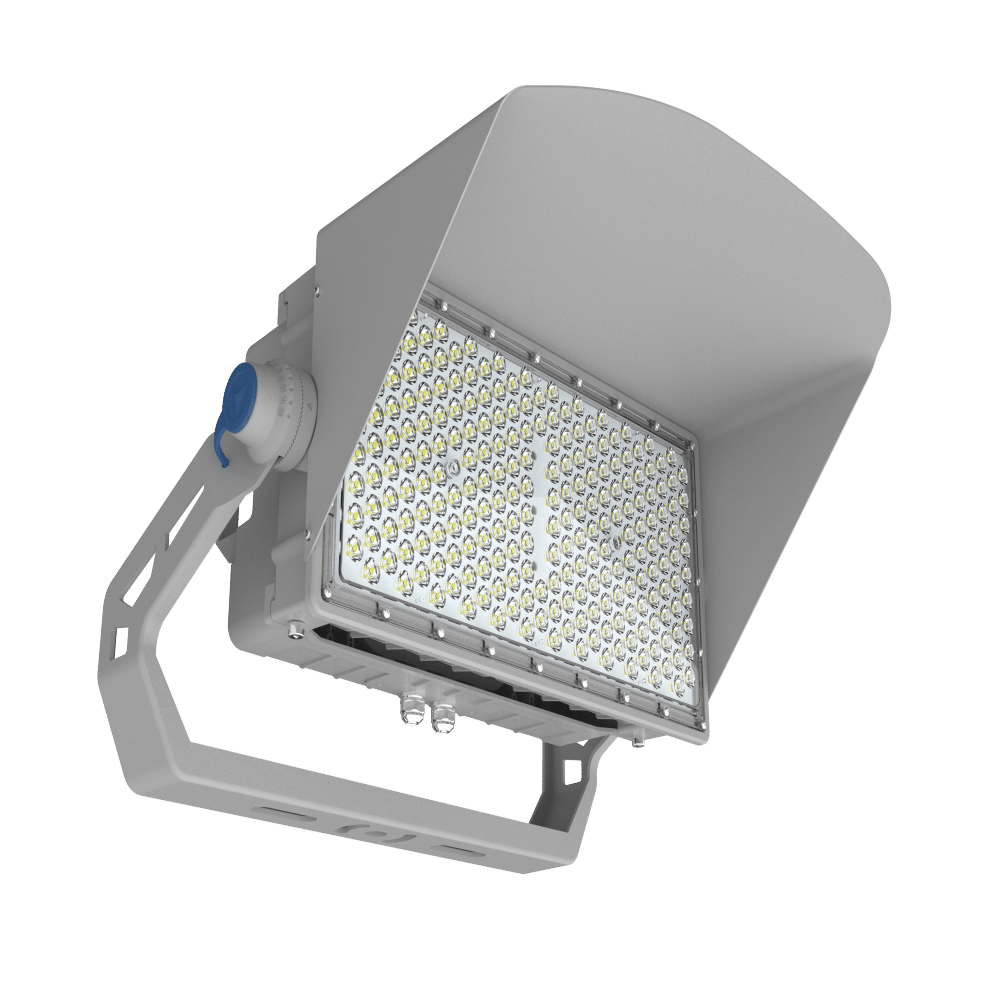

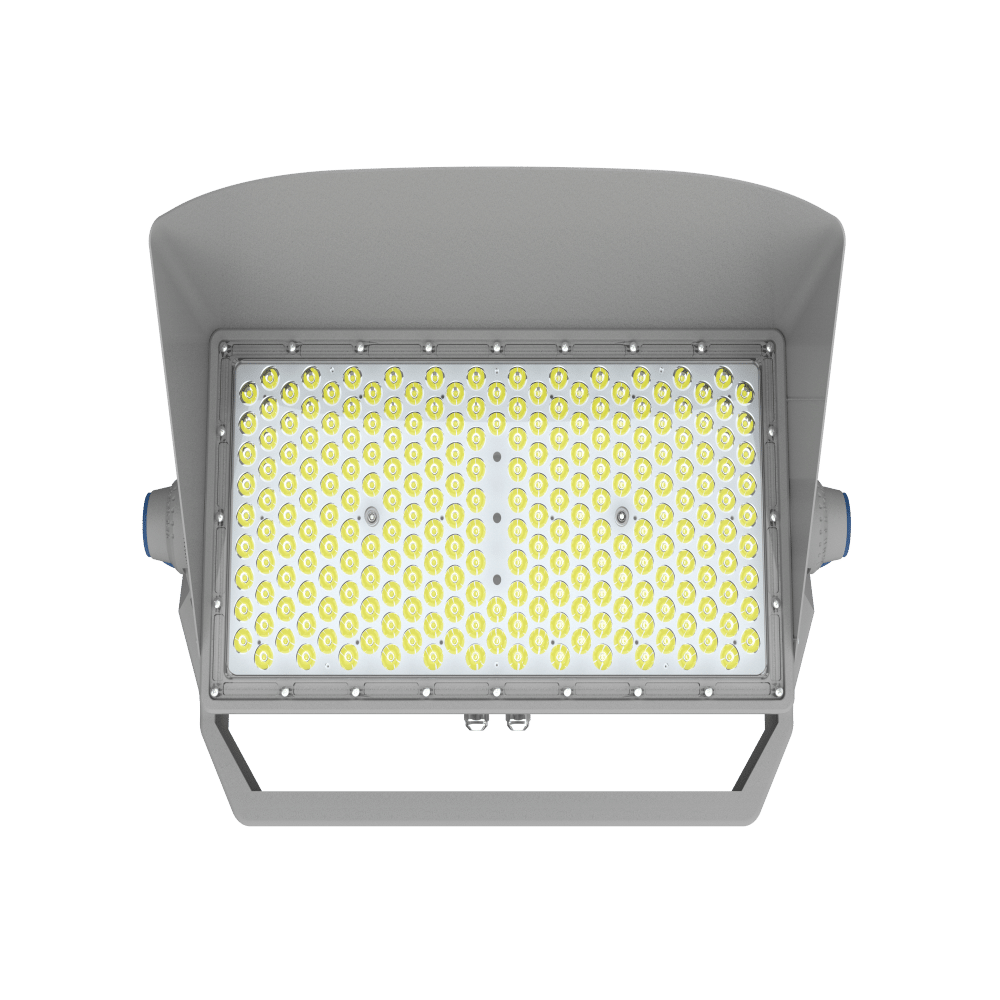

Deliver extreme high-lumen illumination, advanced glare suppression, and site-wide performance with the Venas M Series LED Sports Light. Custom-engineered by Venas' in-house R&D team, this industrial-grade luminaire is built to produce superior brightness and exceptional visual comfort for athletes, spectators, and site operators. Constructed with a cold-forging aluminum housing protected by a durable polyester powder-coated finish, it provides excellent thermal dissipation, structural rigidity, and corrosion resistance under demanding environmental conditions. Engineered for wind resistance and IP66-rated weatherproofing, it serves as the ultimate high-mast solution for sports stadiums, maritime shipping docks, container yards, airport aprons, and large industrial facilities.

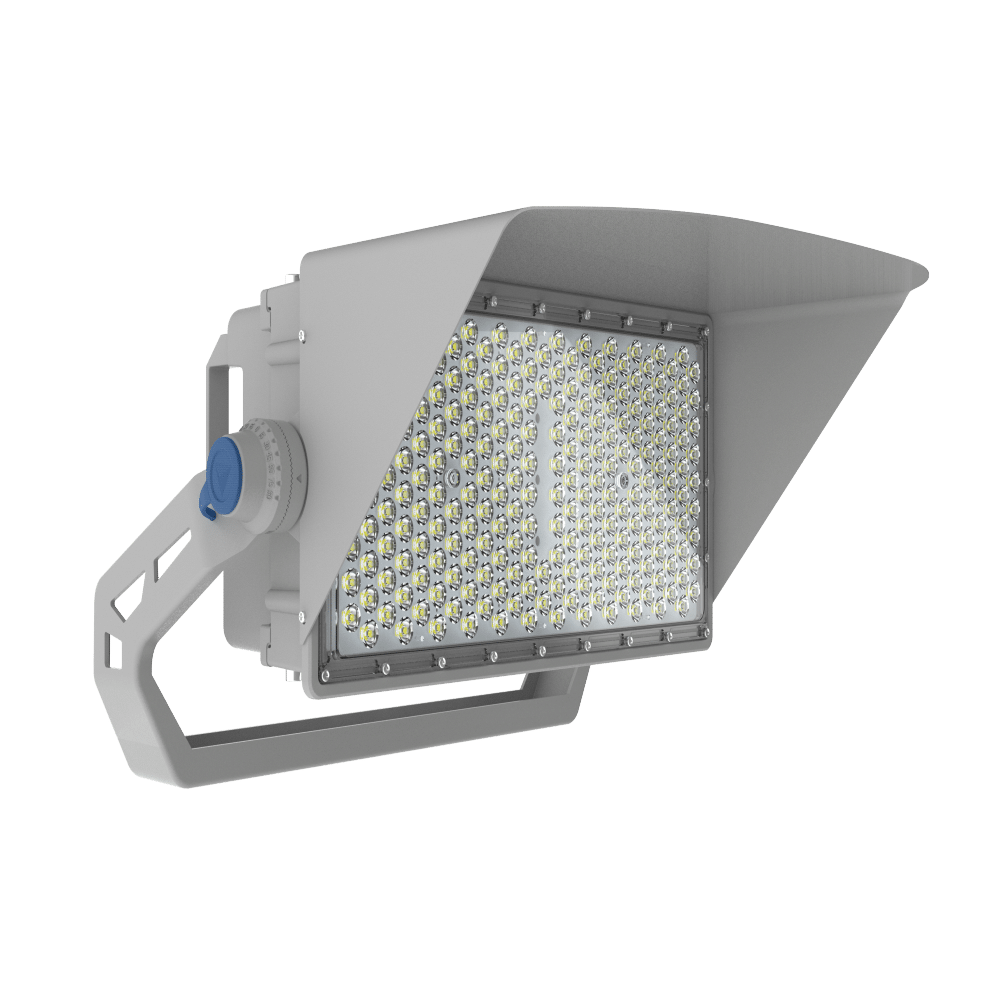

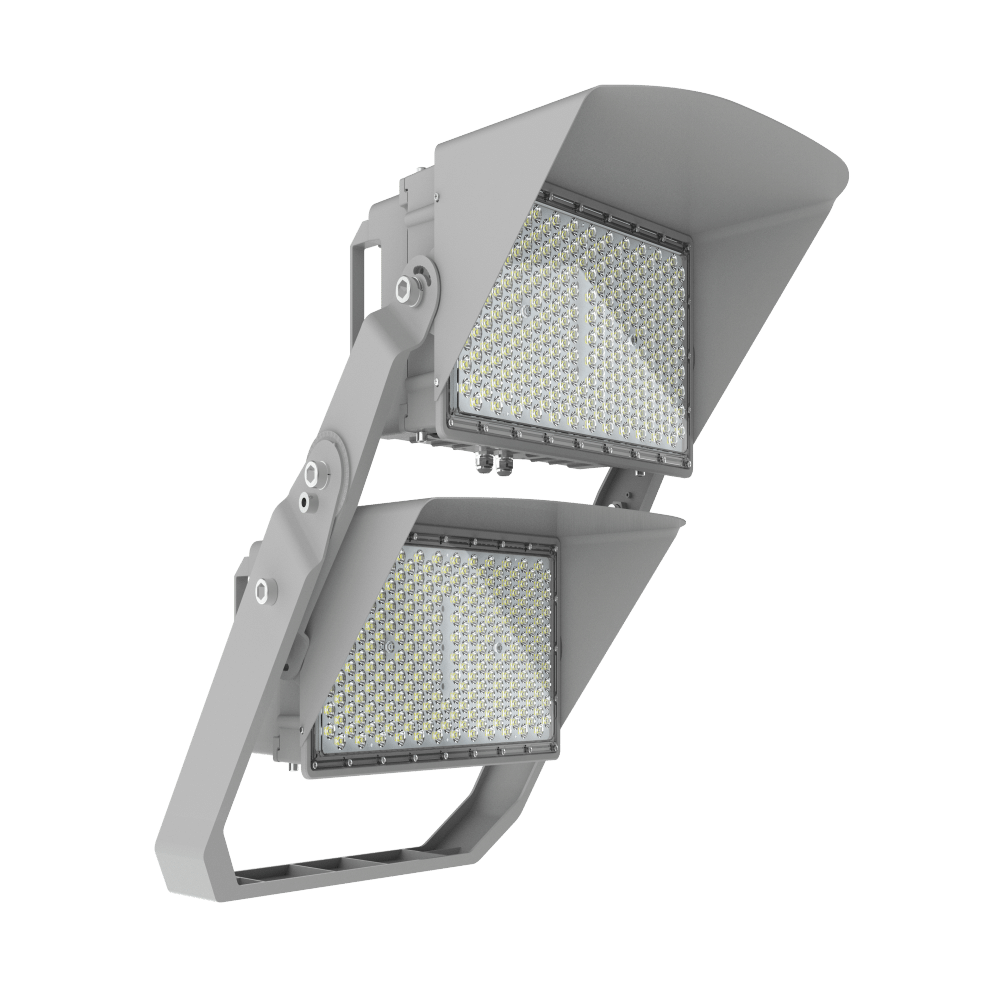

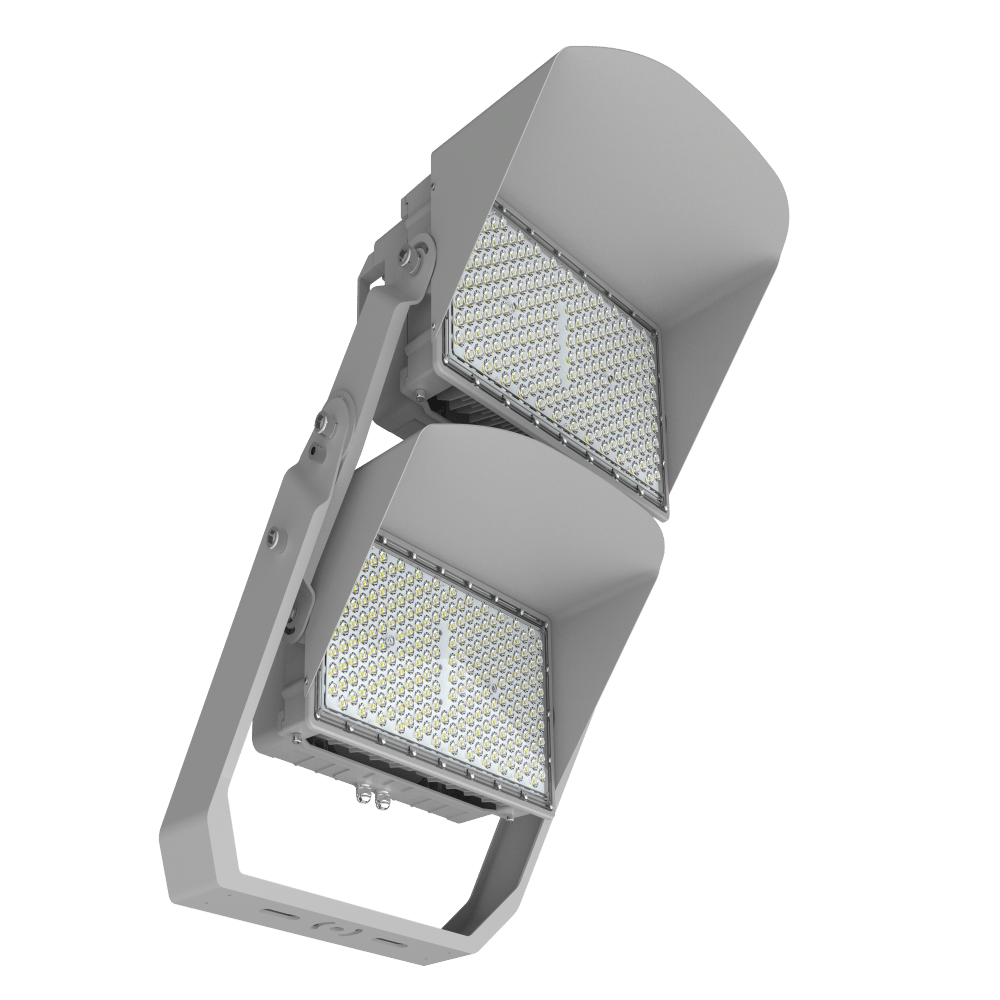

The M Series offers an extensive range of configurations split across two core physical profiles: the M1 Series (400W, 500W, 650W) generating 60,000 to 97,500 lumens, and the high-density M2 Series (720W, 800W, 900W, 1000W, 1200W, 1300W) generating 108,000 to 195,000 lumens at an outstanding efficacy of 150 lm/W. Featuring precise optical distribution control, it is available in 15°, 20°, 30°, 40°, 60°, and 120° beam angles utilizing 3737 and 5050/3030 LED packages. Color choices span from 2700K to 6500K CCT, alongside optional dynamic RGB and RGBW color-changing optics.

Powered by premium Inventronics or Sosen LED drivers, the luminaire features standard 0-10V dimming with optional DMX512 and DALI intelligent controls for professional stadium lighting scenes. It supports flexible power configurations, including built-in drivers or remote external power supply enclosures, and boasts standard 10kV (optional 20kV) surge protection. Certified ETL and DLC listed, the M Series also offers an optional laser aiming device to ensure pinpoint angling and field positioning during installation.

Key Features:

• Ultra-High Efficacy & Output: Delivers up to 195,000 lumens at 150 lm/W across 400W to 1300W wattage options.

• Cold-Forging Aluminum Build: Corrosion-resistant polyester powder-coated housing engineered for maximum thermal management and wind resistance.

• Versatile Beam Distribution: Choice of 6 optical beam angles (15° to 120°) for narrow spot-lighting or wide flood coverage.

• Smart Control Options: Standard 0-10V dimming with optional DMX512 or DALI protocols for dynamic architectural or stadium control.

• IP66 & 10kV/20kV Surge Rated: Weatherproof IP66 enclosure with heavy-duty transient protection (10kV standard / 20kV optional).

• Optional Laser Aiming System: Mountable laser sight ensures exact beam placement during high-mast pole setup.

Technical Specification Table

Packaging & Logistics Specifications

• M1 Series (Product Net Weight): 18.3 kg (40.34 lb)

• M1 Series (Package Gross Weight): 20.5 kg (45.19 lb)

• M1 Series Package Dimensions: 25.79" x 15.55" x 13.97" (655 x 395 x 355 mm)

• M2 Series (Product Net Weight): 31.5 kg (69.44 lb)

• M2 Series (Package Gross Weight): 34.5 kg (76.06 lb)

• M2 Series Package Dimensions: 33.66" x 27.56" x 13.78" (855 x 700 x 350 mm)

• External Power Supply Box (400W–1200W): Net 6.6 kg (14.55 lb) | Package: 21.06" x 12.79" x 8.27"

• External Power Supply Box (1300W): Net 6.1 kg (13.45 lb) | Package: 21.65" x 7.48" x 6.69"
