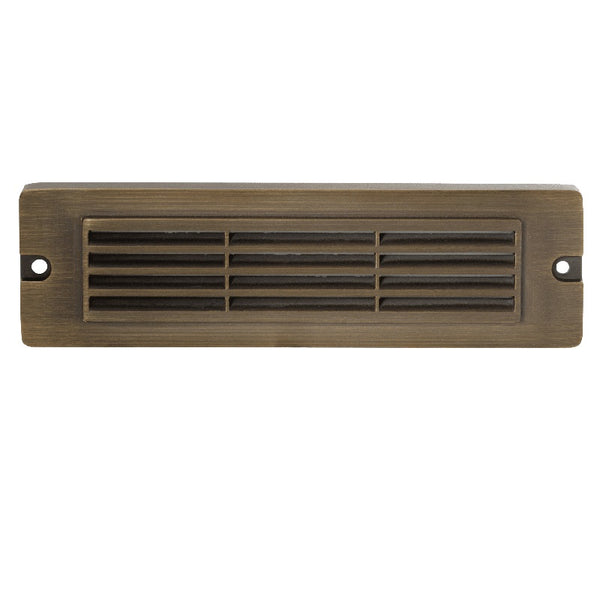

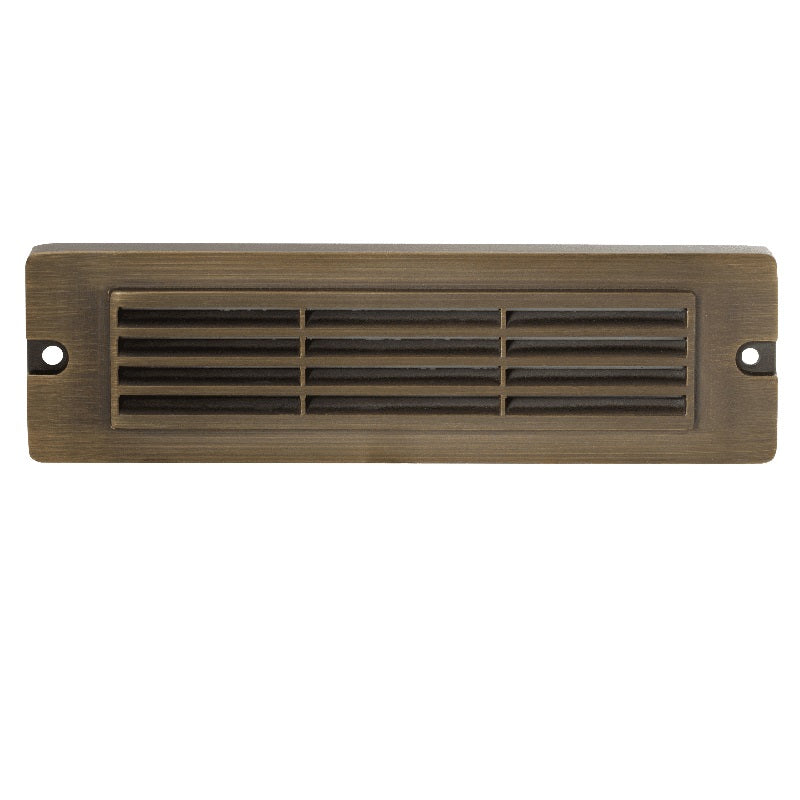

Smart Brass RGB-WW Bluetooth Louvered Brick Light | 12V
| SKU(s) | CL-395-BT-AB |

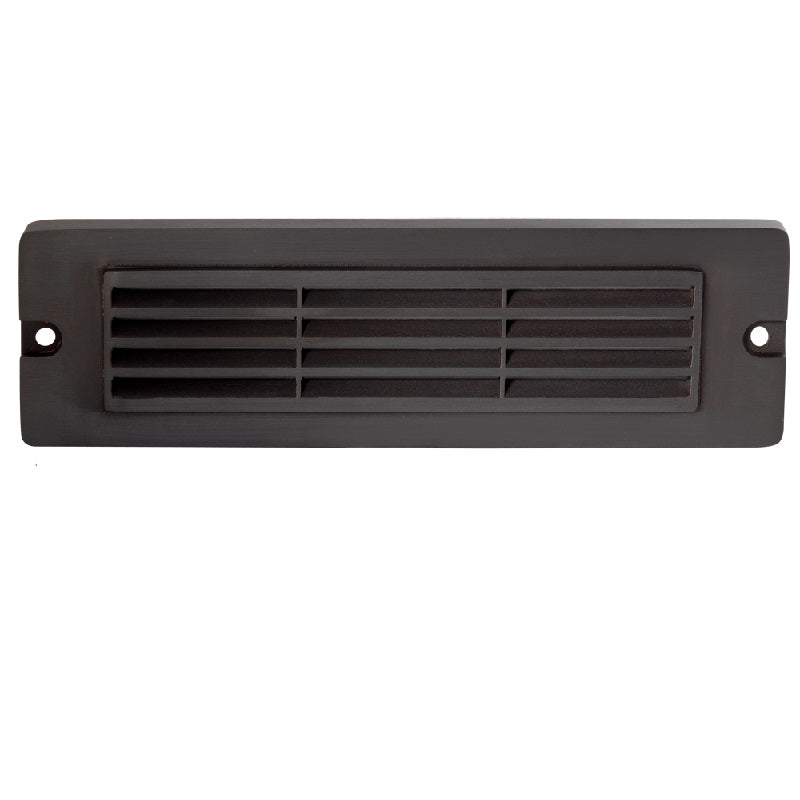

| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 50LM - 410LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 8-3/4" |
| Height | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Smart Brass RGB-WW Bluetooth Louvered Brick Light is a premium architectural-grade fixture designed for modern outdoor lighting applications. Built from heavy-duty corrosion-resistant cast brass, it features a die-cast louvered faceplate with a stainless-steel backplate, ensuring long-term durability in demanding environments.
Equipped with a replaceable 1W–5W RGB-WW LED module, this fixture delivers 50–410 lumens with a 120º beam spread and a CRI rating above 85, providing vibrant, customizable color options and excellent light quality. Available in Antique Bronze or Gun Metal finishes, it blends seamlessly into walls, pathways, and architectural brick installations.
The frosted heat-resistant lens offers smooth light diffusion, while the fixture comes prewired with a 10 ft UL-listed SPT-2W cord for convenience. Quick-locking connectors (CX-LOC) are available separately from Corona Lighting.
This brick light requires a remote 12V transformer (sold separately) and operates within a 9V–17V voltage range, ensuring reliable performance and energy efficiency.
✔ Cast brass housing with corrosion-resistant finish
✔ Louvered die-cast faceplate with stainless steel backplate
✔ 1–5W replaceable RGB-WW LED, 50–410 lumens, CRI >85
✔ 120º beam spread for wide light coverage
✔ Surface-mounted with frosted lens for glare control
✔ Prewired with 10 ft UL-listed cord for easy installation
✔ 12V remote transformer required (available separately)
✔ Backed by lifetime housing warranty & 10-year LED warranty
$235.85 /each
| SKU(s) | CL-654-BT-AB-12 |
| Color | Antique Bronze |
| Size | 12" | 18" |
| Color | Antique Bronze |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7-7/8" |
| Length | 7-7/8" |
| Height | 18" / 24" |
| Diameter | 7-7/8" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$244.85 /each
| SKU(s) | CL-645-BT-AB-12 |
| Color | Antique Bronze | Gun Metal |
| Size | 12" | 18" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 8-1/2" |
| Length | 8-1/2" |
| Height | 17" / 23" |
| Diameter | 8-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$75.65 /each
| SKU(s) | L-EDBA-3W-BT |
| Color | White |
| Wattage | 0.5W - 3W |
| Voltage | 9V-17V AC & DC |
| Lumens | 10LM - 200LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7/8" |
| Length | 7/8" |
| Height | 1-7/8" |
| Diameter | 7/8" |
| LED Life | 50.000 Hrs |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
