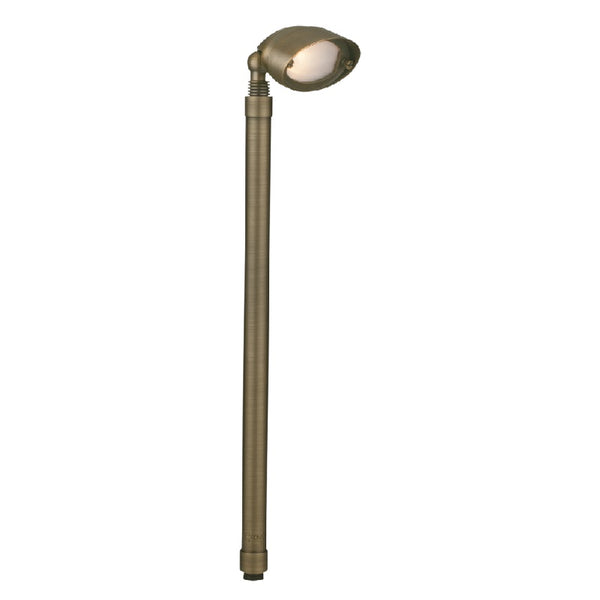

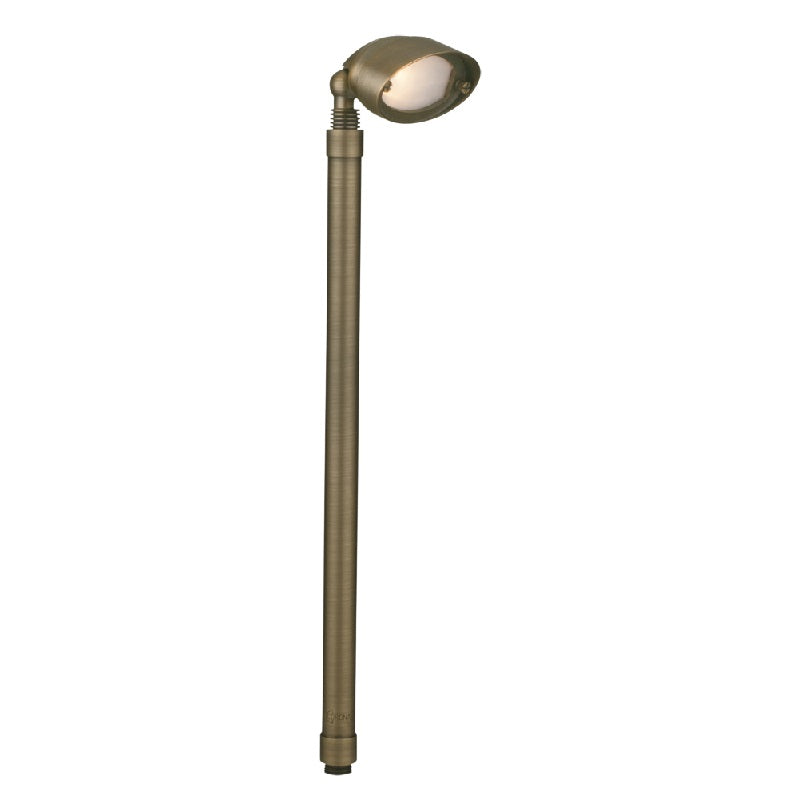

Mini Oval Brass Area Light – 18″ Stem | T3 LED Compatible
| SKU(s) | CL-733B-AB-12 |
| Size | 12" | 18" |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 2.5W / 2700K | 2.5W / 3000K |
| Color | Antique Bronze & Gun Metal |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 4-3/8" |
| Length | 4-3/8" |
| Height | 12" / 18" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

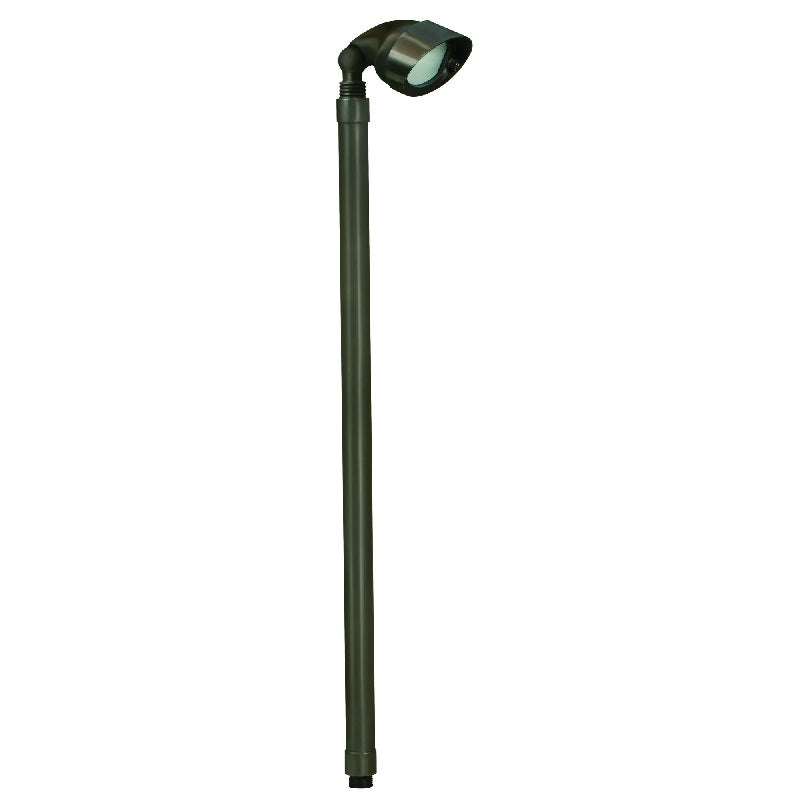

The Mini Oval Area Light is a premium-grade fixture designed to provide elegant and efficient illumination for pathways, gardens, and landscape features. Crafted from solid brass and available in Antique Bronze or Gun Metal finishes, this light offers unmatched durability and a classic aesthetic for both residential and commercial outdoor environments.
This architectural-grade fixture features a 18″ standard stem and an adjustable cast brass knuckle with a thumb screw, allowing for precise beam positioning. The frosted, heat-resistant tempered glass lens ensures a soft, diffused light, and it comes with additional lens options—including clear glass, linear glass, and a honeycomb louver—for customizable light control and glare reduction.
Equipped with a top-grade fixed ceramic bi-pin socket, the Mini Oval Area Light is compatible with 12V T3 lamps (up to 35W halogen or LED equivalents). It arrives prewired with a 3-foot 18-2 SPT2-W direct burial cord for quick installation, and the included plastic ground spike with ½″ NPT threaded female hub ensures secure mounting. Designed to operate in the 9V–17V range, it requires a remote 12V transformer (sold separately) for optimal performance.
Key Features:
Solid brass housing for superior outdoor durability
Available in Antique Bronze or Gun Metal finishes
24″ stem for ideal height and light spread
Adjustable cast brass knuckle with thumb screw for precise aiming
Frosted tempered glass lens for soft lighting
Includes clear glass, linear glass, and honeycomb louver lens options
Top-grade fixed ceramic bi-pin socket
Compatible with 12V T3 lamps (halogen or LED) up to 35W
Prewired with 3-ft 18-2 SPT2-W direct burial cord
Sturdy plastic ground spike with ½″ NPT threaded female hub
Voltage range: 9V–17V; requires remote 12V transformer
Limited lifetime warranty on fixture housing
Ideal Applications:
Pathway and walkway lighting
Garden and plant bed illumination
Patio and outdoor living area lighting
Accent lighting for landscape features and signage
$259.25 /each
| SKU(s) | CL-734B-AB-18 |
| Size | 18" | 24" |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze & Gun Metal |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 18" / 24" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$311.45 /each

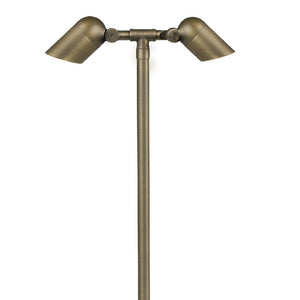

| SKU(s) | CL-735B-T-AB-12 |
| Size | 12" | 18" | 24" |
| Color | Antique Bronze | Gun Metal | Silver |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 12" / 18" / 24" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$54.00 /each
| SKU(s) | CL-MINI-BK |
| Color | Black |
| Wattage | 3W |
| Voltage | 12V |
| Lumens | 230LM |
| Color Temp | 3000K |
| Width | 1-1/4" |
| Height | 7-1/4" |
| LED Life | 30.000 Hrs |
| Wire | 10ft SPT-1W wire |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$133.25 /each

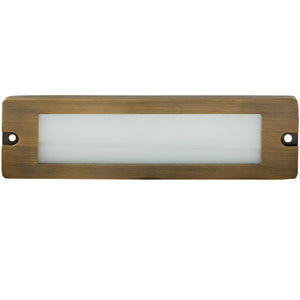

| SKU(s) | CL-394B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 250LM |
| Color Temp | 3000K |
| Width | 8-3/4" |
| Height | 2-1/2" |
| LED Life | 30.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
