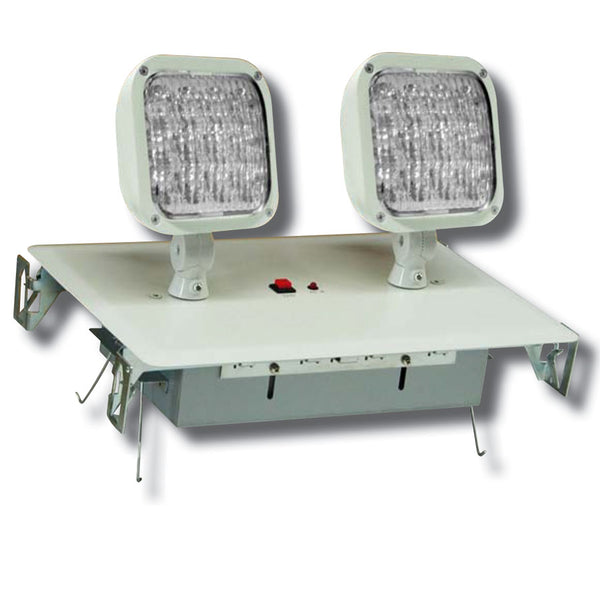

Emergency Light LED Recessed Steel
SKU(s) | LEDR-7 | LEDR-7B |
Housing | White | Black |
Width | 9" |
Length | 13 1/4" |
Height | 10" |
![]() |
ILLUMINATION
- Two fully adjustable 1.0W white LED lamp heads.
- High-performance chrome-plated metal reflectors and plastic lens for optimal light distribution.
ELECTRICAL
- Dual 120/277 voltage.
- Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- LVD (low voltage disconnect) prevents battery from deep discharge. • 6V maintenance-free, rechargeable Sealed lead acid battery.
- Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- Remote capacity of 10W standard.
MOUNTING
- Bar hangers on the back box for recessed mount.
- Compatible with drywall or drop ceiling mount installations. Bar hangers included.
HOUSING
- Durable 20 gauge steel trim plate in white or black finish.
- Trim securely attached to housing with spring clips.
OPTIONS
- • SDT: Self-diagnostic test feature performs monthly, biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.
- • USA: Substantial transformation assembly in the U.S. complies with “AssembLED in the USA” under the Buy American Act.
WARRANTY/LISTING
- • Five year warranty on all electronics and housing. Battery pro-rated for two years.
- • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- • UL listed for dry locations. (25°C)
