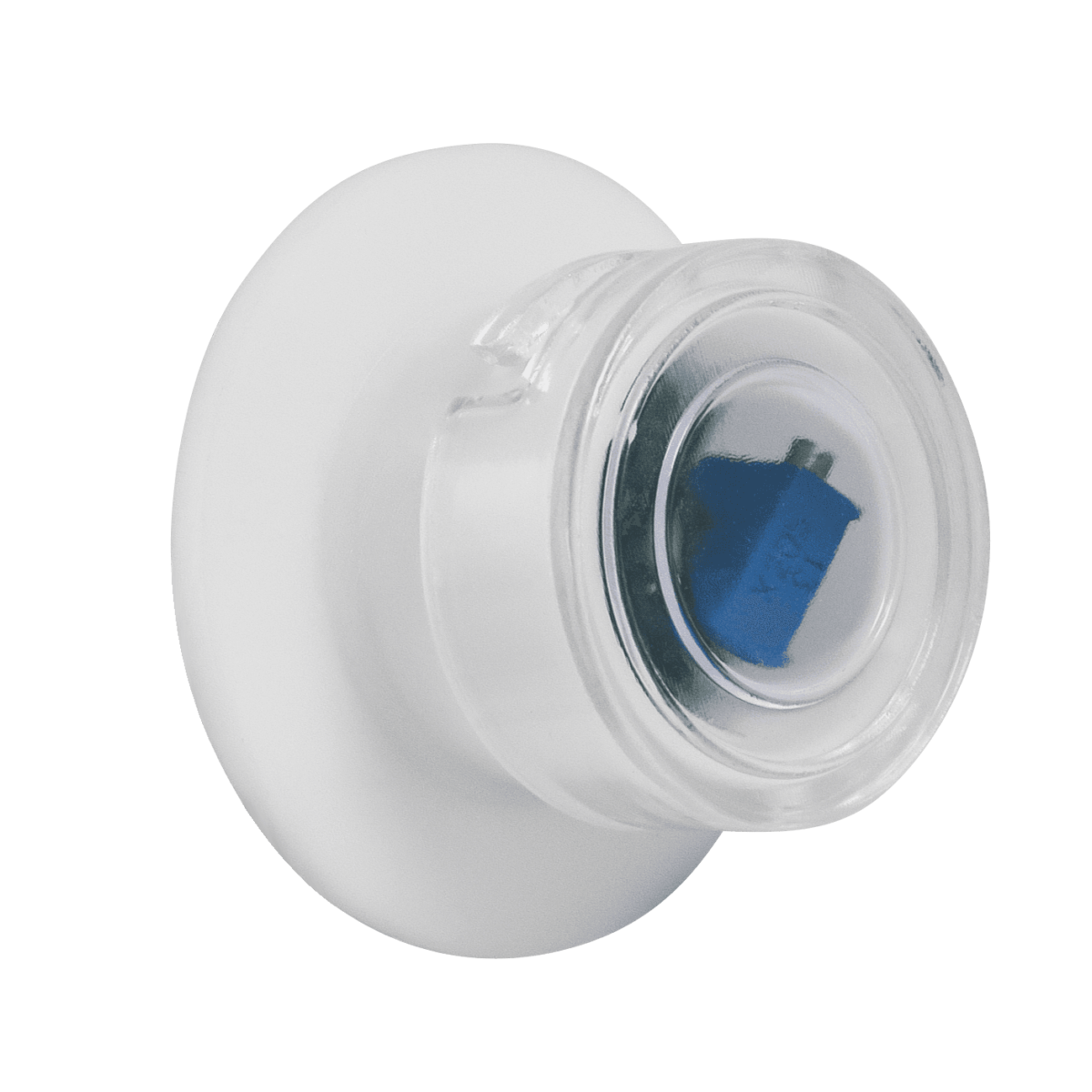

Indoor Daylight Harvesting Sensor | 24V | Enerlites MPL-010

The MPL-010 Indoor Daylight Harvesting Sensor is a high-performance 24V closed-loop photosensor designed to optimize lighting efficiency in modern lighting control and building automation systems. This 2-wire daylight sensor delivers a precise 0–10V analog output signal based on ambient light levels, allowing lighting systems to automatically dim or brighten in response to available daylight.

Engineered to meet California Title 24 and ASHRAE 90.1 daylight harvesting requirements, the MPL-010 is an ideal solution for energy-efficient commercial interiors. The sensor mounts easily to the ceiling using an adhesive pad and is positioned 6 to 8 feet from windows, facing downward to accurately measure reflected light from the task area (floor).

A precision Fresnel lens creates a focused 60-degree cone of reference, ensuring reliable light measurement without interference from adjacent light sources. The sensor is factory calibrated to 140 foot-candles and provides consistent performance with a fixed 7–15 second dimming response time. Powered directly from a 0–10V LED electronic ballast, this Class 2 low-voltage device can transmit its control signal up to 300 feet, making it suitable for a wide range of installations.

Designed for durability and accuracy, the MPL-010 is ideal for offices, classrooms, lobbies, and retail environments, delivering improved occupant comfort, reduced energy consumption, and compliance with modern energy codes.

Technical Specifications

• Model: MPL-010

• Device Type: Indoor Daylight Harvesting Photosensor

• Input Voltage: 24V (powered from 0–10V LED electronic ballast)

• Wiring: 2-wire

• Output Signal: 0–10V analog

• Sensor Type: Closed-loop daylight photosensor

• Lens Type: Fresnel lens

• Field of View: 60° cone of reference

• Factory Calibration: 140 foot-candles

• Signal Distance: Up to 300 feet

• Time Response: Fixed 7–15 second full-range dimming delay

• Mounting: Ceiling mount with adhesive pad

• Installation Distance: 6–8 feet from window, downward-facing

• Voltage Class: Class 2, low voltage

• Operating Temperature:

  • -40°F to 140°F

  • (-40°C to 60°C)

• Compliance:

  • California Title 24

  • ASHRAE 90.1

• Typical Applications: Offices, classrooms, lobbies, retail spaces, commercial interiors
