40,000 Lumens Commercial LED Area Light | CCT Selectable | 120-277V | MPALSR-403224L-3CCT

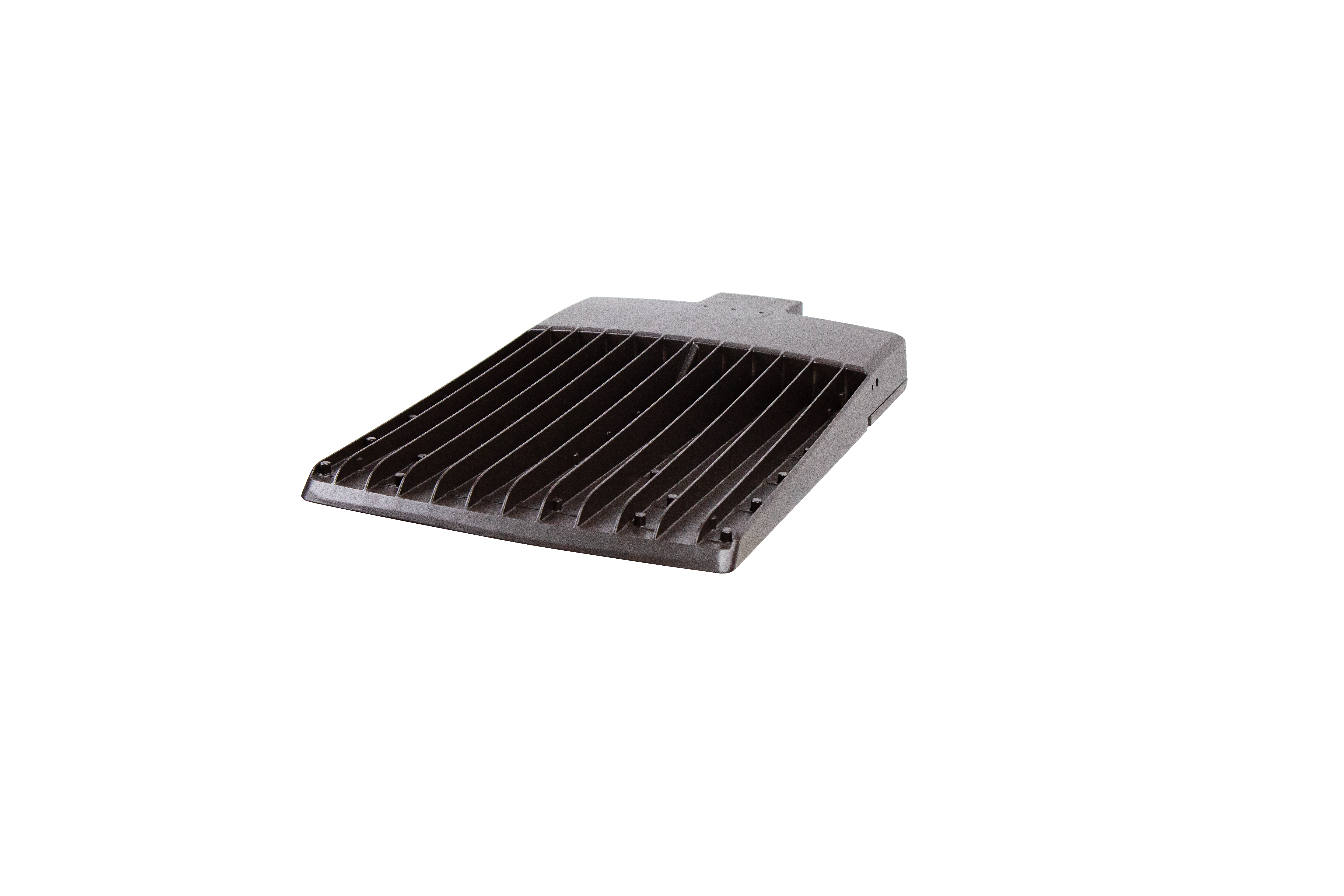

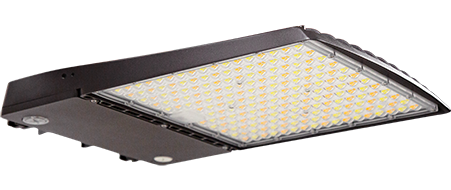

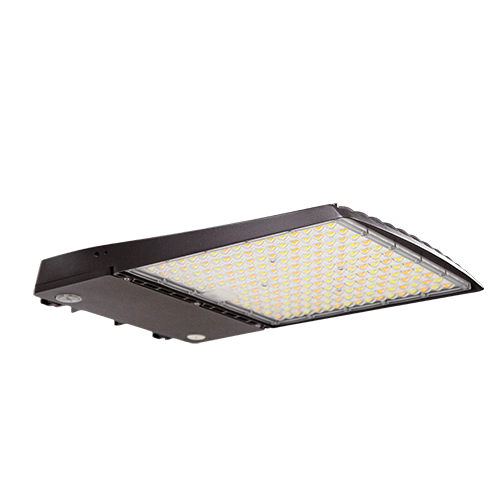

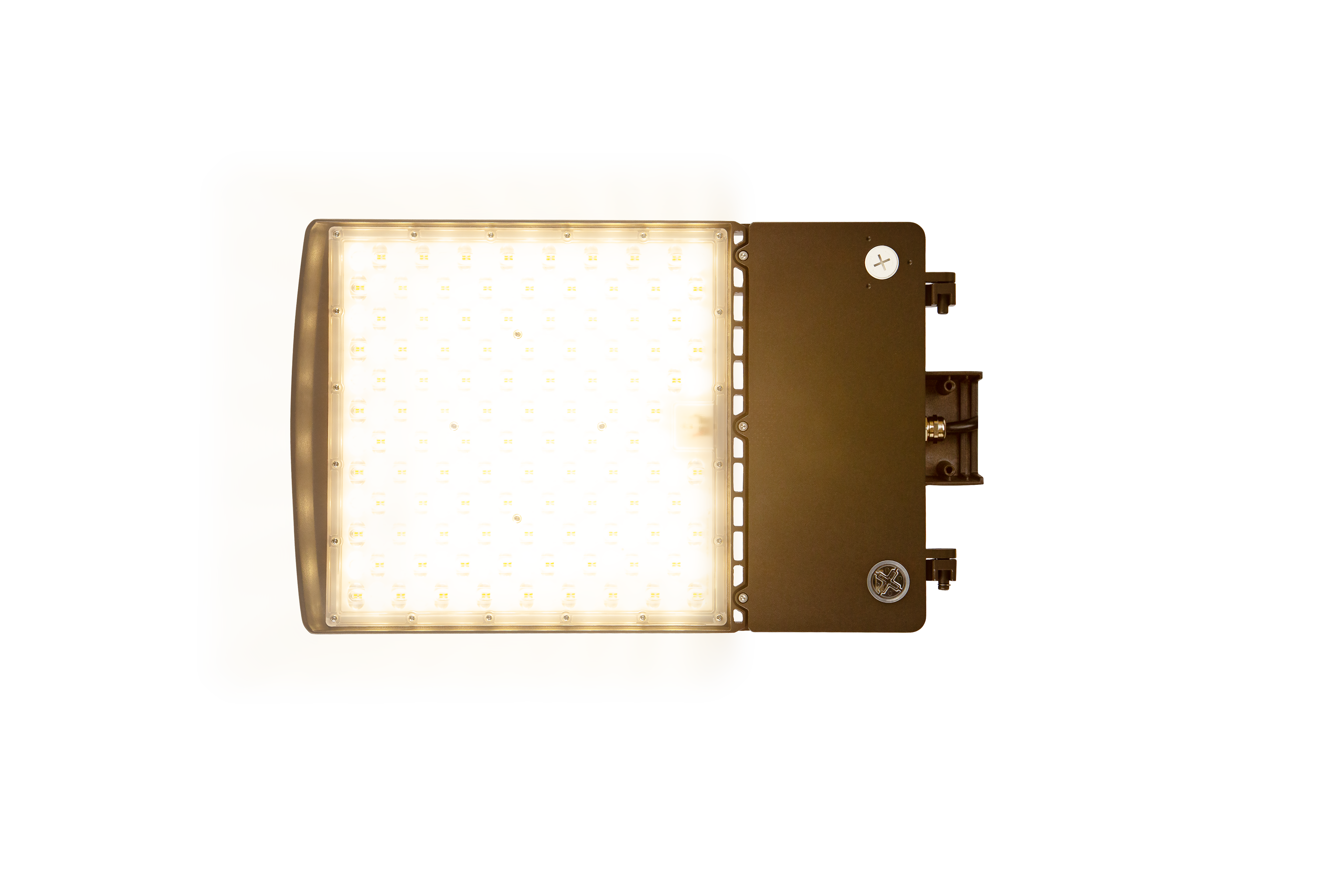

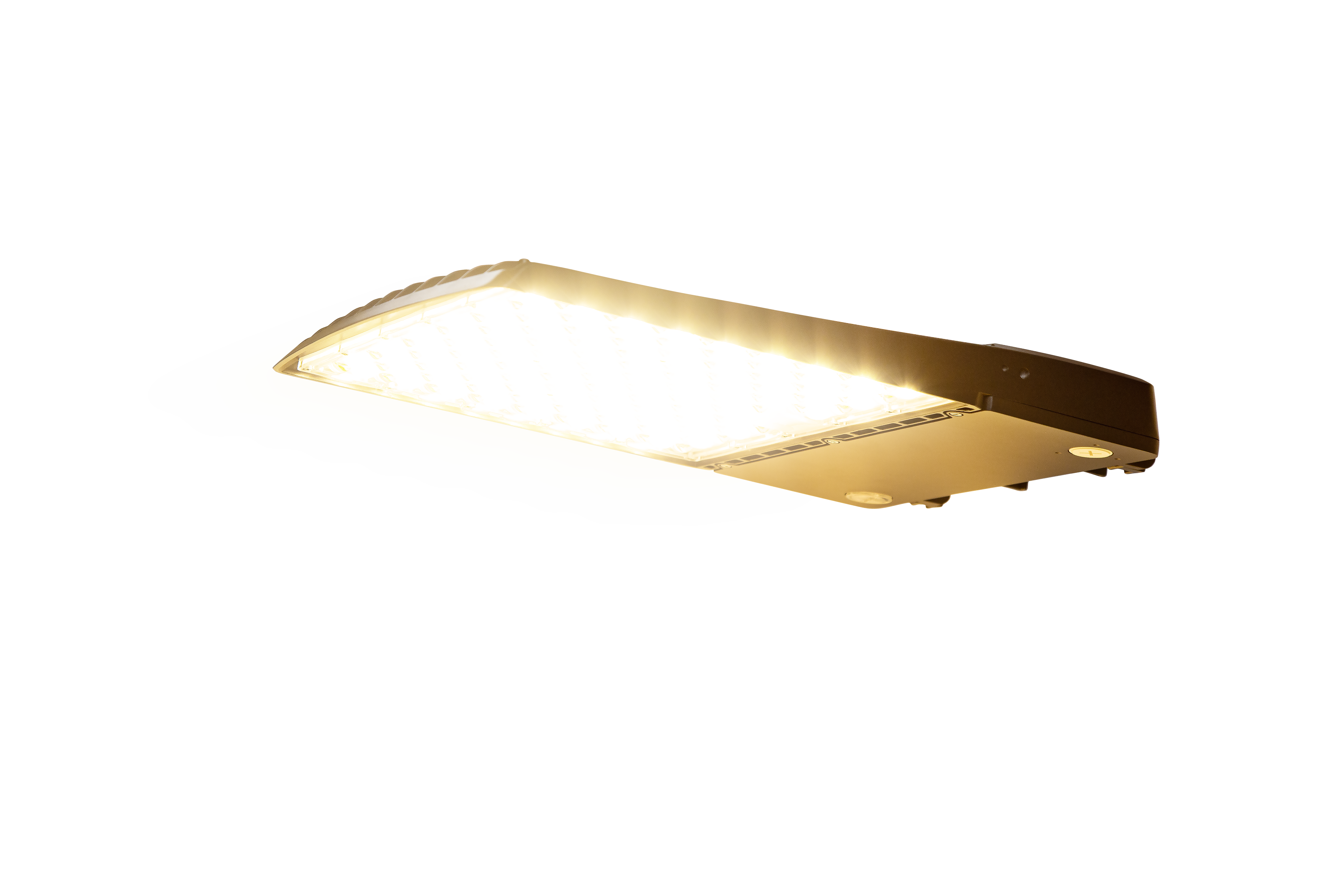

Deliver high-output outdoor illumination, advanced control, and site-wide adaptability with the Multi-Purpose Sensor-Ready LED Area Light. Constructed with a premium die-cast aluminum housing finished in a durable bronze powder coating, this high-lumen, industrial-grade fixture is engineered to withstand extreme weather, physical impact, and severe environmental elements. It serves as an ideal solution for large commercial parking lots, automotive dealerships, perimeter security, roadway corridors, sports complexes, and logistics hub perimeters.

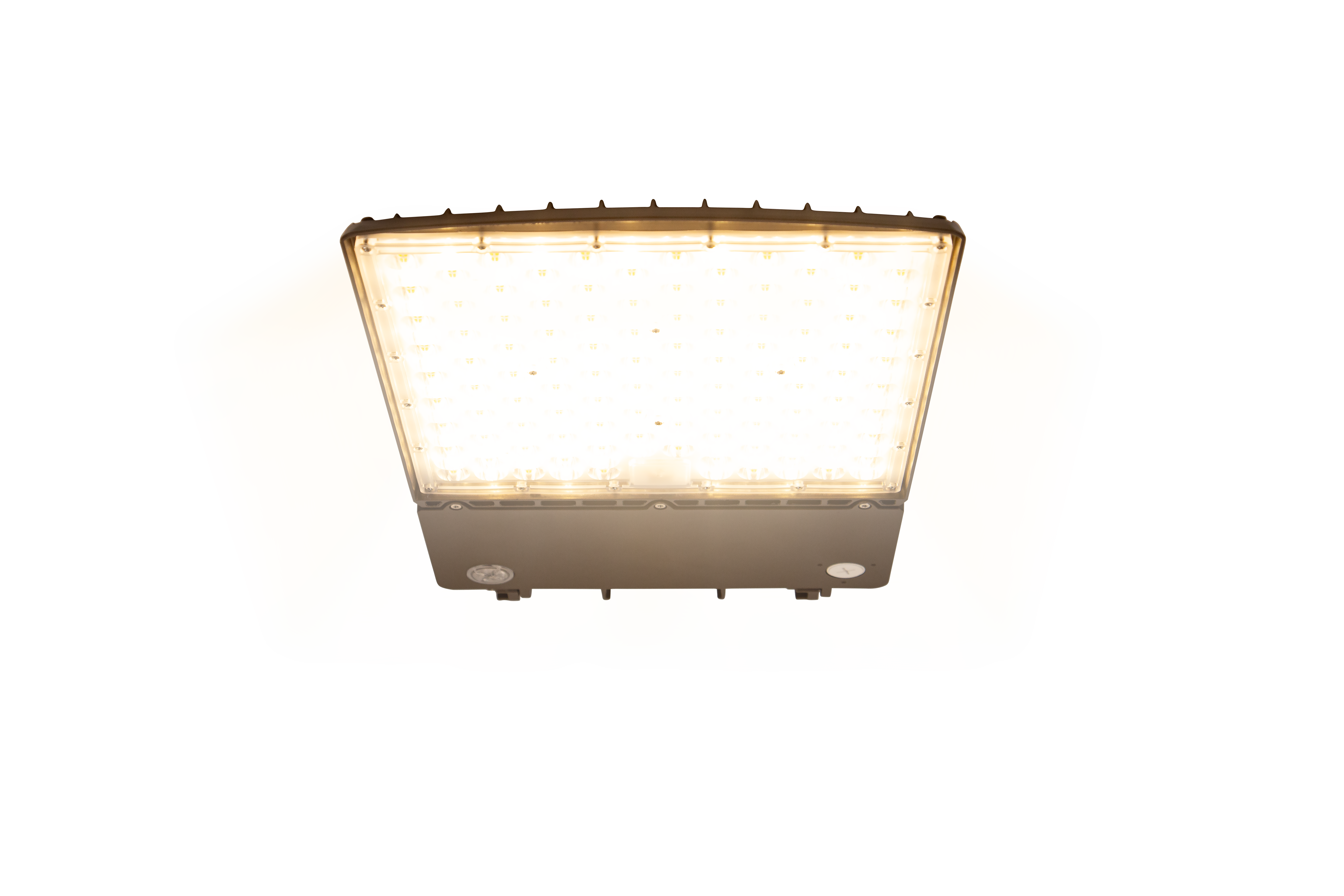

Engineered with Tri-Lumen and 3-CCT field selectability, this ultra-high-output area light allows contractors to customize light levels and color temperatures on site. The MPALSR-403224L-3CCT model delivers a versatile nominal lumen range of 23,377 to 41,366 lumens, while integrated CCT controls enable seamless switching between 3000K warm white, 4000K neutral white, and 5000K cool white. Offered in specialized Type III (T3) and Type V (T5) optical distributions with high-impact polycarbonate lenses, it ensures precise forward-throw or symmetric 360-degree illumination (CRI >70). Powered by long-life LEDs rated for an outstanding L70 lifespan of 167,000 hours (and L90 life of 51,000 hours), it provides long-lasting, low-maintenance performance across decades of service.

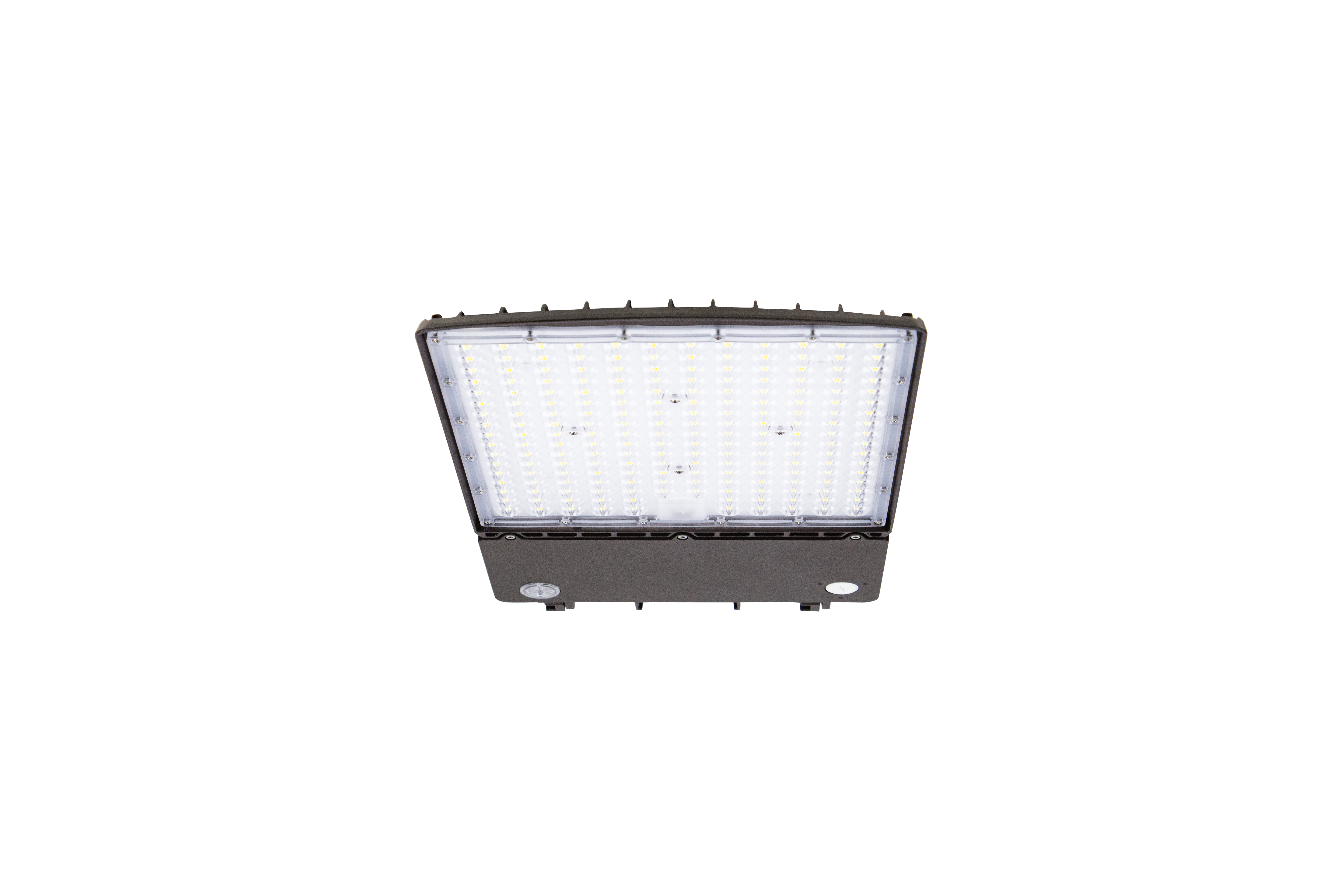

Designed for modern smart lighting automation, the fixture features an integrated screw-in sensor socket that accepts plug-and-play photocells and occupancy sensors (sold separately; remote control required for custom sensor programming). Equipped with a 6-foot incoming power cord and watertight compression connectors, it operates reliably across universal 120-277V or high-voltage 277-480V AC input ranges with standard 0-10V DC continuous dimming drivers, high power factor (>0.90), low THD (<20%), and 6kV surge protection. Certified to cULus wet location, IP65 ingress protection, IK08 impact resistance, and DLC Premium listing, this fixture supports five distinct mounting options (sold separately) including Universal Arm/Slip-fitter, Adjustable Arm, Slip-fitter, Yoke, and Trunnion mounts.

Key Features:

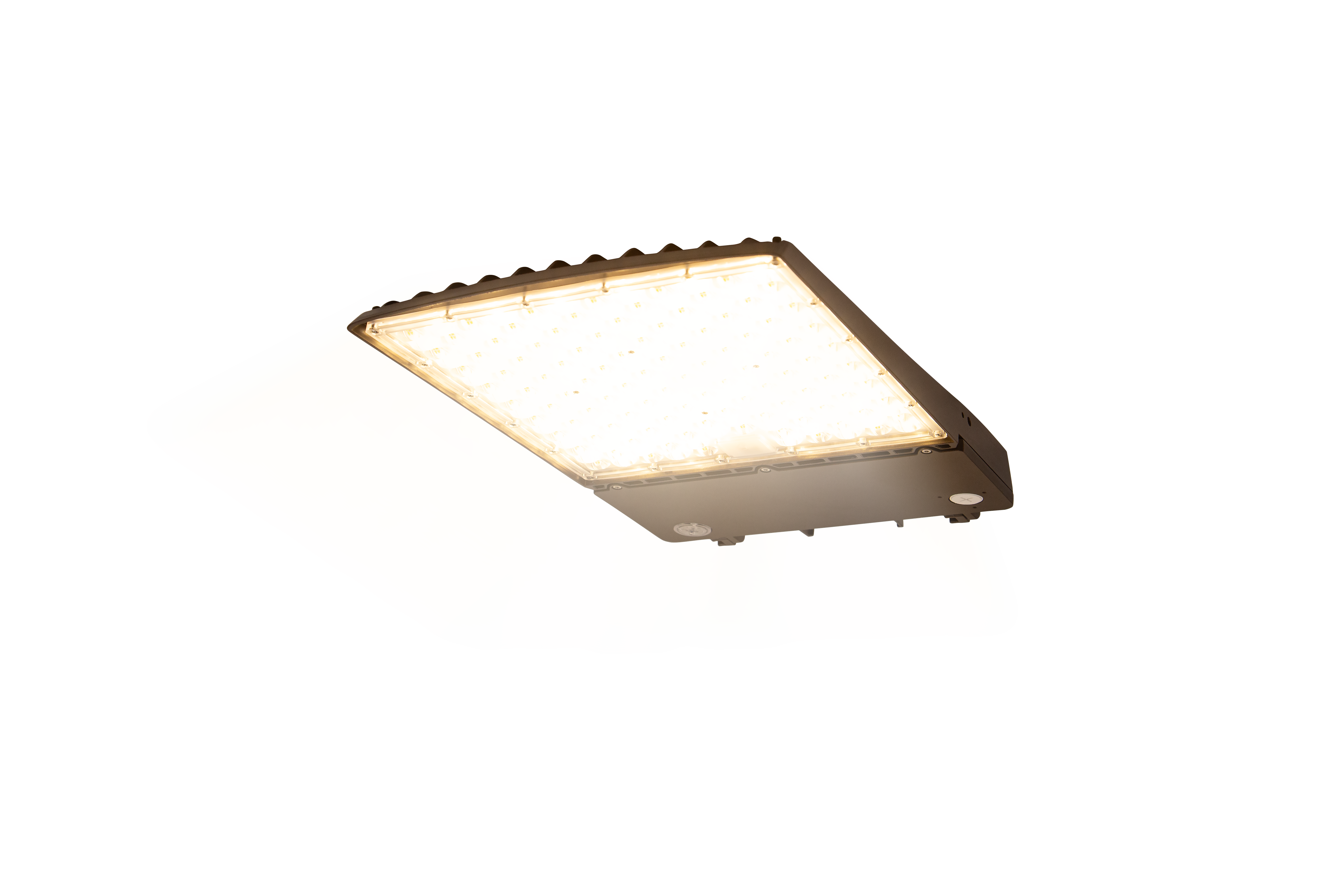

• Field-Selectable Output & CCT: Toggle between 3 high-output lumen levels (24,000 / 32,000 / 40,000 LM nominal; up to 41,366 actual LM) and 3 color temperatures (3000K / 4000K / 5000K) to meet specific pole height and site requirements.

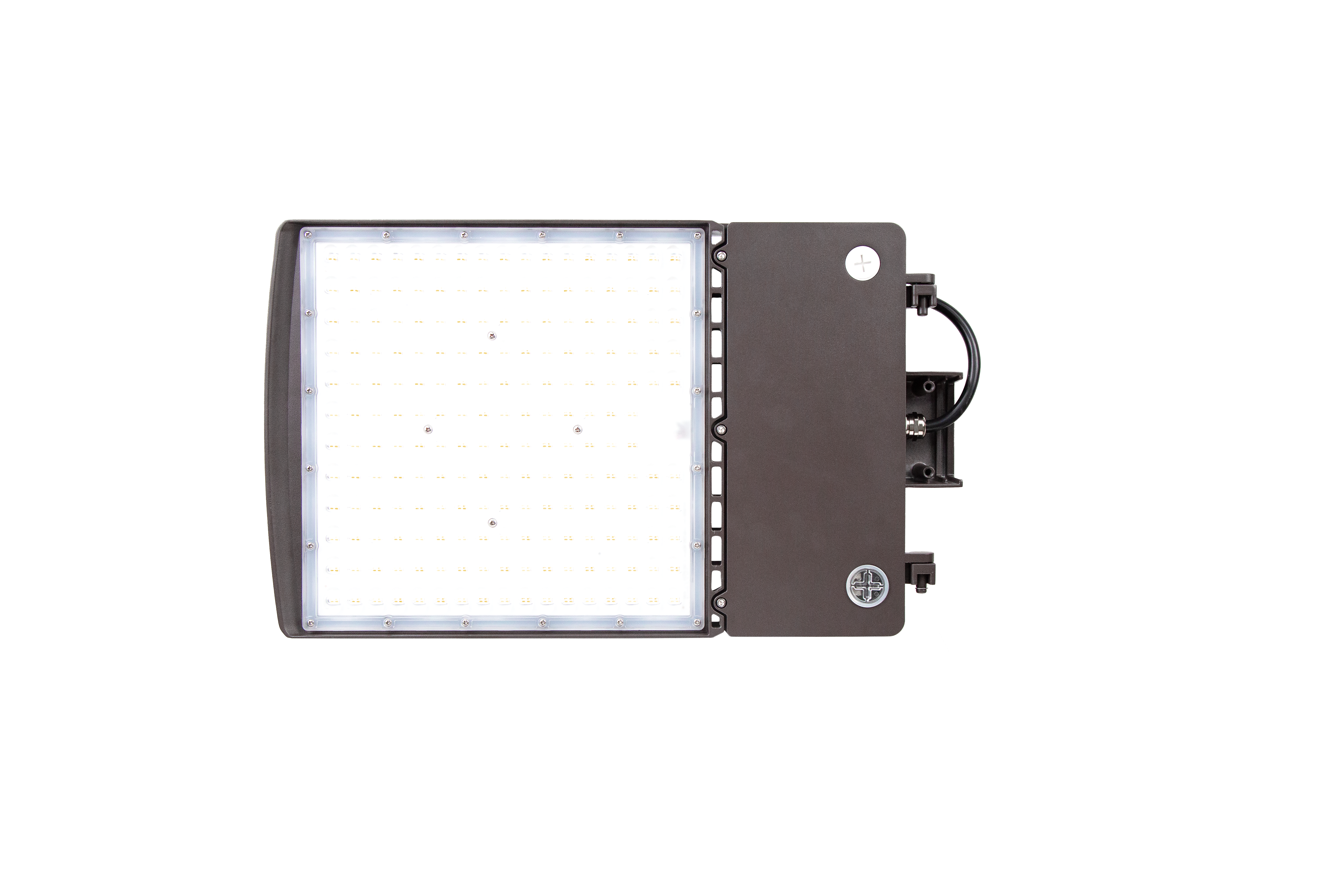

• Screw-In Sensor Ready: Integrated twist-lock receptacle enables fast, tool-free installation of optional motion and daylight sensors.

• Precision Optical Optics: Available in Type III (forward throw/roadway) or Type V (wide square/symmetric) distributions with shatter-resistant polycarbonate lenses.

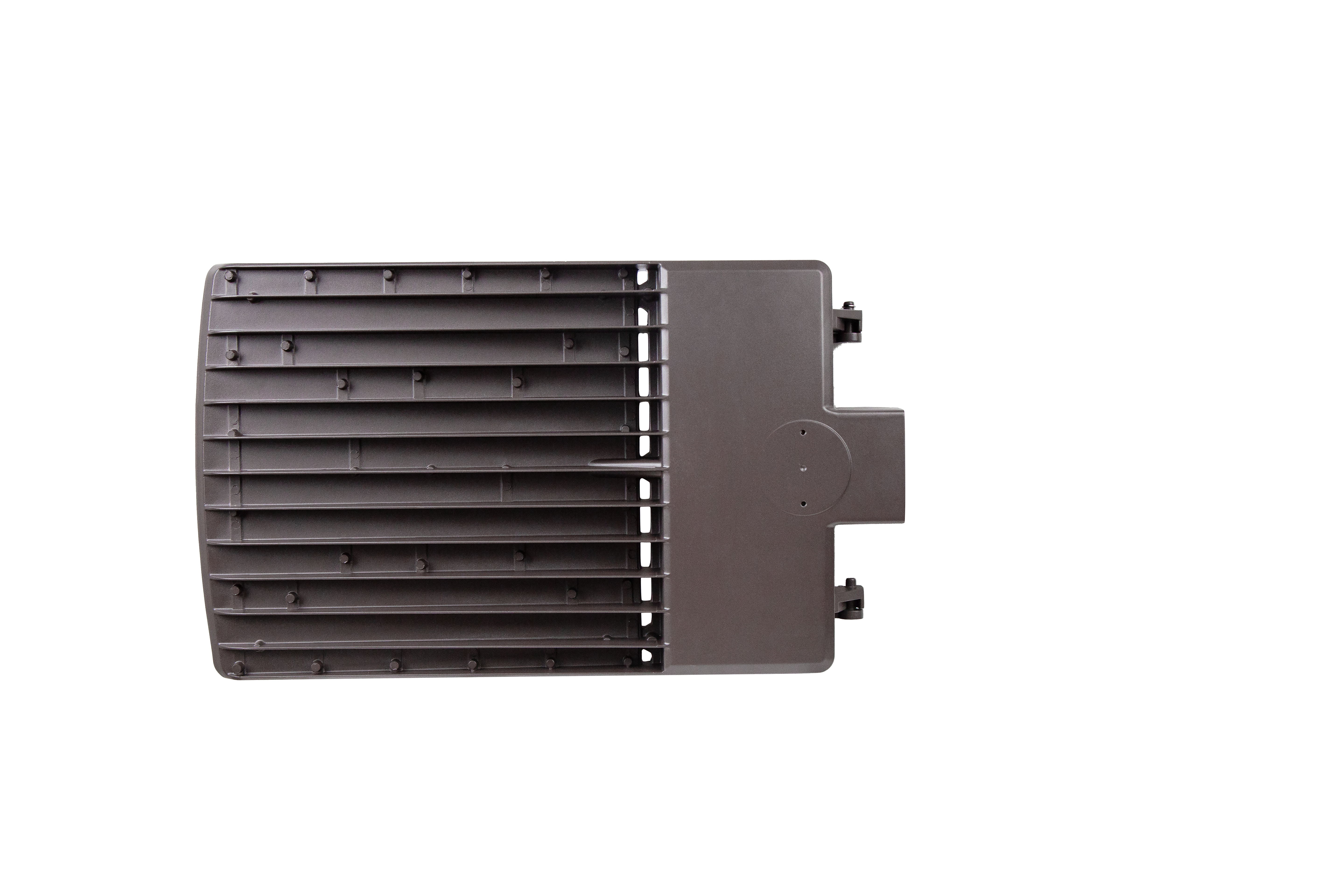

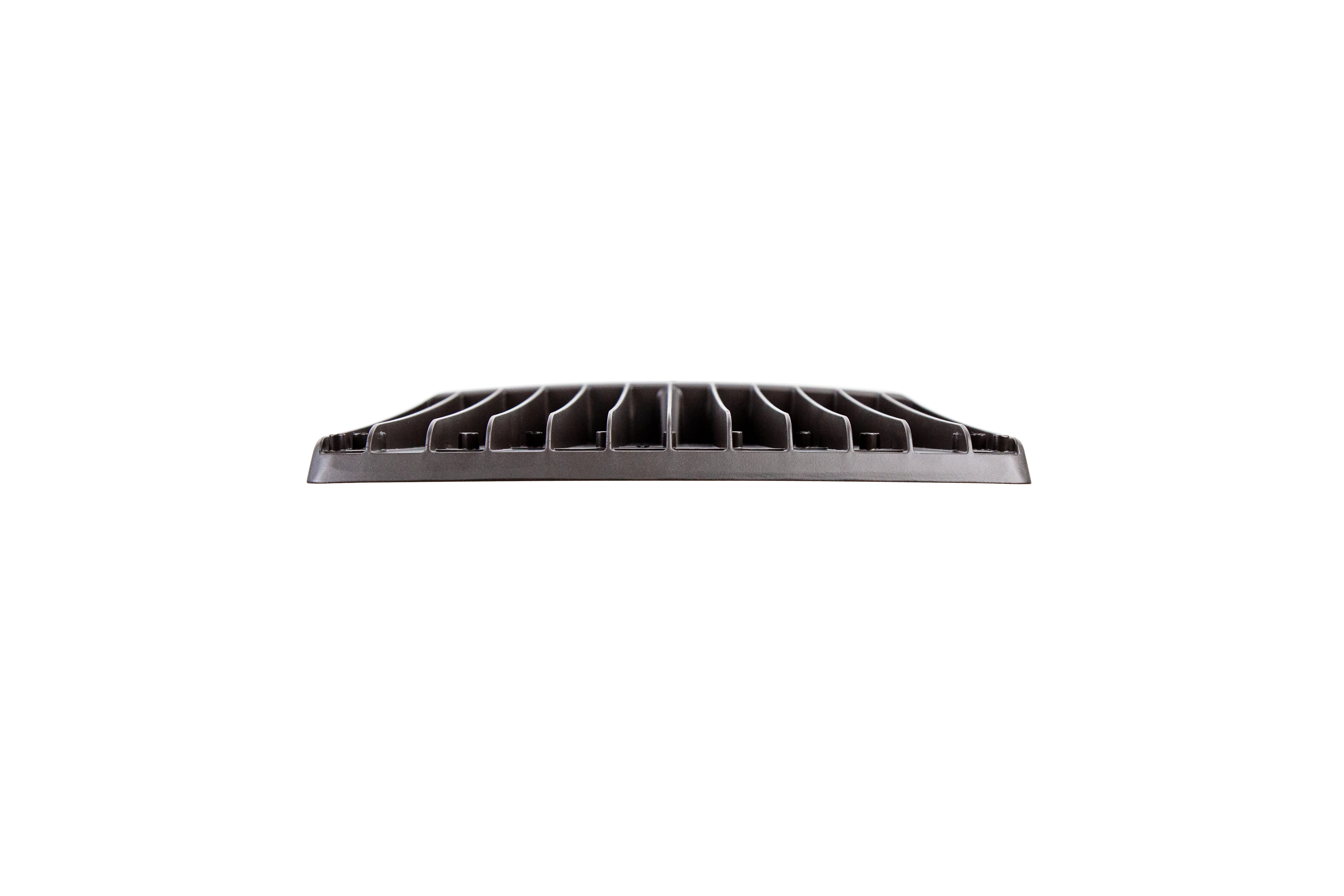

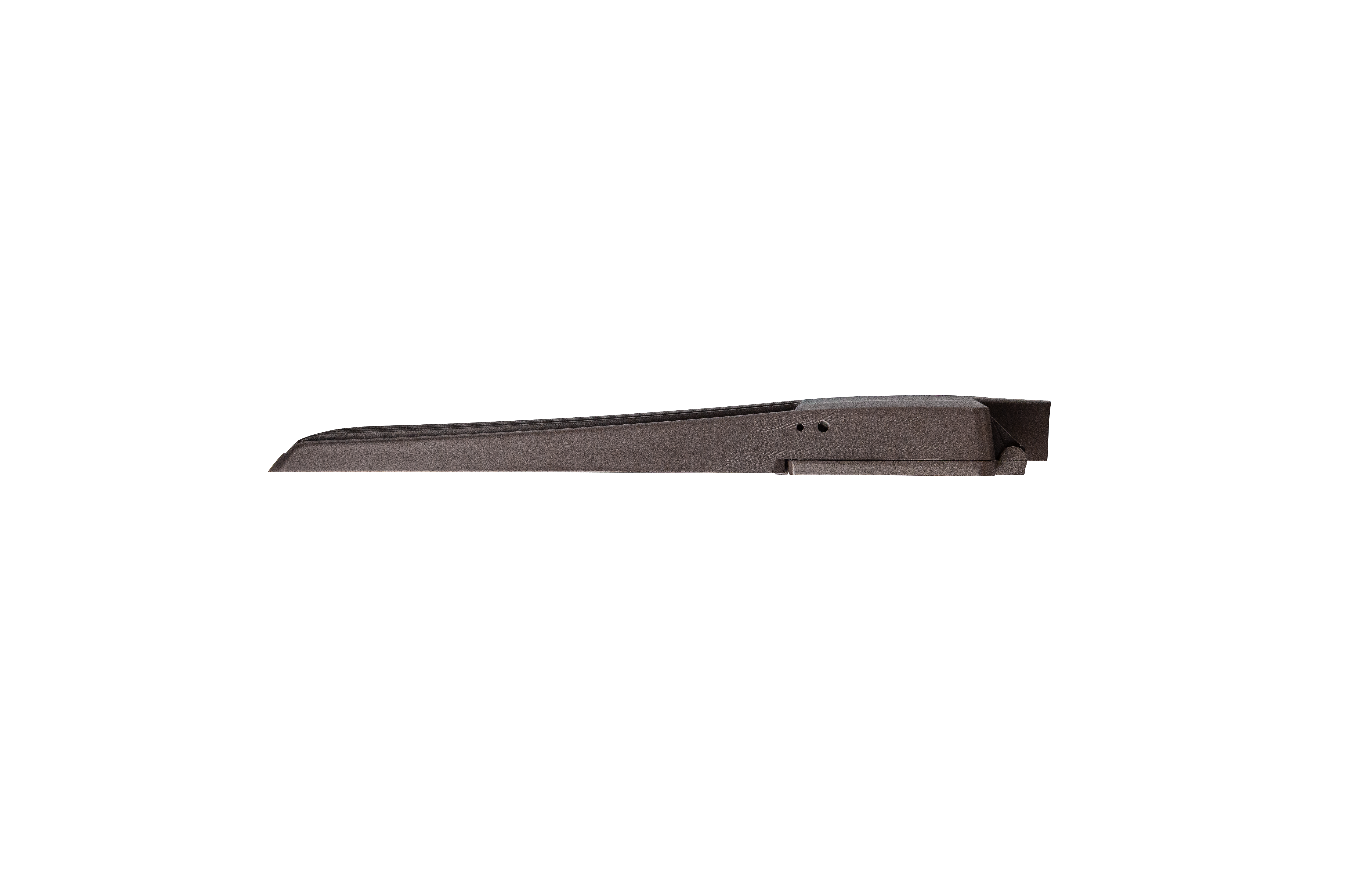

• Heavy-Duty Construction: Premium die-cast aluminum housing with a protective bronze finish rated IP65 for weatherproofing and IK08 for impact resistance.

• Flexible Voltage & Mounting Options: Available in 120-277V and 277-480V configurations with pre-wired 6-foot cords; compatible with 5 versatile mounting kits (sold separately).

• DLC Premium Qualified: Eligible for top-tier utility energy efficiency rebates, cULus listed for wet locations (-40°F to 122°F), and equipped with 6kV input transient surge protection.

Technical Specification Table

Packaging & Logistics Specifications

• Included Hardware: High-Lumen Area Light Body with Pre-Wired 6-Foot Power Cord & Watertight Fittings

• Required Mounting Hardware (Sold Separately): Universal Mount (Arm + Slip-fitter Combo), Adjustable Arm Kit, Slip-fitter Kit, Yoke Kit, or Trunnion Kit

• Optional Field Accessories: Screw-In Photocell/Occupancy Sensor, Sensor Remote Control, Pole Tenons, and Tenon Adapters
