24,000 Lumens Commercial LED Area Light | CCT Selectable | 120-277V | MPALSR-241812L-3CCT

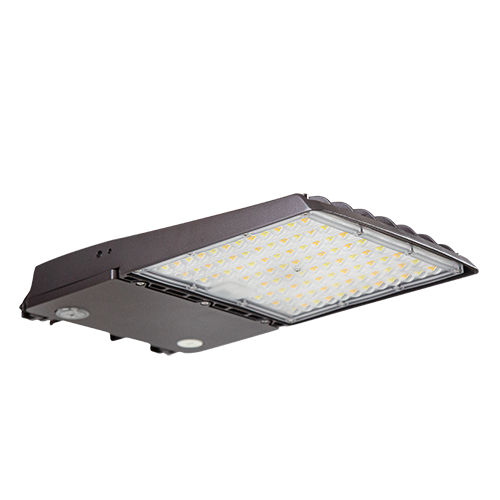

Deliver exceptional outdoor illumination, versatile control, and site-wide adaptability with the Multi-Purpose Sensor-Ready LED Area Light. Constructed with a premium die-cast aluminum housing finished in a durable bronze powder coating, this rugged fixture is built to withstand harsh weather conditions, physical impact, and severe environmental elements. It serves as an ideal high-performance lighting solution for commercial parking lots, automotive dealerships, perimeter security, roadway corridors, pedestrian walkways, and industrial site perimeters.

Engineered with Tri-Lumen and 3-CCT field selectability, this multi-purpose area light allows contractors to customize light output and color temperature directly on site. The MPALSR-241812L-3CCT model delivers a versatile nominal lumen range of 12,267 to 25,747 lumens, while integrated CCT controls allow seamless toggling between 3000K warm white, 4000K neutral white, and 5000K cool white. Offered in specialized Type III (T3) and Type V (T5) optical distributions with high-impact polycarbonate lenses, it ensures precise forward-throw or symmetric 360-degree coverage (CRI >70). Powered by long-life LEDs rated for an outstanding L70 lifespan of 167,000 hours (and L90 life of 51,000 hours), it provides dependable, low-maintenance operation over decades of service.

Designed for modern energy management, the fixture features an integrated screw-in sensor socket that accepts plug-and-play photocells and occupancy motion sensors (sold separately; remote control required for custom sensor programming). Equipped with a 6-foot incoming power cord and watertight compression connectors, it operates reliably across universal 120-277V or high-voltage 277-480V AC ranges with standard 0-10V DC continuous dimming drivers, high power factor (>0.90), low THD (<20%), and 6kV surge protection. Certified to cULus wet location, IP65 ingress protection, IK08 impact resistance, and DLC Premium listing, this fixture supports five distinct mounting options (sold separately) including Universal Arm/Slip-fitter, Adjustable Arm, Slip-fitter, Yoke, and Trunnion mounts.

Key Features:

• Field-Selectable Output & CCT: Toggle between 3 lumen levels (12,000 / 18,000 / 24,000 LM nominal; up to 25,747 actual LM) and 3 color temperatures (3000K / 4000K / 5000K) for maximum project flexibility.

• Screw-In Sensor Ready: Integrated receptacle allows fast, tool-free installation of twist-lock motion and photocell sensors for smart automation.

• Precision Optical Optics: Available in Type III (forward throw/roadway) or Type V (wide square/symmetric) distributions with shatter-resistant polycarbonate lenses.

• Rugged Heavy-Duty Housing: Die-cast aluminum housing with a bronze powder-coat finish rated IP65 for weather resistance and IK08 for impact protection.

• Flexible Power & Mounting Options: Available in 120-277V and 277-480V configurations with 6-foot pre-wired cords; compatible with 5 versatile mounting kits (sold separately).

• DLC Premium & Code Compliant: Qualified for top-tier energy utility rebates, cULus listed for wet locations (-40°F to 122°F), and equipped with 6kV input transient surge protection.

Technical Specification Table

Packaging & Logistics Specifications

• Included Hardware: Area Light Body with Pre-Wired 6-Foot Power Cord & Watertight Fittings

• Required Mounting Hardware (Sold Separately): Universal Mount (Arm + Slip-fitter Combo), Adjustable Arm Kit, Slip-fitter Kit, Yoke Kit, or Trunnion Kit

• Optional Field Accessories: Screw-In Photocell/O
