7,200 Lumens LED Flood Area Light | CCT Selectable | 120/277V | MPAL-KFS

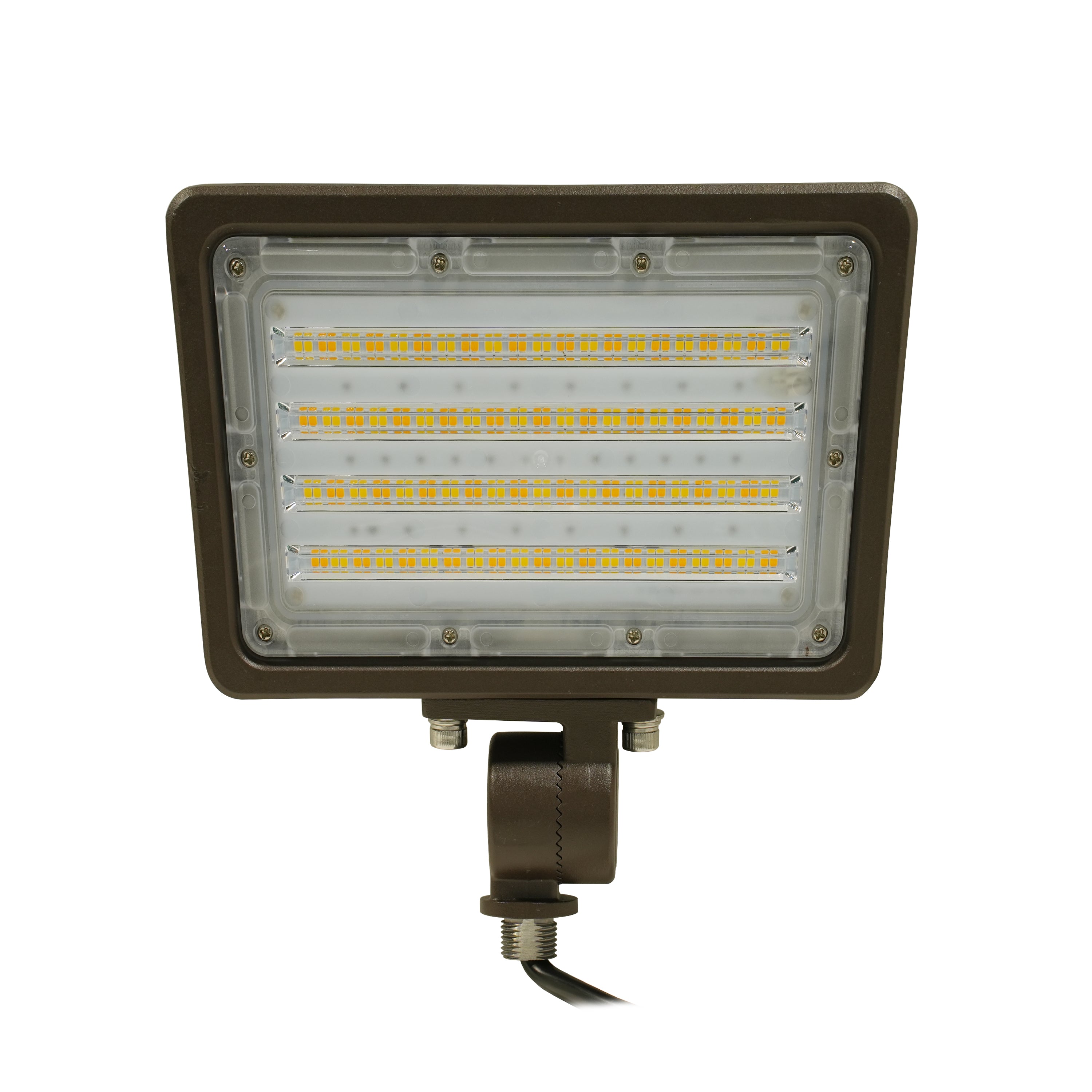

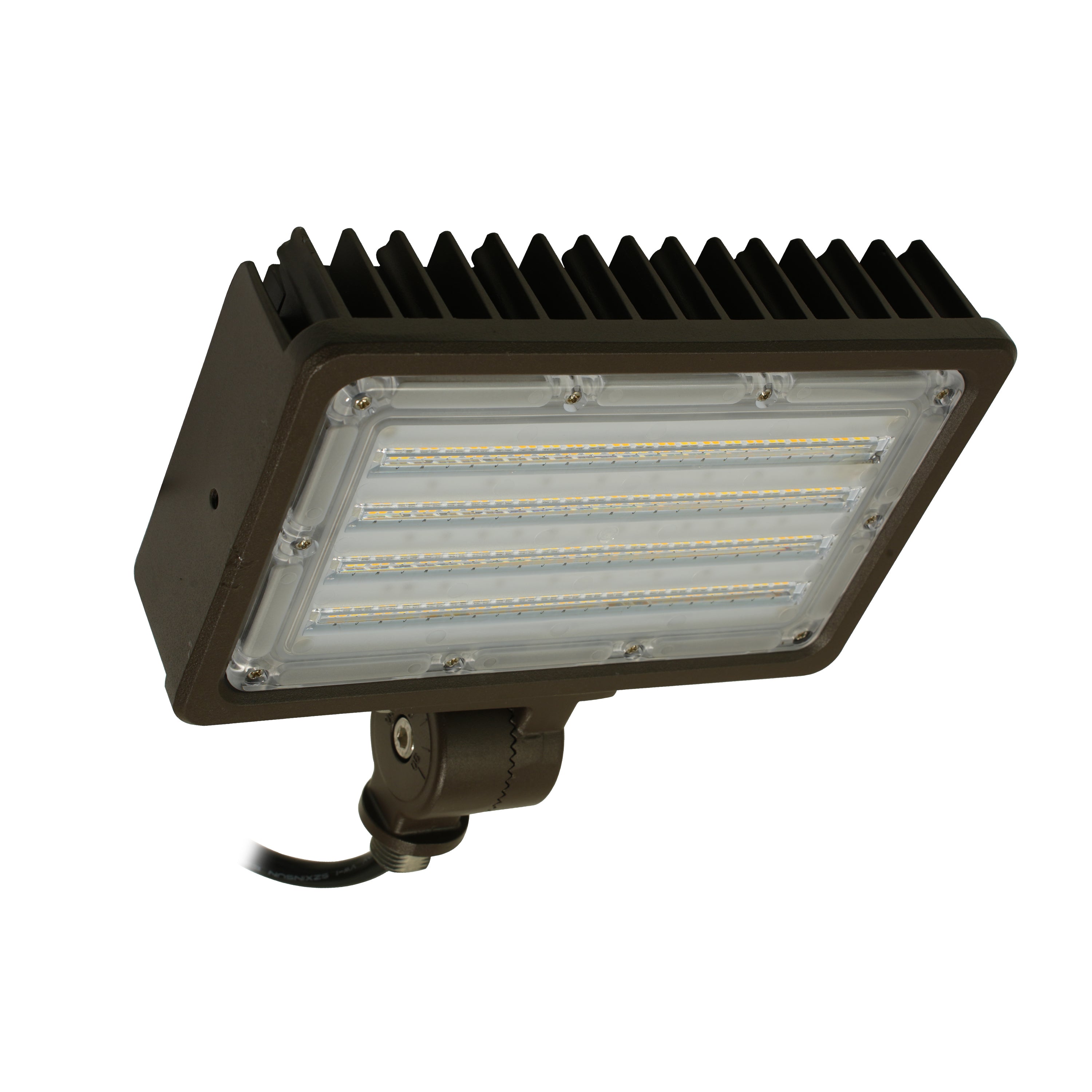

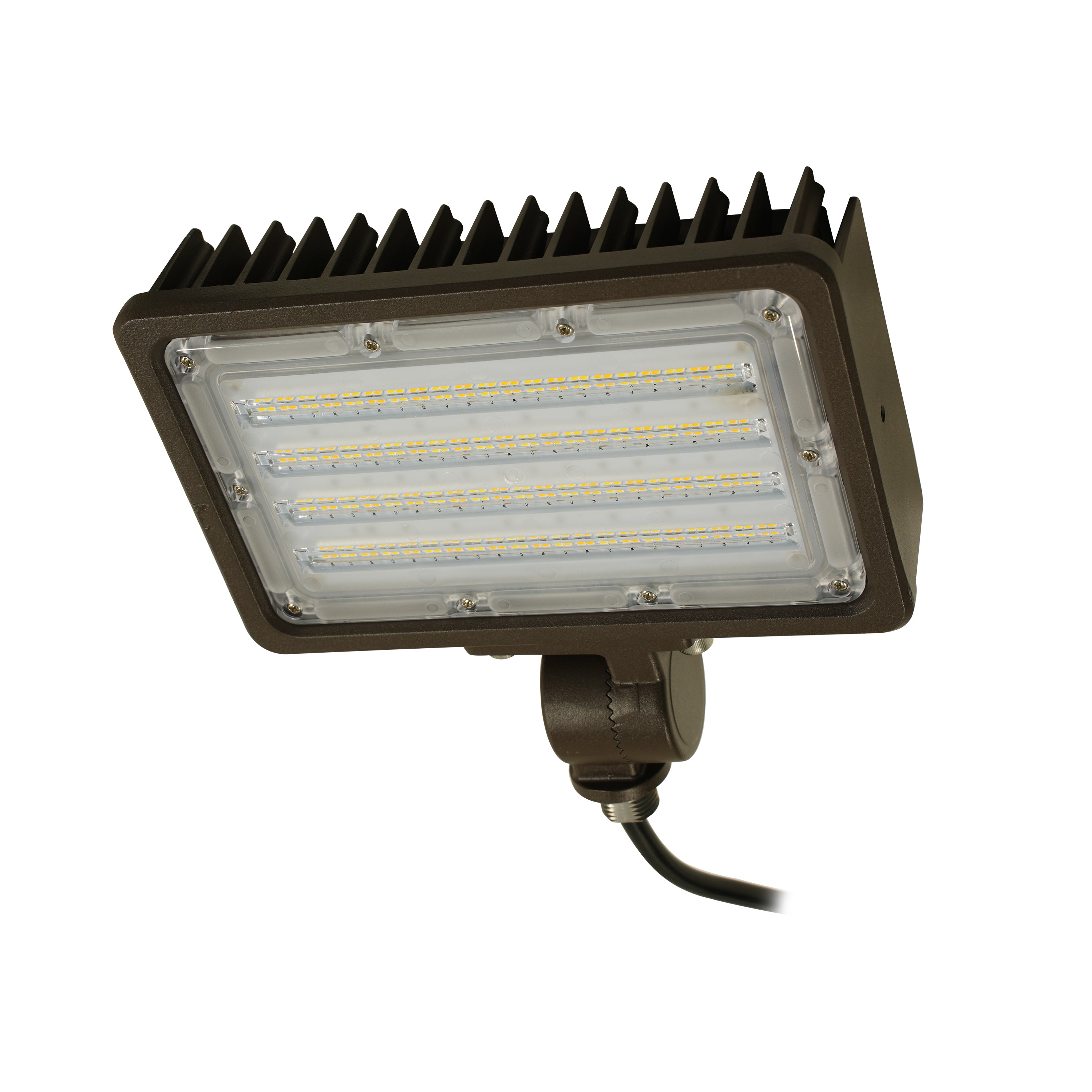

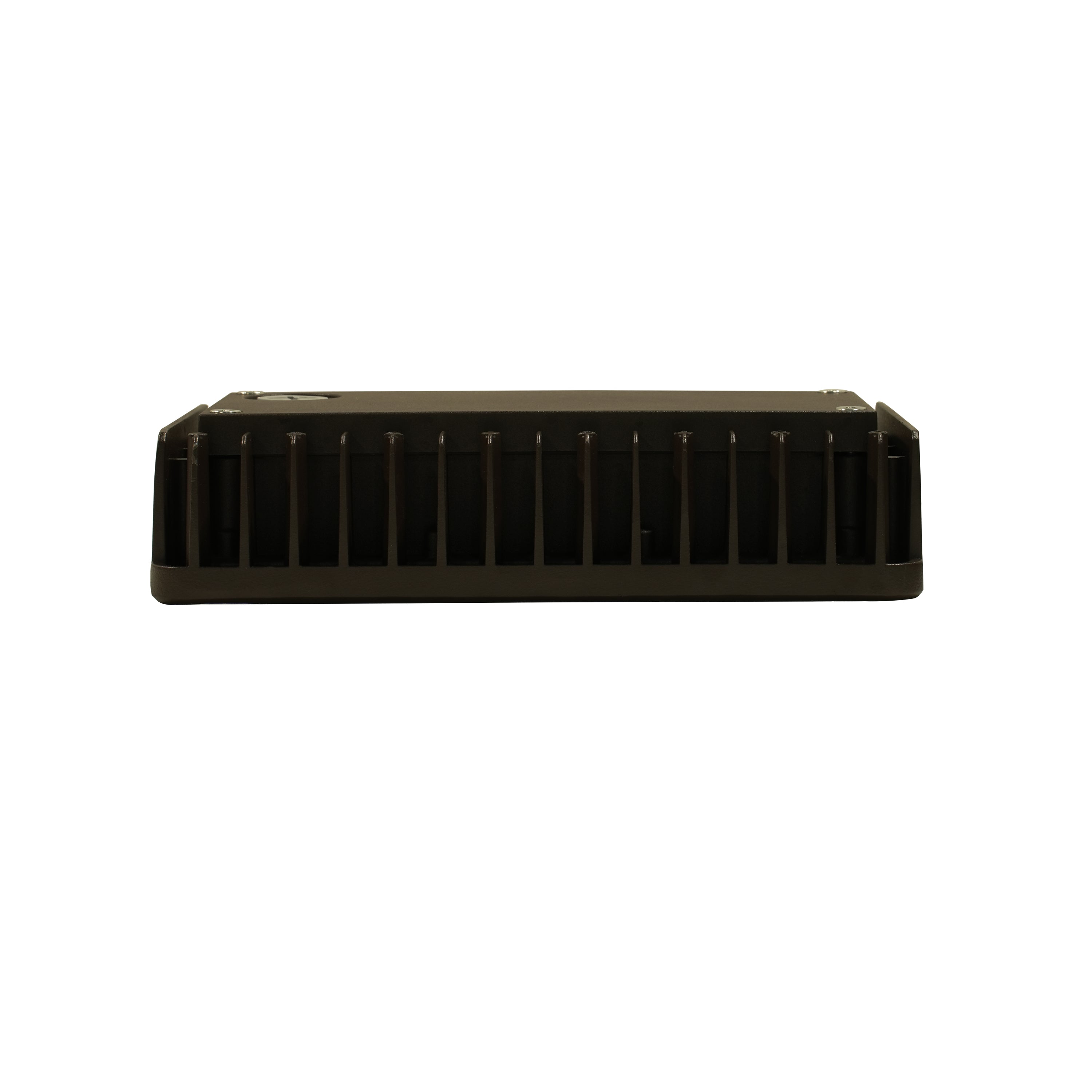

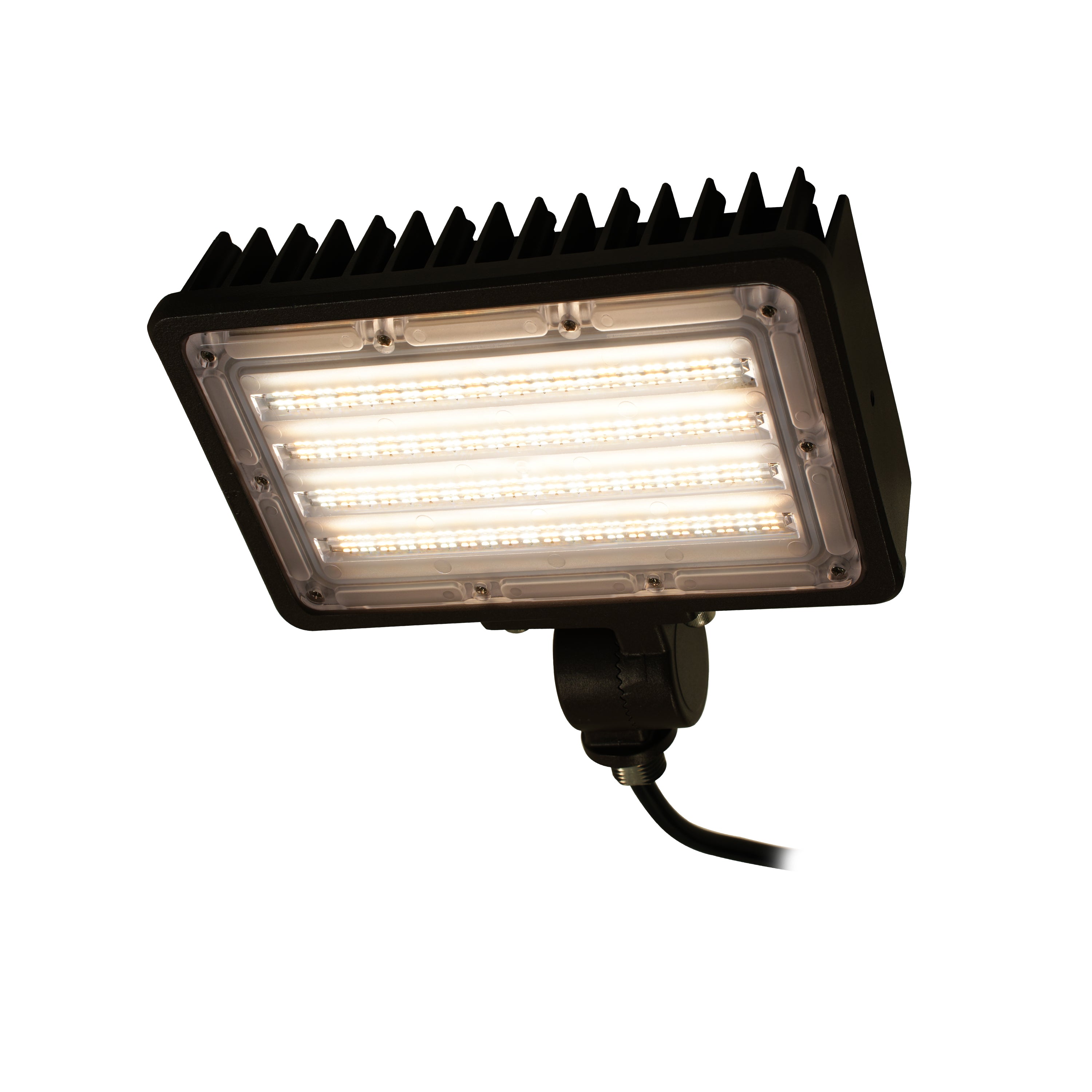

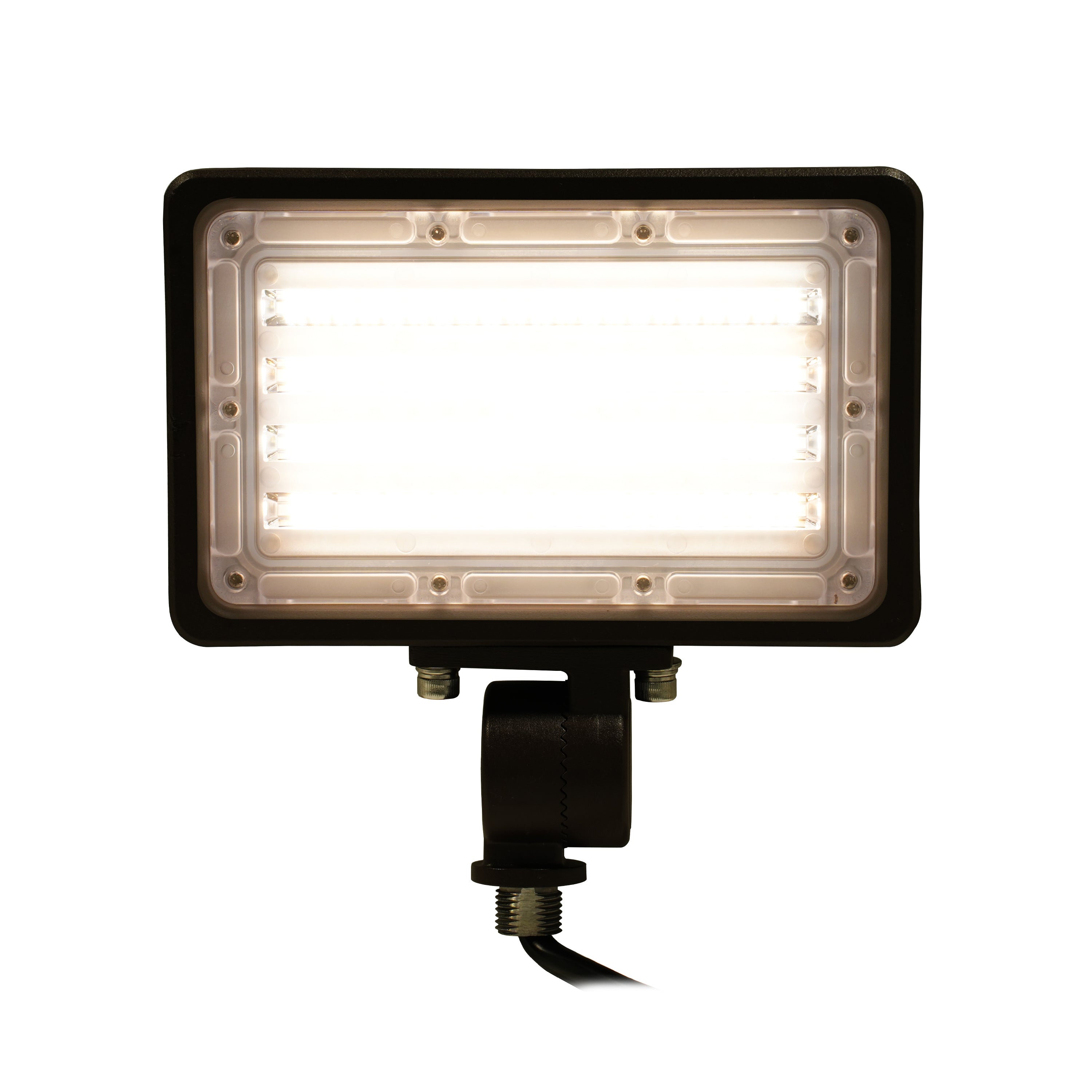

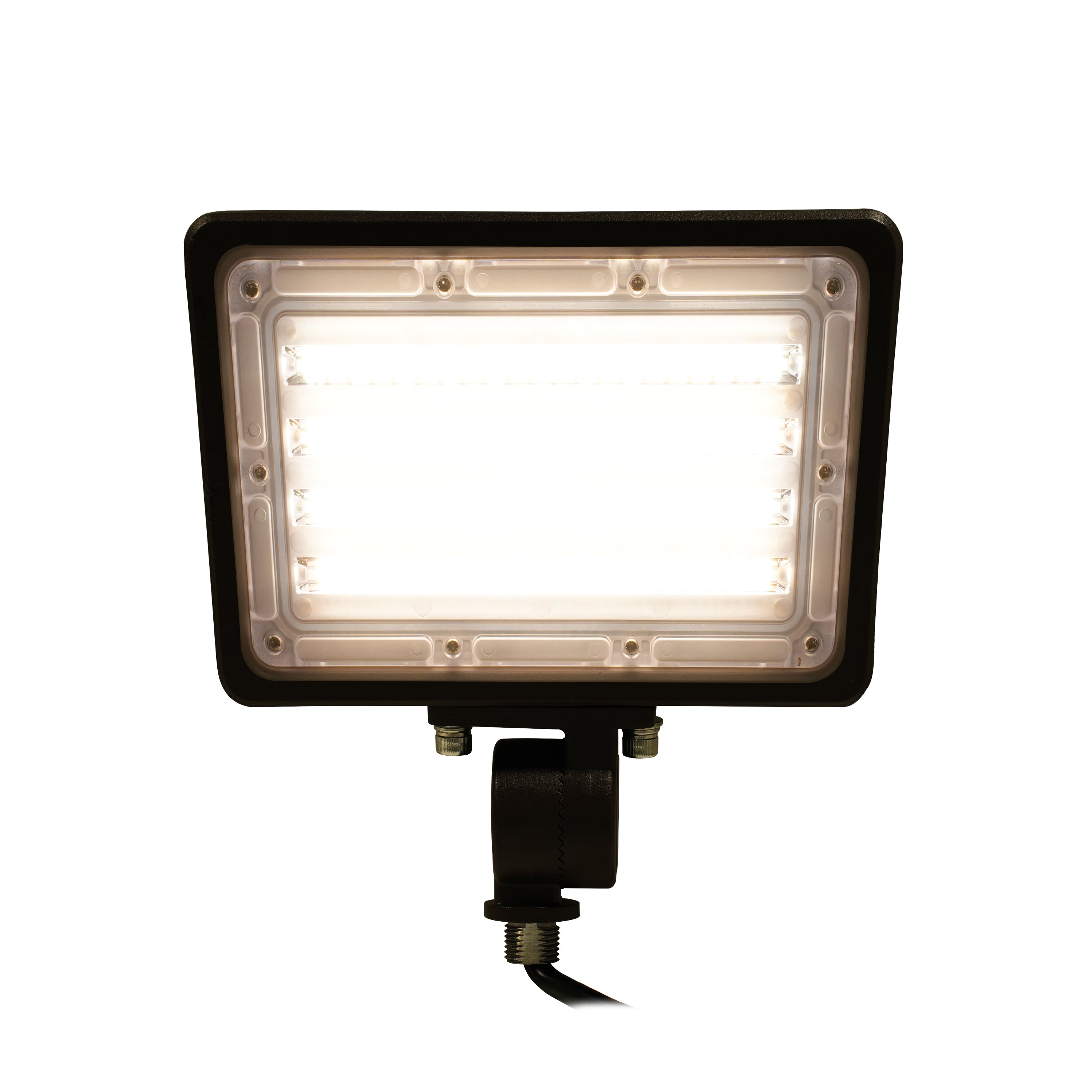

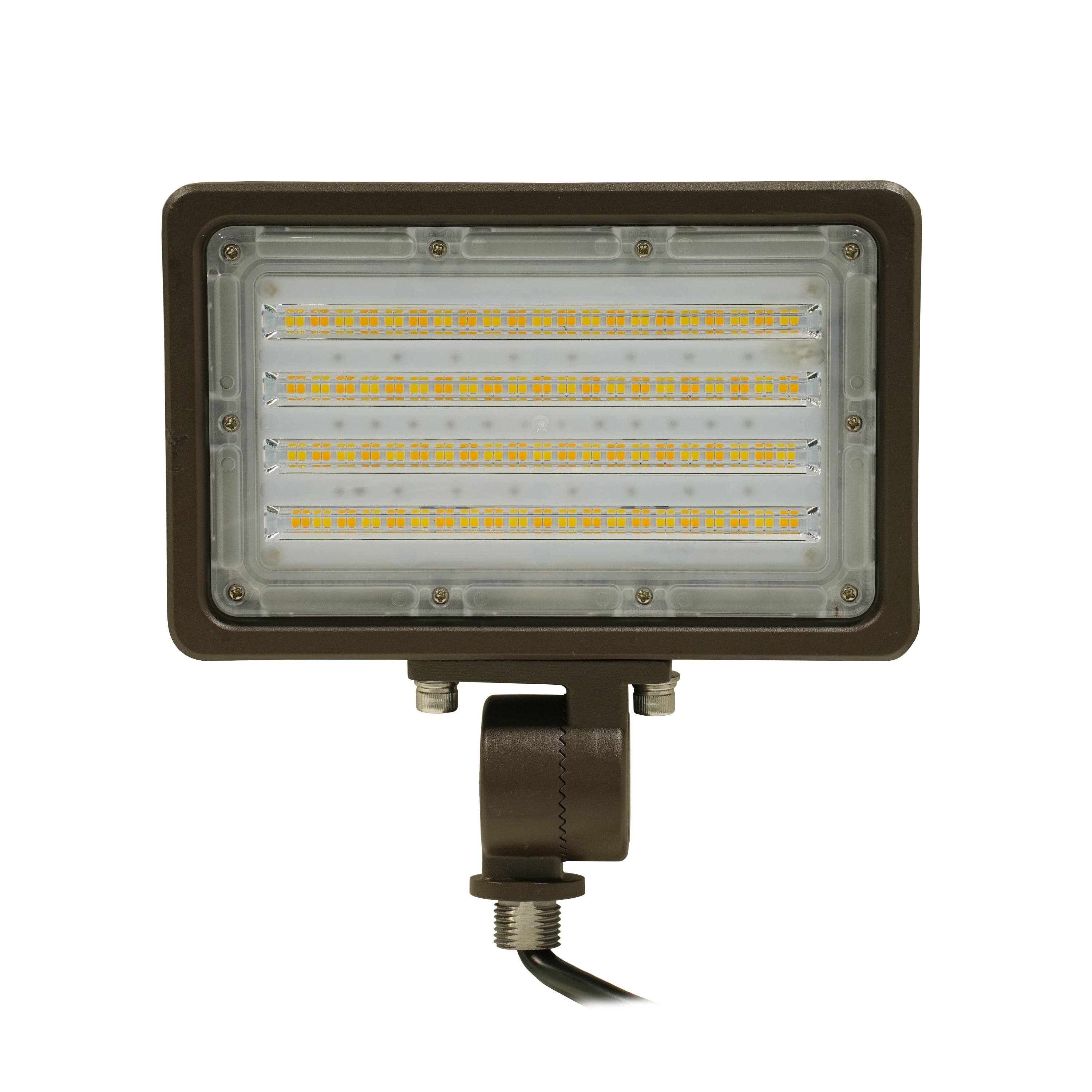

Deliver versatile outdoor illumination, architectural aesthetics, and site-wide performance with the MPAL-KFS Series Multi-Purpose LED Area Light. Constructed from die-cast aluminum with a durable dark bronze powder-coat finish, this luminaire is salt-fog tested for 1,000 hours (ASTM B117) to withstand severe weather, corrosive coastal atmospheres, and rugged industrial conditions. It provides an ideal commercial lighting solution for parking areas, pathways, building facades, loading docks, ground-mounted sign lighting, and general site perimeters.

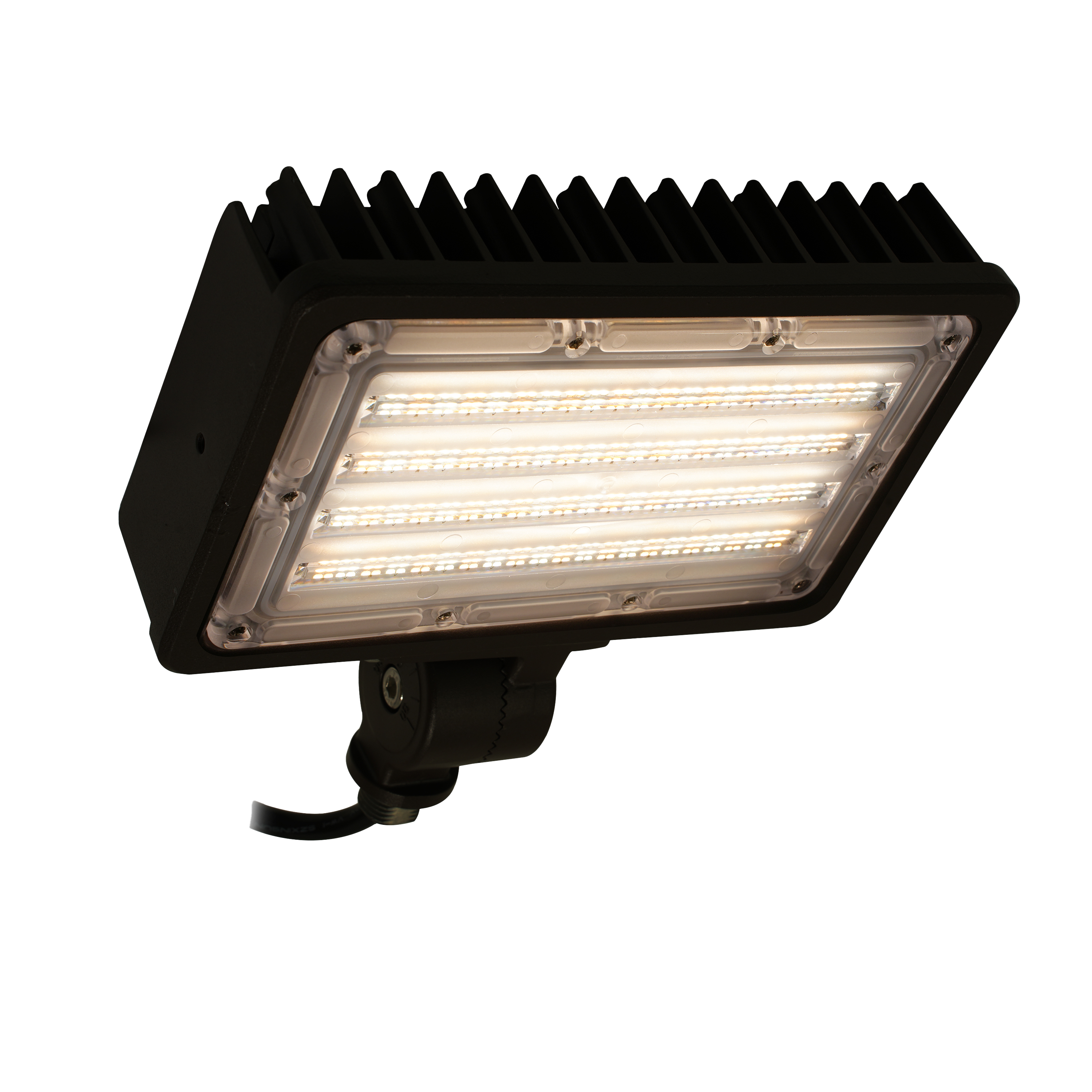

Featuring 3-CCT field selectability, the MPAL-KFS series allows contractors to customize color temperature on site, toggling between 3500K (warm/neutral white), 4000K (neutral white), and 5000K (cool white). Available in 2L, 4L, and 7L lumen packages producing between 2,000 and 7,200 nominal lumens with efficacy up to 156 lumens per watt (LPW), this fixture delivers crisp visibility (CRI >80). Standard optics offer a versatile Type V IES roadway distribution or a wide 7H x 7V NEMA floodlight distribution, protected by an IK10 impact-rated polycarbonate lens and a watertight silicone rubber gasket seal. Powered by long-life LEDs rated for up to 149,000 hours (L70), it ensures decades of low-maintenance operation.

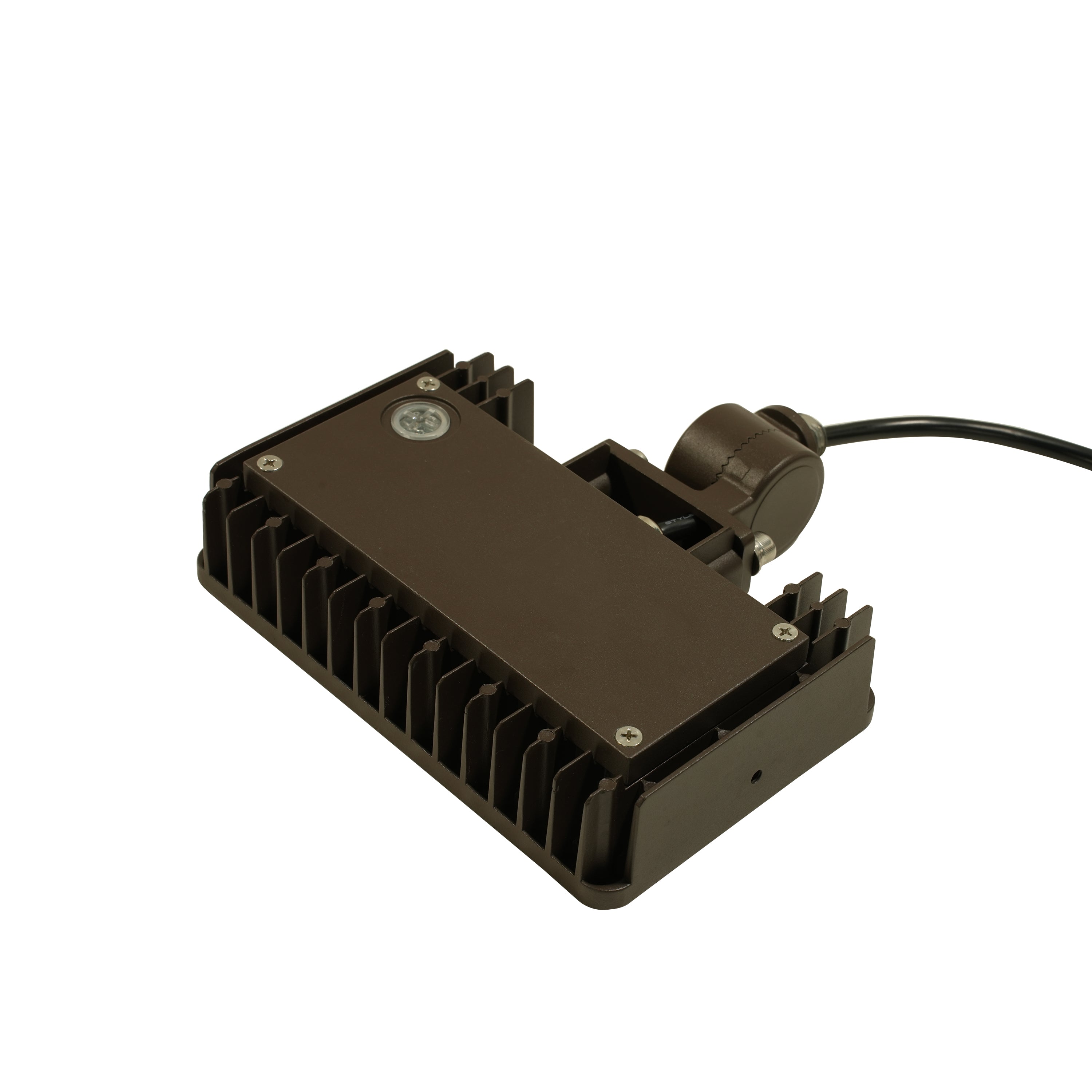

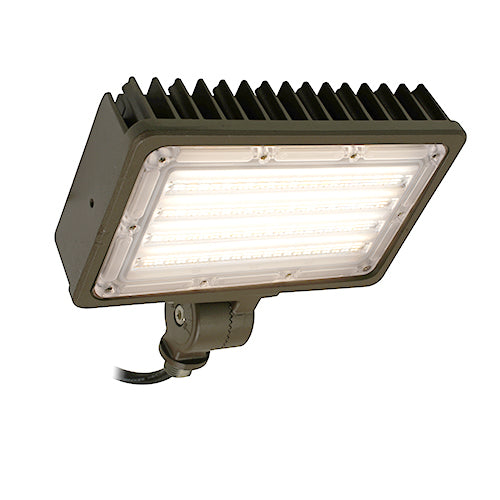

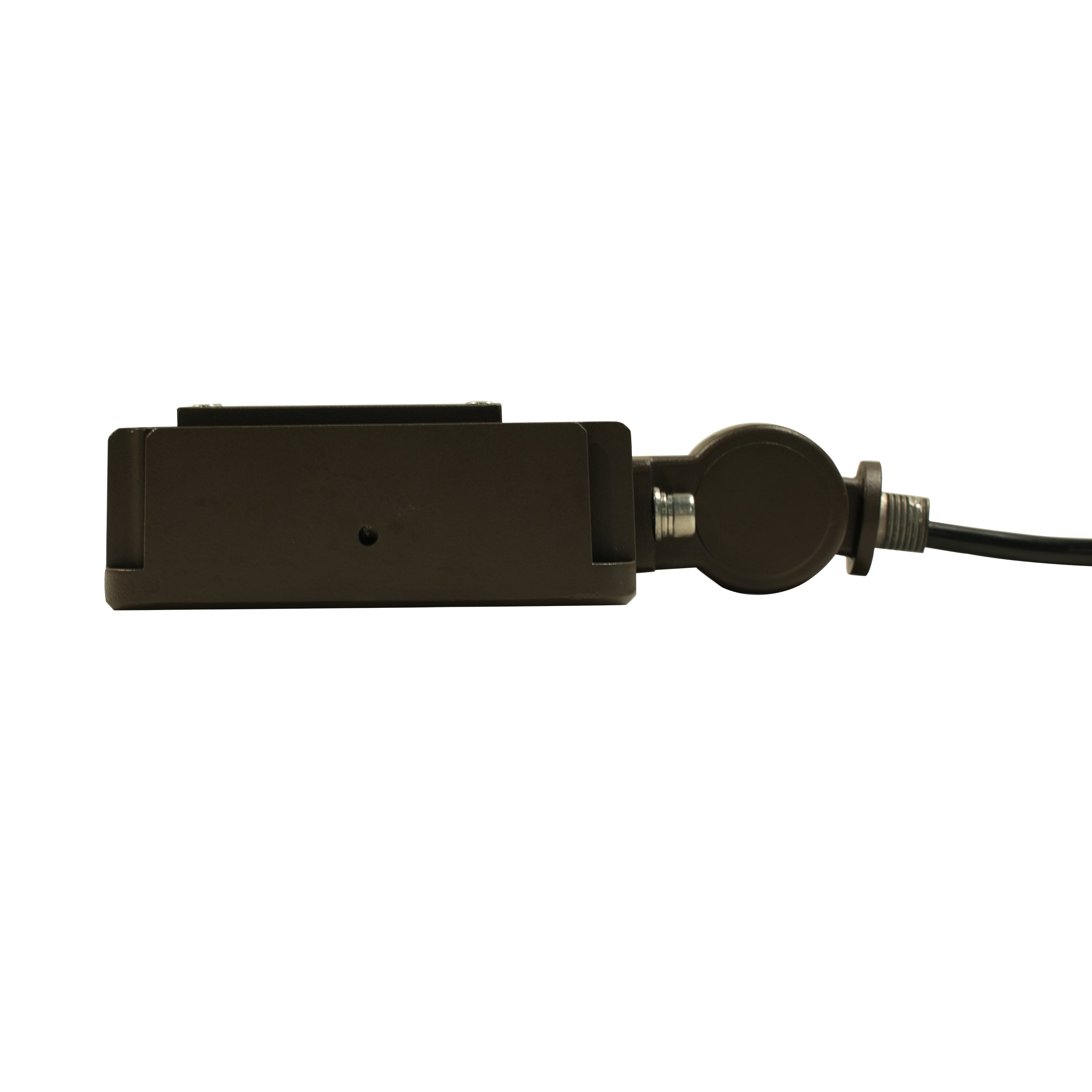

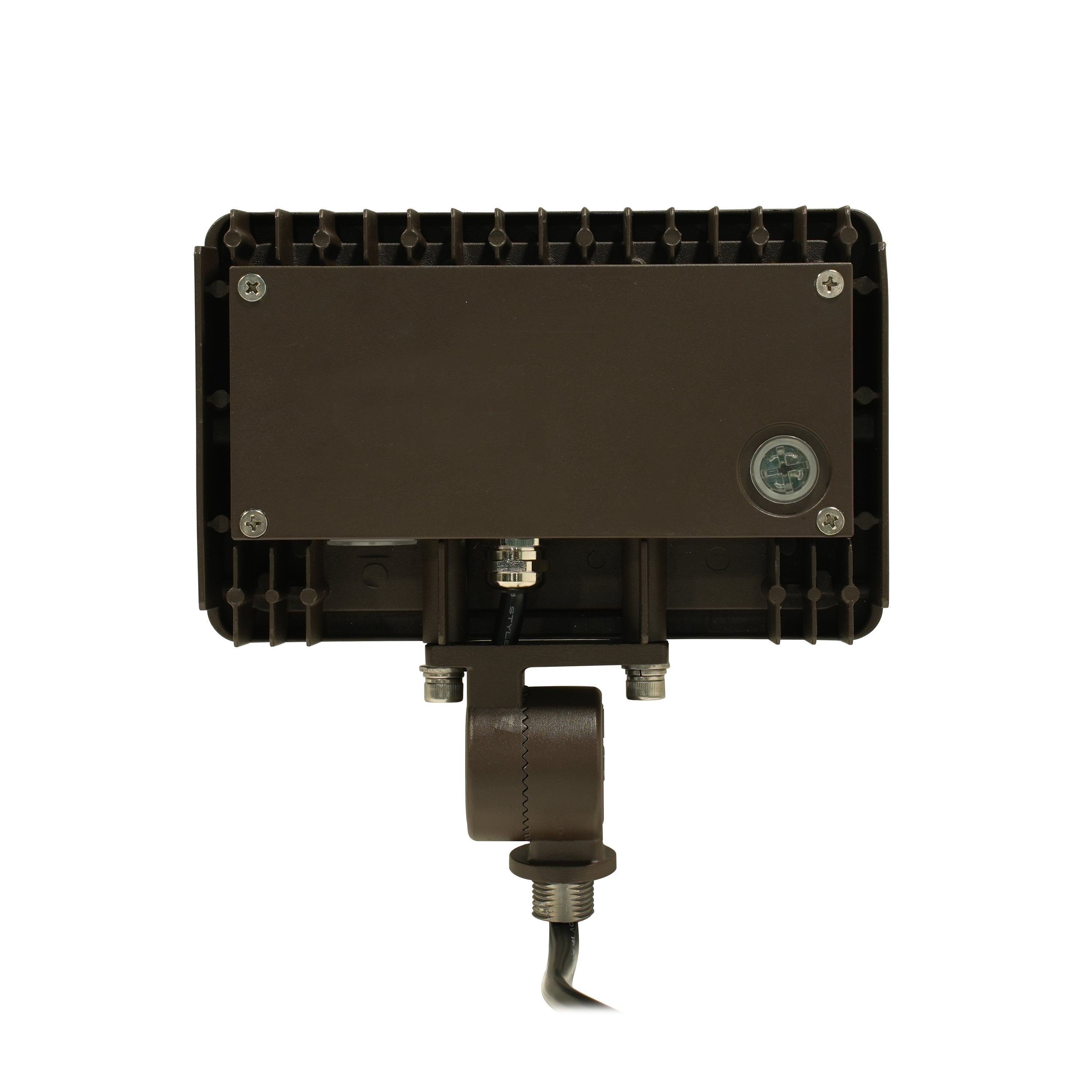

Designed for fast installation in both new construction and retrofit projects, the fixture comes standard with a die-cast aluminum knuckle mount for standard junction box attachment. Optional field accessories include a secure yoke-mount for flat surface installation (available for 4L and 7L models) and a line-voltage ground stake for landscape illumination. Operating on universal line voltage (120-277V AC at 50-60Hz) with 0-10V DC continuous dimming drivers, high power factor (>0.90), low THD (<20%), and 4kV surge immunity protection (EN61000-4-5), this luminaire is DLC Premium qualified, cULus listed for wet locations (-40°C to 50°C / -40°F to 122°F), IP65 ingress rated, and backed by a 5-year warranty.

Key Features:

• Field-Selectable 3-CCT Versatility: Easily switch between 3500K, 4000K, and 5000K color temperatures directly on site.

• Efficient Output Packages: 2L, 4L, and 7L models deliver 2,000 to 7,200 lumens with outstanding efficacy (up to 156 LPW).

• Dual Distribution Optics: Delivers Type V roadway distribution and 7H x 7V NEMA floodlighting coverage via an IK10 impact-resistant lens.

• Corrosion & Weather-Resistant Build: Die-cast aluminum housing finished in dark bronze, salt-fog tested for 1,000 hours (ASTM B117), and IP65 rated against dust and water.

• Flexible Mounting Options: Standard knuckle mount included for junction boxes; optional yoke mount (4L/7L) and ground stake available (sold separately).

• DLC Premium & Code Compliant: cULus wet location listed (-40°F to 122°F), FCC Part 15 Class A compliant, equipped with 4kV surge protection, and qualified for top-tier utility rebates.

Technical Specification Table

Packaging & Logistics Specifications

• Included Hardware: Area Light Body with Standard Die-Cast Aluminum Knuckle Mount

• Optional Mounting Accessories (Sold Separately): Yoke Mount Kit (compatible with 4L and 7L models), Line-Voltage Ground Stake for landscape installations
