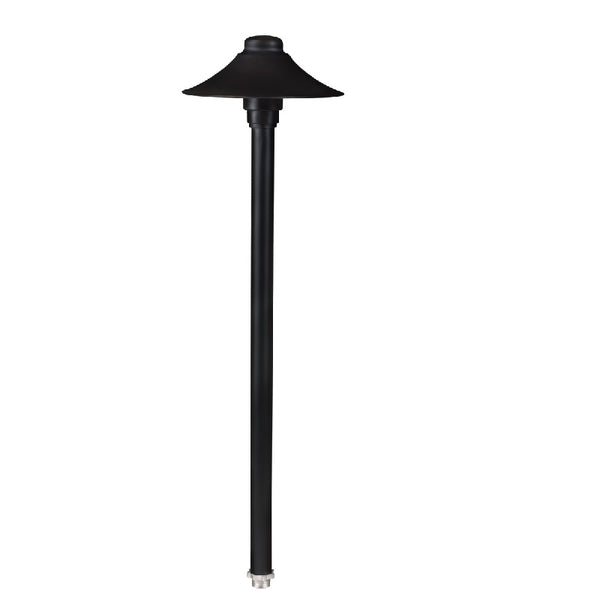

Umbrella Path Light with 18″ & 12" Stem | Aluminum 12V T3
| SKU(s) | CL-639-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6-3/8" |
| Length | 6-3/8" |
| Height | 12" / 18" |
| Diameter | 6-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Umbrella 18″ Stem Path Light delivers elegant outdoor illumination with a timeless umbrella-style design, perfect for walkways, driveways, gardens, patios, and landscaped pathways. Constructed from durable die-cast aluminum, this architectural-grade fixture ensures long-lasting reliability and blends seamlessly with outdoor environments.
The fixture features a clear tempered glass lens with a protective cover, safeguarding against sprinkler water while maintaining optimal light output. Its fixed ceramic bi-pin socket allows for quick, tool-free lamp installation, supporting 12V T3 lamps up to 20W halogen or LED equivalents.
Designed for simple installation, the Umbrella Path Light comes prewired with a 3-ft 18-2 SPT2-W direct burial cord and includes a sturdy injection-molded ground spike with a ½” NPT threaded female hub for secure mounting.
✔ Available in Black or Bronze finishes
✔ Classic umbrella-style design for elegant pathway lighting
✔ Die-cast aluminum housing with 18″ stem
✔ Tempered glass lens with sprinkler protection
✔ Fixed ceramic bi-pin socket with tool-free lamp access
✔ Supports 12V T3 lamps, 20W halogen max / LED equivalent
✔ Prewired 3-ft direct burial cord for fast setup
✔ Injection-molded ground spike with ½” NPT hub
✔ Voltage range: 9V–17V | Requires 12V remote transformer
✔ 5-year warranty on fixture housing against defects
$34.25 /each
| SKU(s) | CL-515-BK |
| Color | Black | Bronze | Granite | Rust | White |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black, Bronze, Granite, Rust, & White |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/4" |
| Length | 2-1/4" |
| Height | 8" |
| Diameter | 2-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$79.25 /each
| SKU(s) | CL-631-VG |
| Color | Green |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Green |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 30" |
| Diameter | 6" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$189.00 /each
| SKU(s) | CL-345-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-3W |
| Voltage | 10-15V |
| Lumens | 15LM - 250LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 5-1/2" |
| Height | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$532.85 /each
| SKU(s) | CL-744-BT-T-AB-18 |
| Color | Antique Bronze | Gun Metal |
| Size | 18" | 24" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 24" / 18" |
| Diameter | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
