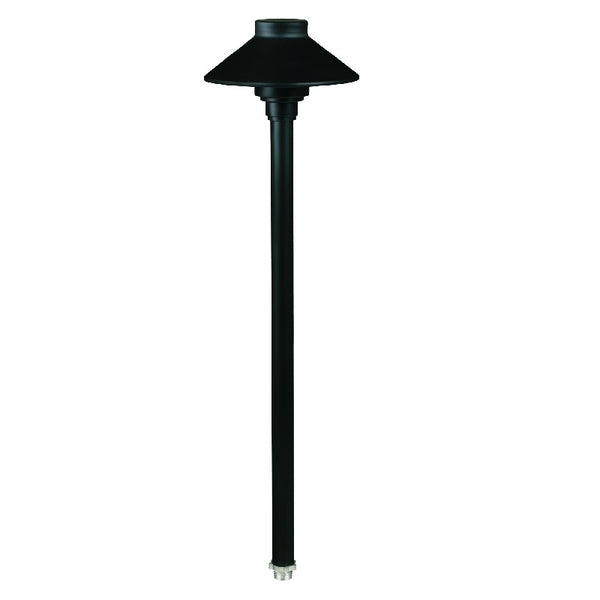

Umbrella 18″ & 12" Path Light | Aluminum 12V T3 Lamp
| SKU(s) | CL-641-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 12" / 18" |
| Diameter | 6" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Umbrella 18″ Stem Path Light combines durability, style, and reliable illumination, making it ideal for walkways, gardens, patios, driveways, and outdoor living spaces. Its wider umbrella-style shade provides excellent light spread and glare control, creating safe and visually appealing pathways.
Built from die-cast aluminum with a standard 18″ stem, this architectural-grade fixture ensures strength and weather resistance. The clear tempered glass lens with protective cover shields the lamp from sprinkler water while maintaining bright and consistent illumination.
Featuring a high-quality ceramic bi-pin socket, the Umbrella Path Light supports 12V T3 lamps (20W halogen max or LED equivalent) with tool-free lamp access for easy maintenance.
The fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord and includes a durable injection-molded ground spike with ½″ NPT threaded female hub for quick installation.
✔ Umbrella-style shade provides excellent light spread for safe, elegant path lighting
✔ Die-cast aluminum housing with 18″ stem in Black or Bronze finish
✔ Clear tempered glass lens with sprinkler protection
✔ Ceramic bi-pin socket with easy tool-free lamp access
✔ Supports 12V T3 lamps (20W halogen max / LED equivalent)
✔ Prewired 3-ft direct burial cord for hassle-free installation
✔ Includes plastic ground spike with ½″ NPT hub
✔ Voltage: 9V–17V | Requires 12V transformer
✔ 5-year warranty on housing against manufacturer defects
$68.45 /each
| SKU(s) | CL-639-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6-3/8" |
| Length | 6-3/8" |
| Height | 12" / 18" |
| Diameter | 6-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$34.25 /each
| SKU(s) | CL-515-BK |
| Color | Black | Bronze | Granite | Rust | White |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black, Bronze, Granite, Rust, & White |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/4" |
| Length | 2-1/4" |
| Height | 8" |
| Diameter | 2-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$216.00 /each
| SKU(s) | CL-395-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 50LM - 410LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 8-3/4" |
| Height | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$144.00 /each
| SKU(s) | CL-450-BT-BK |
| Color | Black |
| Color | Black |
| Wattage | 1-4W |
| Voltage | 10-15V |
| Lumens | 15LM - 250LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7-3/4" |
| Height | 3" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
