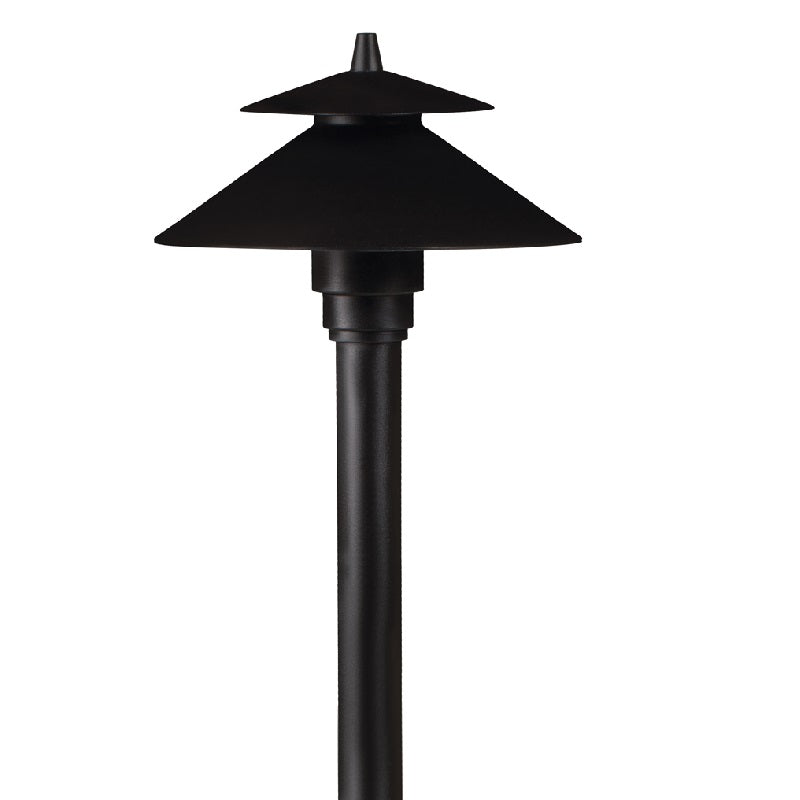

Umbrella 18″ & 12" Path Light | Aluminum 12V T3 Lamp
| SKU(s) | CL-661-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 12" / 18" |
| Diameter | 6" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Umbrella 18″ Stem Path Light is an architectural-grade outdoor fixture designed to provide elegant and functional illumination for pathways, gardens, patios, and landscaped areas. Its umbrella-shaped shade ensures wide, even light distribution while minimizing glare, making it perfect for enhancing safety and outdoor ambiance.
Crafted from durable die-cast aluminum with a standard 18″ stem, this path light is built for long-lasting performance in outdoor environments. The clear tempered glass lens with a protective cover safeguards the lamp from sprinkler water and weather exposure while maintaining consistent brightness.
Equipped with a premium fixed ceramic bi-pin socket, the Umbrella Path Light supports 12V T3 lamps (20W halogen max or LED equivalent) and allows for tool-free lamp replacement.
The fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord for quick installation and includes a plastic ground spike with ½″ NPT threaded female hub.
✔ Umbrella shade design delivers broad, glare-free lighting coverage
✔ Die-cast aluminum housing with 18″ stem in Black or Bronze finishes
✔ Clear tempered glass lens with sprinkler protection
✔ Ceramic bi-pin socket for secure lamp connection
✔ Supports 12V T3 lamp (20W halogen max / LED equivalent)
✔ Prewired with 3-ft direct burial cord for easy installation
✔ Includes durable ground spike with ½″ NPT hub
✔ Voltage range 9V–17V | Requires 12V transformer
✔ Backed by a 5-year warranty against housing defects
$43.25 /each
| SKU(s) | CL-504-BZ |
| Color | Black |
| Lamp | No-Lamp | 2.5W |
| Color | Black |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 180LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/4" |
| Length | 2-1/4" |
| Height | 8-1/4" |
| Diameter | 2-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$72.00 /each
| SKU(s) | L-EDT3-2W-BT |
| Color | Black |
| Wattage | 0.5W - 2W |
| Voltage | 9V-17V AC & DC |
| Lumens | 10LM - 120LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 3/4" |
| Length | 3/4" |
| Height | 1-1/4" |
| Diameter | 3/4" |
| LED Life | 50.000 Hrs |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$46.85 /each
| SKU(s) | CL-509-BZ |
| Color | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 5-1/2" |
| Height | 8-1/2" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$35.15 /each
| SKU(s) | CL-503-BK |
| Color | Black | Green |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Green |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3" |
| Length | 3" |
| Height | 7-3/4" |
| Diameter | 3" |
| LED Life | 50.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
