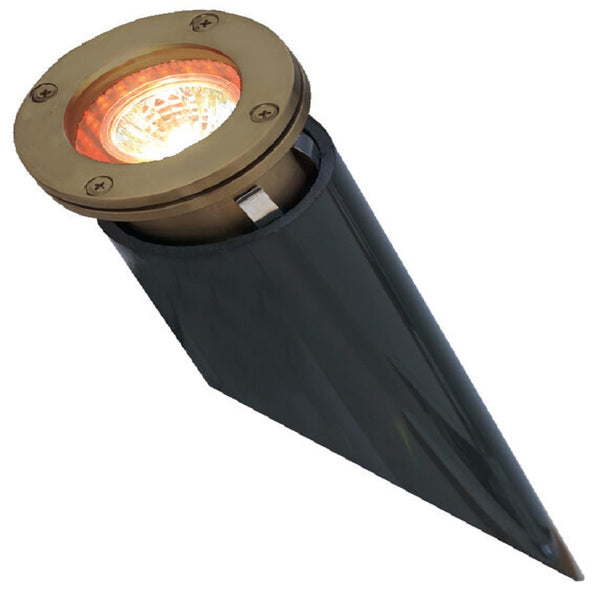

Lensed In-Ground Well Light with PVC Sleeve | MR16 12V
| SKU(s) | CL-201-AB |
| Color | Antique Bronze | Stainless Steel |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze & Stainless Steel |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K & 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 14-1/2 |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

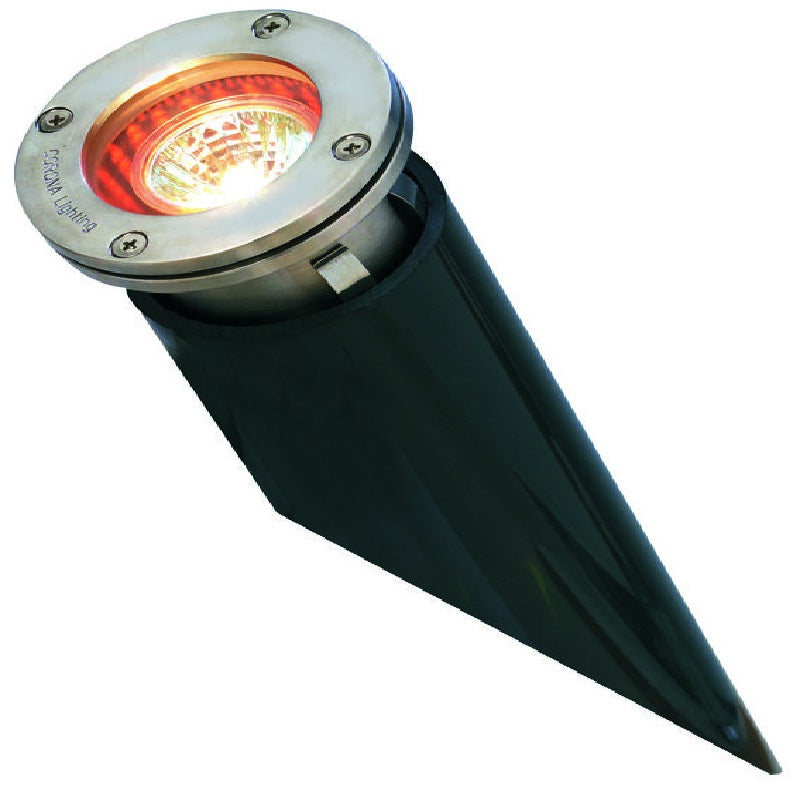

Illuminate your outdoor spaces with the Lensed Well Light with PVC Sleeve, a high-performance architectural-grade in-ground fixture designed for durability and precision. Available in cast brass with an antique bronze finish and 316 marine-grade stainless steel, this uplight offers both corrosion resistance and a sleek, professional appearance for high-end landscape lighting applications.
This well light is compatible with MR-16 lamps (12V, 50W max) and comes prewired with a 3-ft direct burial cord, allowing quick and reliable installation. The fixture mounts securely within the included PVC sleeve, which is ideal for direct burial or concrete encasement applications. Stainless steel retention clips hold the fixture in place inside the sleeve, providing stability and ease of maintenance.
Equipped with a clear, heat-resistant tempered convex glass lens, this well light ensures optimal beam distribution and protection. A flat lens is also included, offering flexibility for varying aesthetic and performance needs. The ceramic bi-pin socket includes a retention clip to secure the lamp in position, supporting voltage ranges from 9V to 17V when using LED lamps.
Designed for long-lasting performance in challenging environments, this fixture includes a limited lifetime warranty on the housing and is ideal for uplighting trees, architectural features, columns, signs, and more.
$163.85 /each
| SKU(s) | CL-307-AB |
| Color | Antique Bronze |
| Size | 30" | 50" | 100" |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 4-1/2" |
| Length | 3-1/4" |
| Height | 3-1/2" |
| Diameter | 3-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$109.85 /each
| SKU(s) | CL-393-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/4" |
| Length | 2-1/4" |
| Height | 5" |
| Diameter | 2-1/4" |
| LED Life | 50.000 Hrs |
| Wire | a 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$217.85 /each
| SKU(s) | CL-633-BT-AB-12 |
| Color | Antique Bronze |
| Size | 12" | 18" |
| Color | Antique Bronze |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 6" |
| Length | 6" |
| Height | 17" / 23" |
| Diameter | 6" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$75.65 /each
| SKU(s) | CL-514C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Raw Copper |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2" |
| Length | 2" |
| Height | 8-1/2" |
| Diameter | 2" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
