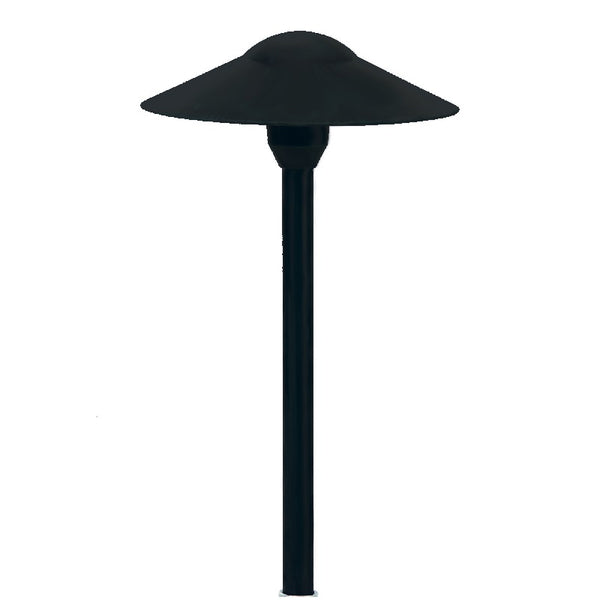

Large Umbrella Light | Aluminum SCB 12V SCB Lamp | Black & Bronze
| SKU(s) | CL-616-BK |
| Color | Black | Bronze | Granite |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze & Granite |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 8-1/4" |
| Length | 8-1/4" |
| Height | 14-3/4" |
| Diameter | 8-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Large Umbrella Area Light delivers elegant, wide-spread illumination for pathways, patios, gardens, and outdoor living spaces. Crafted from durable die-cast aluminum, this value-grade fixture is available in Black and Bronze finishes, making it versatile for residential or commercial landscapes.
Designed with a clear polycarbonate sprinkler-guard lens, the fixture ensures long-term weather resistance and protection from outdoor elements. It features a tool-free S.C. bayonet socket for simple lamp installation and maintenance.
Prewired with a 3-ft 18-2 SPT2-W direct burial cord, the Large Umbrella Light comes complete with an 8.5" ABS ground spike for secure mounting. This fixture operates on 12V SCB lamps up to 27W (halogen max, LED compatible – lamp not included) and requires a remote 12V transformer (sold separately).
✔ Die-cast aluminum housing for durability
✔ Available in Black & Bronze finishes
✔ Clear polycarbonate sprinkler-guard lens for weather protection
✔ SCB socket with easy tool-free lamp access
✔ Prewired with 3-ft burial cord for quick installation
✔ Includes 8.5" ABS ground spike with ½" NPT male hub
✔ One-year warranty against manufacturer’s defects
$73.85 /each

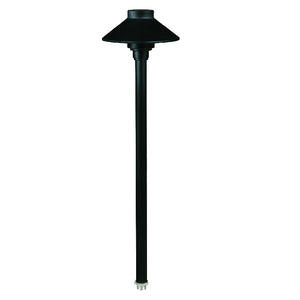

| SKU(s) | CL-641-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 12" / 18" |
| Diameter | 6" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$32.45 /each
| SKU(s) | CL-505-BK |
| Color | Black | Bronze | Granite | Rust | White |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black, Bronze, Granite, Rust, White |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 9.25" |
| Diameter | 2-1/2" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$46.85 /each
| SKU(s) | CL-523-BK |
| Color | Black | Bronze | Silver |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black, Bronze, Silver |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 4" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$90.00 /each
| SKU(s) | CL-MINI-BT-BK |
| Color | Black |
| Color | Black |
| Wattage | 1-4W |
| Voltage | 10-15V |
| Lumens | 15LM - 250LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7-3/4" |
| Height | 9.5" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
