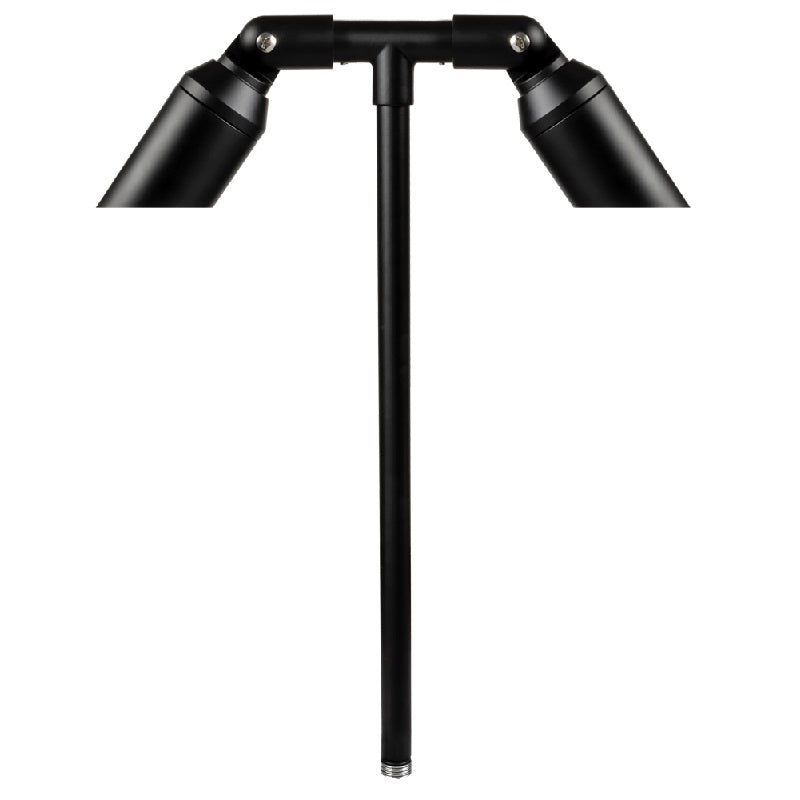

Double-Head Machined Aluminum Path Light | MR-16 LED
| SKU(s) | CL-720-T-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Double-Head Machined Aluminum Path Light is a premium architectural-grade outdoor lighting fixture designed to deliver powerful illumination with style and durability. Available in a Black or Bronze finish and your choice of 18″ or 24″ stem height, this dual-head path light is ideal for enhancing walkways, gardens, patios, and landscapes with uniform lighting coverage.
Crafted from corrosion-resistant 6061 extruded aluminum, the housing ensures long-term durability in harsh outdoor conditions. Each head features a clear, heat-resistant tempered glass lens that protects the lamp while maintaining consistent light quality.
The fixture is equipped with two top-grade ceramic bi-pin sockets, each with a retention clip to securely hold MR-16 LED lamps in place. Compatible with 12V MR-16 LED lamps (available in 3.5W or 5W options, or fixture-only without lamps), this path light provides energy-efficient illumination with flexibility to suit different project needs.
A 3-ft 18-2 SPT1-W direct burial cord with underground connectors ensures reliable installation, while the adjustable machined aluminum knuckles with stainless steel screws allow precise beam positioning. The fixture mounts securely using an 8½″ slotted black ABS ground spike with ½″ NPT male hub.
✔ Available in Black or Bronze finishes
✔ Choice of 18″ or 24″ stem heights
✔ Dual-head design for wider illumination coverage
✔ 6061 machined aluminum housing with corrosion resistance
✔ Tempered flat glass lenses for durability & protection
✔ Supports two MR-16 LED lamps (3.5W or 5W) or no-lamp option
✔ Adjustable aluminum knuckles with stainless screws
✔ Prewired with 3-ft burial cord + connectors for easy installation
✔ Voltage range: 9V–17V | Requires 12V transformer
✔ 10-year housing warranty against manufacturer defects
$72.00 /each
| SKU(s) | L-EDT3-3W-BT |
| Color | White |
| Wattage | 0.5W - 3W |
| Voltage | 9V-17V AC & DC |
| Lumens | 10LM - 200LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7/8" |
| Length | 7/8" |
| Height | 1-3/8" |
| Diameter | 7/8" |
| LED Life | 50.000 Hrs |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$532.85 /each
| SKU(s) | CL-755-BT-T-AB-18 |
| Color | Antique Bronze | Gun Metal |
| Size | 18" | 24" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 24" / 18" |
| Diameter | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$57.65 /each
| SKU(s) | CL-616-BK |
| Color | Black | Bronze | Granite |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze & Granite |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 8-1/4" |
| Length | 8-1/4" |
| Height | 14-3/4" |
| Diameter | 8-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$72.00 /each
| SKU(s) | L-ED16-5W-BT |
| Color | Black |
| Wattage | 1W-5W |
| Voltage | 9V-17V AC & DC |
| Lumens | 25LM - 530LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 1-7/8" |
| Length | 1-7/8" |
| Height | 1-7/8" |
| Diameter | 1-7/8" |
| LED Life | 50.000 Hrs |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
