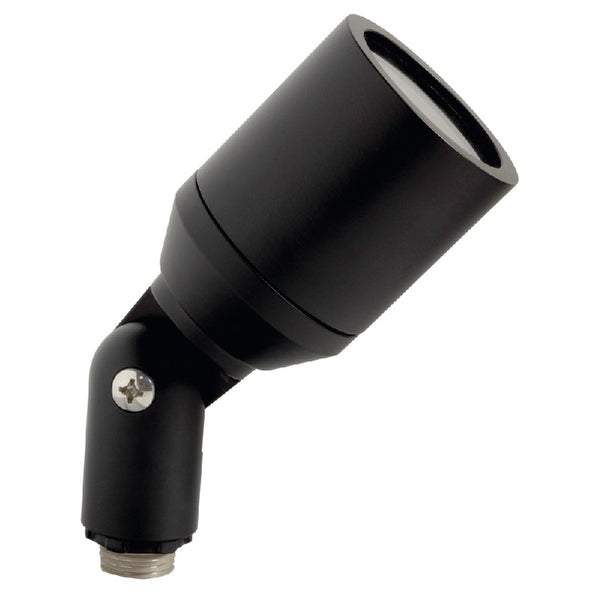

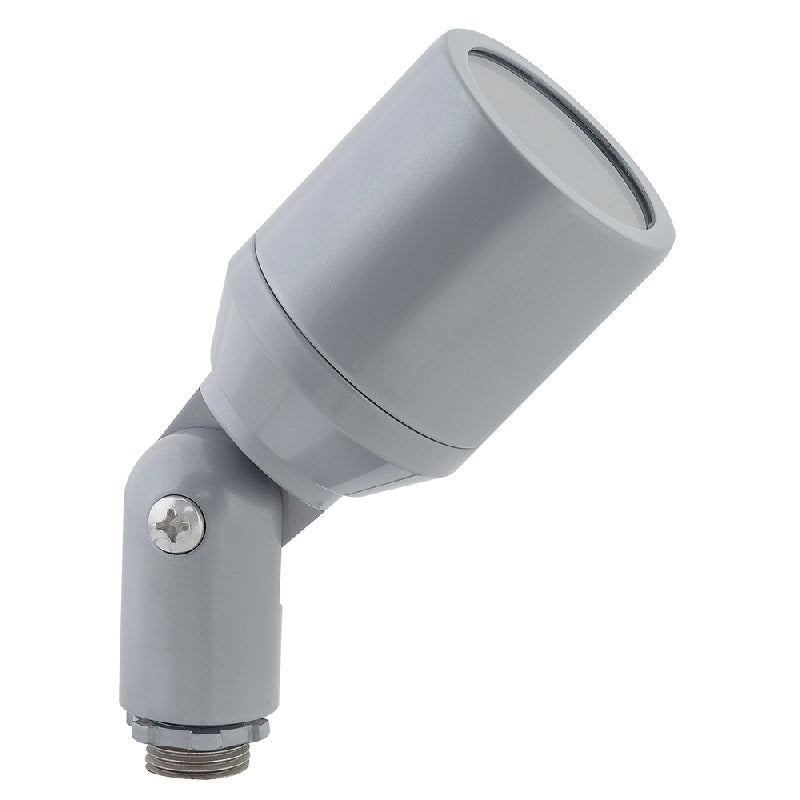

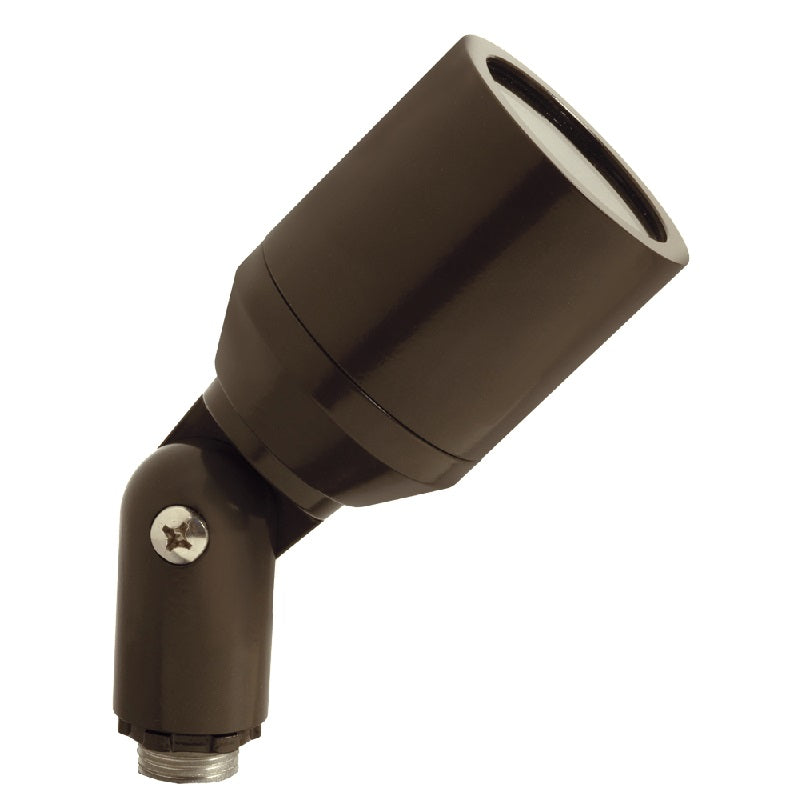

Machined Aluminum Flat Shroud Directional Bullet Light | MR-16 LED
| SKU(s) | CL-523-BK |
| Color | Black | Bronze | Silver |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black, Bronze, Silver |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 4" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Machined Aluminum Flat Shroud Directional Light is an architectural-grade outdoor fixture engineered for long-lasting durability and professional illumination. Available in Black, Bronze, and Silver finishes, this fixture is perfect for highlighting landscapes, trees, architectural accents, and outdoor spaces with precision and style.
Constructed from corrosion-resistant machined aluminum, this directional light features a flat shroud design for a modern look and efficient glare control. It includes a clear, heat-resistant tempered glass lens and a high-quality ceramic MR-16 bi-pin socket with lamp retention clip for secure lamp installation.
Compatible with 12V MR-16 LED lamps (offered in 3.5W, 5W, 6W, or fixture-only options), it provides energy-efficient and versatile lighting. The fixture comes prewired with a 3-ft 18-2 SPT1-W direct burial cord and underground connectors, ensuring quick and reliable installation.
The adjustable machined aluminum knuckle with stainless steel screw and the 8.5” slotted ABS spike with ½” NPT hub offer both flexibility and stability for accurate light positioning.
✔ Premium machined aluminum construction with flat shroud design
✔ Available in Black, Bronze, and Silver finishes
✔ MR-16 LED compatible – 3.5W, 5W, 6W, or fixture-only options
✔ Clear tempered glass lens for heat and weather resistance
✔ Ceramic bi-pin MR-16 socket with secure retention clip
✔ Prewired with 3-ft burial cord & underground connectors
✔ Durable machined aluminum adjustable knuckle with stainless steel screw
✔ 8.5” slotted ABS spike with ½” NPT threaded hub included
✔ Voltage range: 9V–17V | Requires 12V transformer
✔ Backed by a 10-year housing warranty
$57.65 /each
| SKU(s) | CL-616-BK |
| Color | Black | Bronze | Granite |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze & Granite |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 8-1/4" |
| Length | 8-1/4" |
| Height | 14-3/4" |
| Diameter | 8-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$81.00 /each

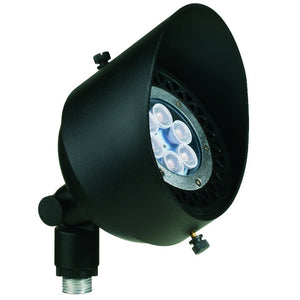

| SKU(s) | CL-539-BK |
| Color | Black | Bronze |
| Lamp | No-Lamp | 6W | 13W | 3.5W | 5W |
| Color | Black, Bronze |
| Wattage | 6W / 13W |
| Voltage | 12V |
| Lumens | 610LM / 1150LM |
| Color Temp | 2700K |
| Width | 4-3/4" |
| Height | 8-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$138.65 /each
| SKU(s) | CL-721-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze | Silver |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze & Silver |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$225.00 /each

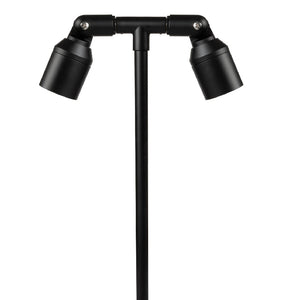

| SKU(s) | CL-723-T-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze | Silver |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze & Silver |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
