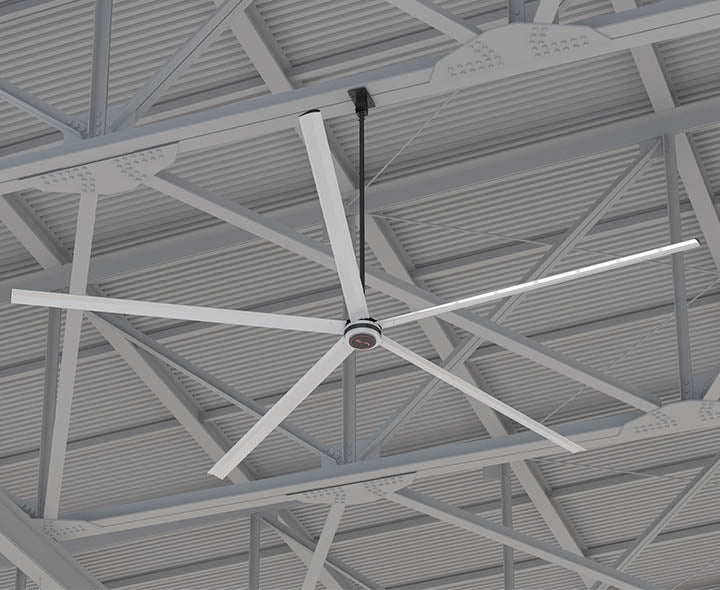

The M750 Series HVLS (High Volume Low Speed) Industrial Ceiling Fan is a next-generation air movement solution engineered for maximum efficiency, performance, and energy savings in large commercial and industrial environments. Designed with a permanent magnet synchronous motor (PMSM), the M750 delivers powerful airflow while consuming as little as 413W to 835W, making it one of the most energy-efficient HVLS fan systems in its class.

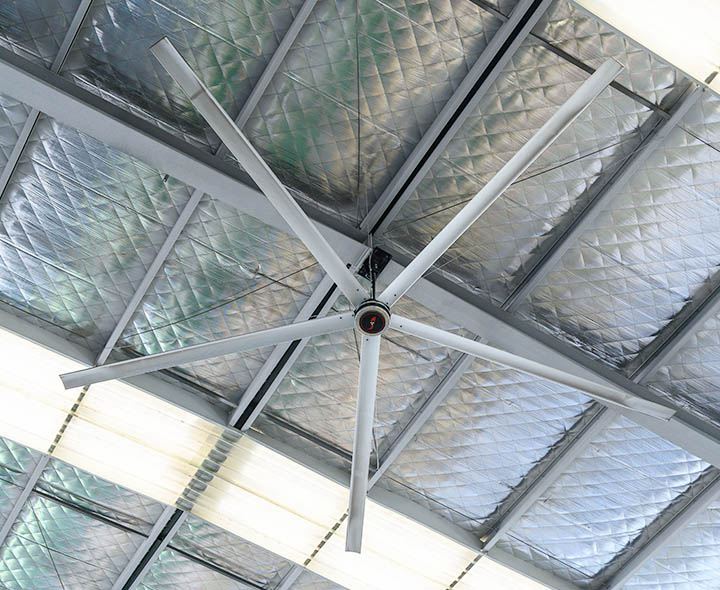

Built for warehouses, factories, logistics centers, gyms, and large open spaces, the M750 Series provides consistent air circulation year-round—cooling in summer and improving heat stratification in winter through reverse operation.

With diameters ranging from 16FT to 24FT, the M750 can cover up to 13,993 square feet, reducing HVAC load and delivering significant operational cost savings.

Key Features

• High-efficiency PMSM direct-drive motor technology
• Ultra-low energy consumption: 413W–835W max
• Large airflow coverage up to 13,993 ft²
• Available sizes: 16FT / 18FT / 20FT / 24FT
• 5 anodized aluminum blades for optimized airflow
• Quiet operation: <50 dBA at max speed
• Reverse mode for seasonal destratification
• Built-in HMI control at floor level for easy access
• Network control capability for up to 10 fans
• 10-speed settings with precise airflow control
• Optional IoT smart control integration

Performance & Efficiency

The M750 HVLS fan is designed to deliver high-volume, low-speed air movement, ensuring optimal comfort while dramatically reducing energy consumption compared to traditional HVAC systems.

• Max Speed: up to 78 RPM (model dependent)
• Energy Consumption: 413W – 835W
• Air Coverage: 6,458 – 13,993 ft²
• Sound Level: <50 dBA (ultra-quiet operation)

General Specifications

• Voltage: 208–240VAC (Single Phase, 50/60Hz)
• IP Rating: IPX5 (Indoor/Outdoor use)
• Temperature Range: -10°C to +50°C (14°F to 122°F)
• Controller: Forward/reverse, 0–100% control
• Mounting: Fully adjustable system
• Blade Height: 23–33 ft recommended
• Certifications: CE, IEC compliant
• Warranty: 3 years standard (extended optional)

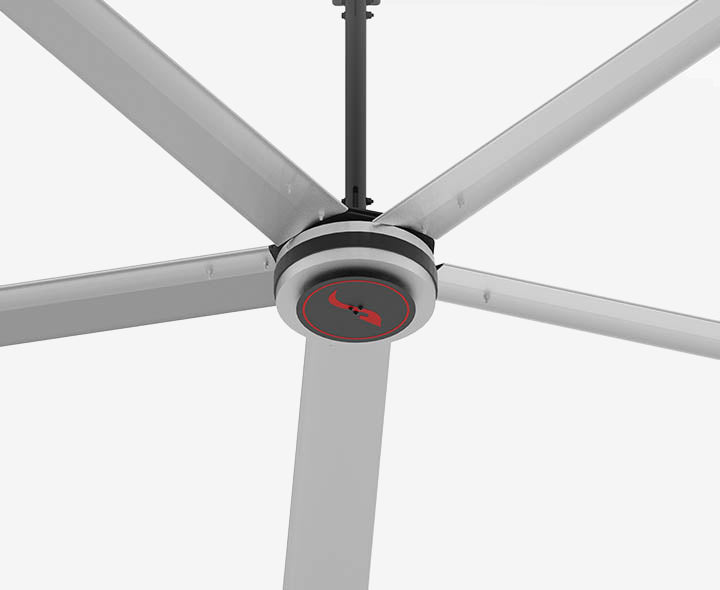

Motor Technology Advantage (PMSM Direct Drive)

The advanced direct-drive PMSM motor eliminates traditional gearboxes and belts, resulting in:

• No oil or lubrication required
• No seals or leakage points
• Only 2 moving mechanical parts
• Extremely low maintenance requirements
• Reduced noise and vibration
• Higher energy efficiency and reliability

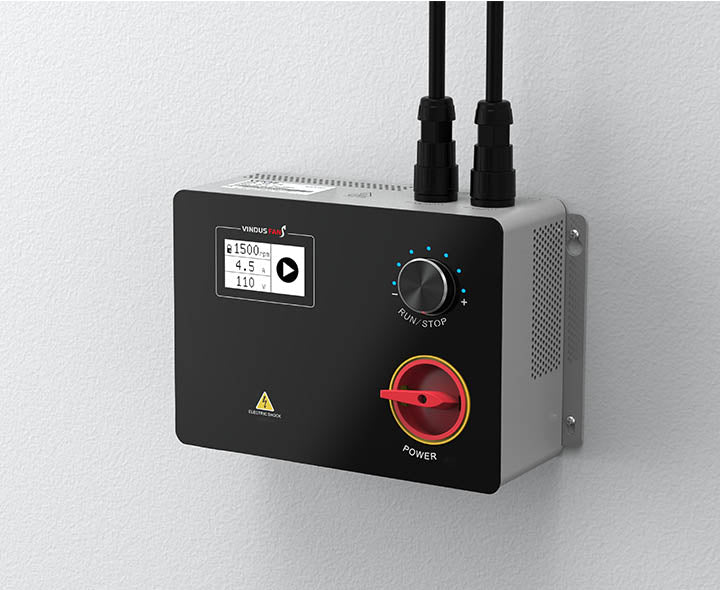

Smart Control System

The M750 controller system provides advanced operational flexibility:

• LCD wall-mounted controller interface
• Up to 20 fans network control capability
• 7–10 speed levels depending on configuration
• Timer and scheduling functions
• Wireless remote control (optional)
• IoT smart monitoring module (optional)
• Forward and reverse operation modes

Applications

• Warehouses and logistics centers
• Manufacturing plants
• Distribution centers
• Agricultural facilities
• Gyms and sports complexes
• Airports and transit hubs
• Large retail and commercial spaces

Model Specifications Table
