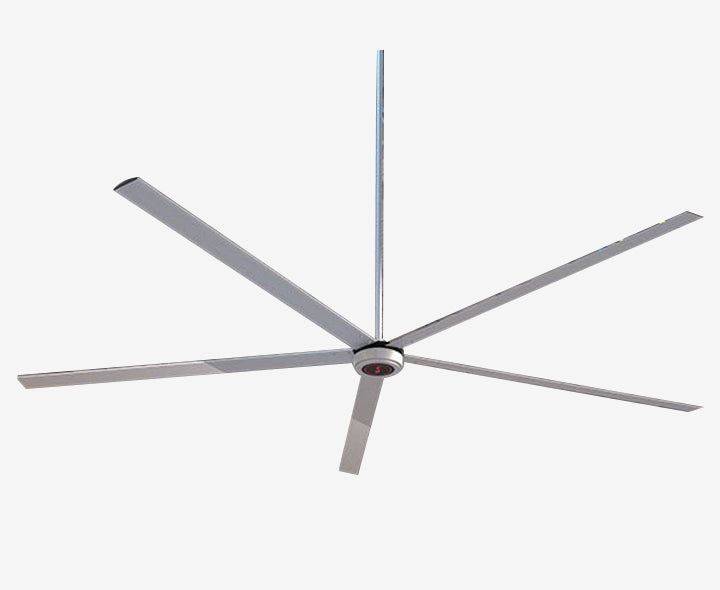

HVLS Ceiling Fan Indoor/Outdoor | M650 Series | 7-Speed | 208/240VAC | IPX5 | Vindus Fans

The M650 Series HVLS Fans deliver maximum airflow efficiency and comfort for commercial and medium-sized spaces. Featuring a permanent magnet synchronous motor (PMSM) with scalable torque, these fans provide optimal cooling while consuming as little as 190–335 watts, depending on size.

Designed for easy installation, the M650 requires just a single cable, reducing setup time and installation costs. The built-in floor-level HMI drive makes operation and maintenance simple, allowing your team to quickly control airflow without climbing ladders.

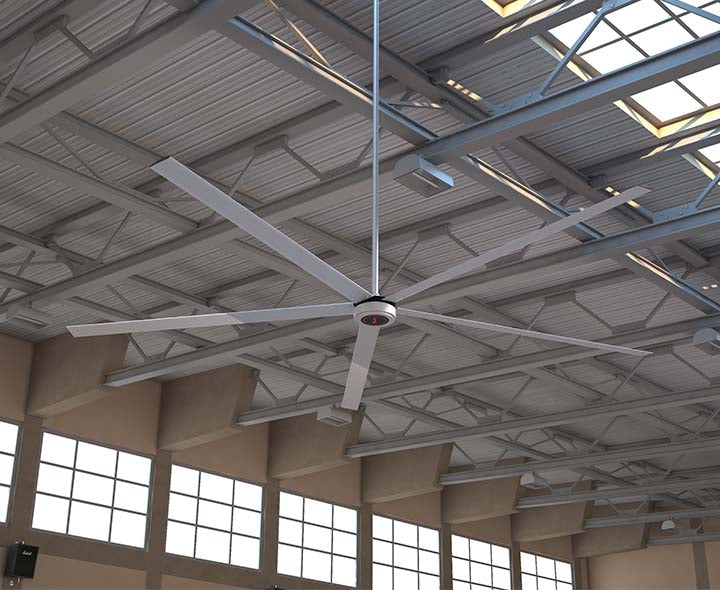

Perfect for year-round use, the M650 Series cools efficiently in summer and helps equalize indoor temperatures in winter, improving comfort and reducing HVAC energy costs. Its adjustable mounting ensures optimal airflow for ceiling heights from 2.75m (9ft) to 7m (23ft). Choose from diameters 3m (10ft), 3.66m (12ft), or 4.27m (14ft) to match your space requirements.

Built for durability and versatility, the M650 operates quietly (<50 dBA) and is IPX5 rated for indoor/outdoor use. With a CE, EN, and IEC certified design and a 3-year warranty, it provides long-lasting reliability.

Key Features

• Energy-Efficient PMSM Motor: Scalable torque, low power consumption (190–335 W)

• Multiple Sizes: 10ft, 12ft, and 14ft diameters for medium-sized spaces

• Versatile Year-Round Comfort: Cools in summer, equalizes temperature in winter

• Easy Installation: Single cable connection and fully adjustable mounting

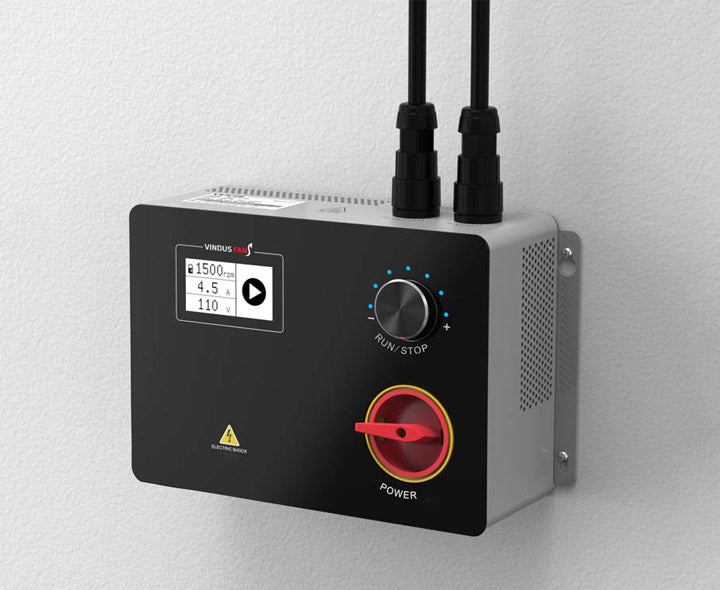

• Built-in HMI Drive: Floor-level access for control and maintenance

• Quiet Operation: <50 dBA at maximum speed

• IPX5 Rated: Indoor and outdoor use

• Certified & Reliable: CE, EN, IEC certified

• Warranty: 3 years on all parts (extended warranty optional)

Models & Performance

General Specifications

• Voltage: 208–240VAC Single Phase, 50Hz/60Hz

• Sound Level: <50 dBA at max speed

• IP Rating: IPX5 Indoor/Outdoor

• Temperature Rating: -10℃ to +50℃

• Controller: Forward direction 0–100%

• Mounting: Fully Adjustable

• Mount to Blade Height: 1m standard

• Certifications: CE, EN, IEC

• Warranty: 3 years (extended optional)
