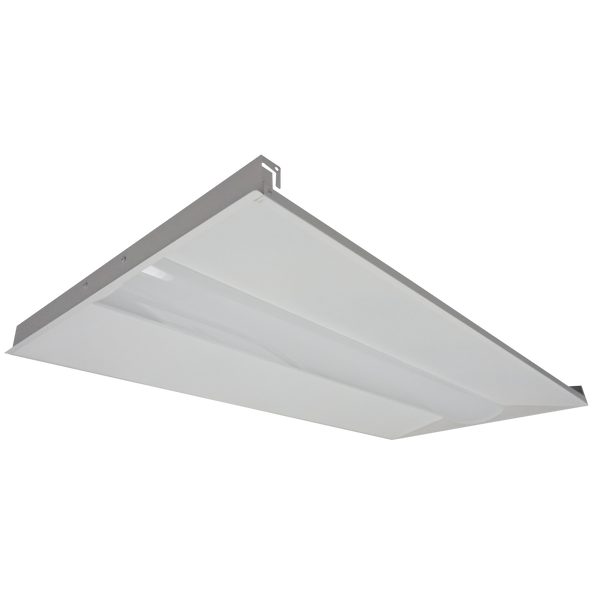

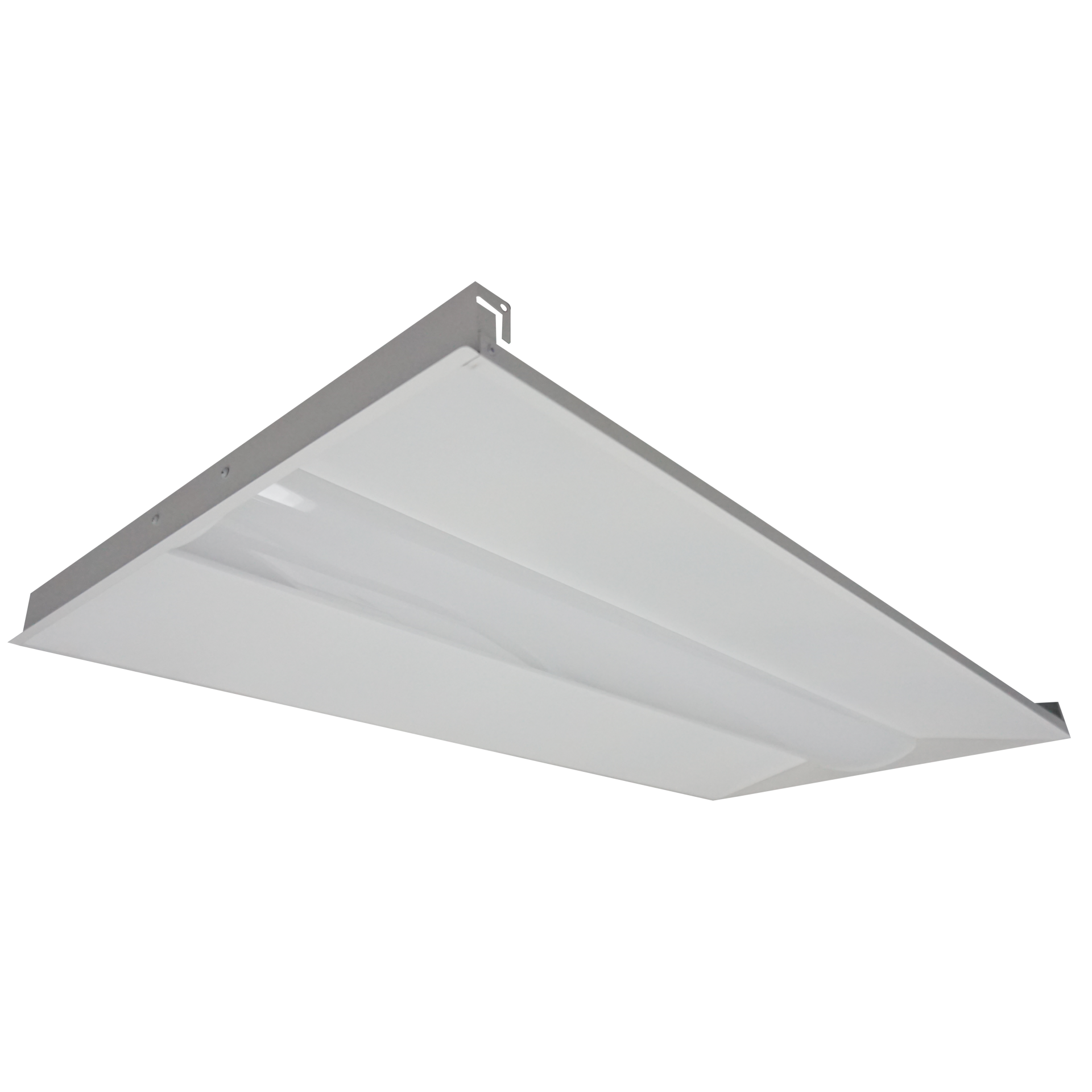

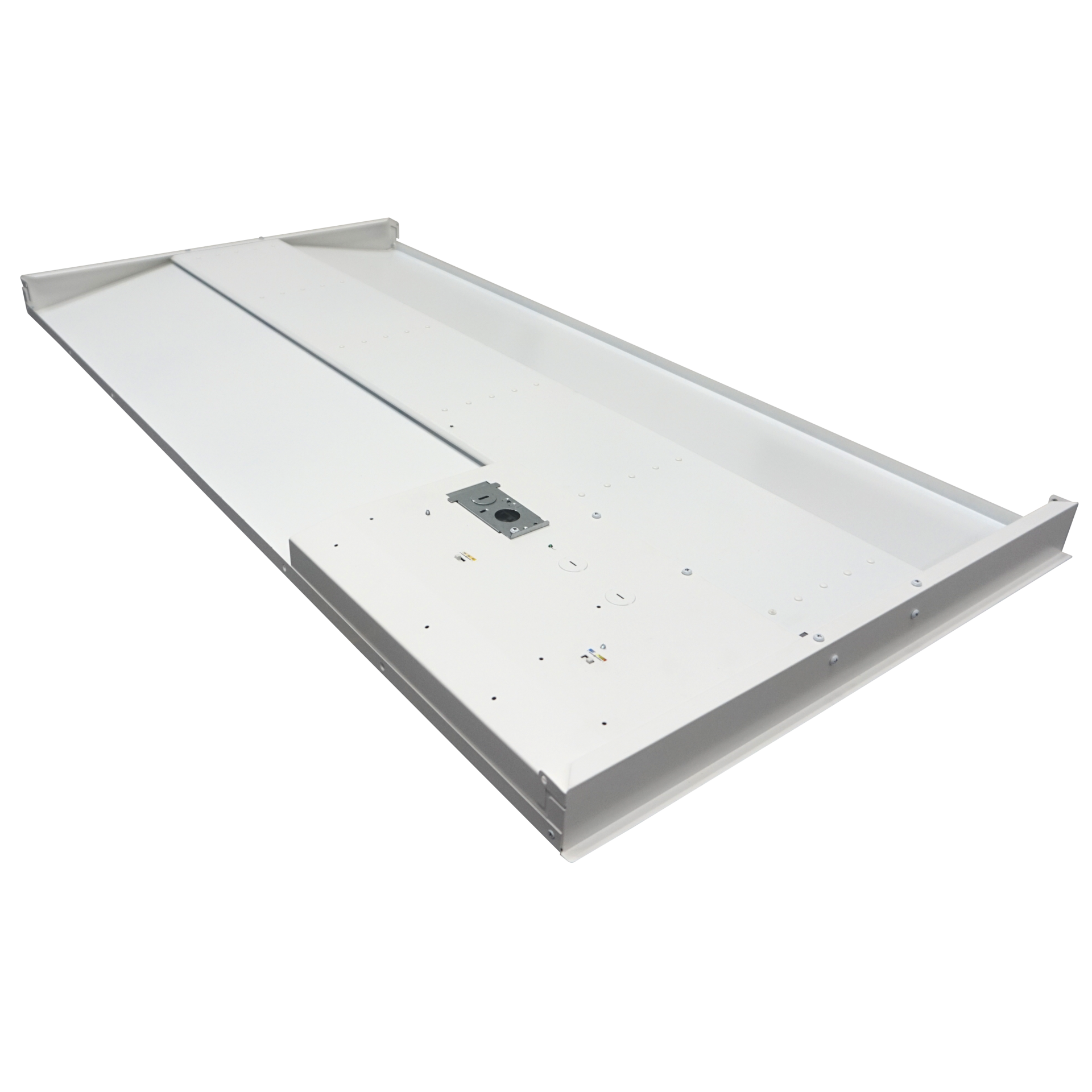

Lumen and Kelvin Field Selectable 2x4 LED Center Basket

Product Description

▪ Available in 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures*
▪ Long-life LEDs provide at least 144,000 hours of operation with at least 70% of initial lumen output (L70)**
▪ Provides 4,538-4,605 lumens and 137-139 lumens per watt (LPW)
▪ Uniform illumination with no visible LED pixilation
▪ Universal 120-277 AC voltage (50-60Hz) is standard
▪ 0-10vdc, continuous dimming capability is standard
▪ Power factor > 0.90
▪ Total harmonic distortion < 20%
▪ Color rendering index (Ra) > 80
▪ Steel housing and PMMA lens
▪ Easy installation in new construction or retrofit. Fits in standard 2’ x 4’ grid ceilings
▪ Built-in earthquake clips provide secure installation in grid ceilings
▪ Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using earthquake clips. For other mounting options, see Mounting Means
▪ cULus listed for damp locations and insulated ceiling in ambient temperatures from -20°C to 50°C (-4°F to 122°F)
▪ UL listed for maximum of 4, 12 AWG through branch circuit conductor
▪ Inherently protected
▪ Type IC rated for insulated ceilings
▪ DLC 5.0 premium approved
▪ Low risk of flicker (per IEEE1789-2015) at 100% light output level
▪ Complies with FCC Part 15, class B
▪ Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV)
▪ 5-year warranty of all electronics and housing.
* Contact factory for other color temperatures and lumen packages.
