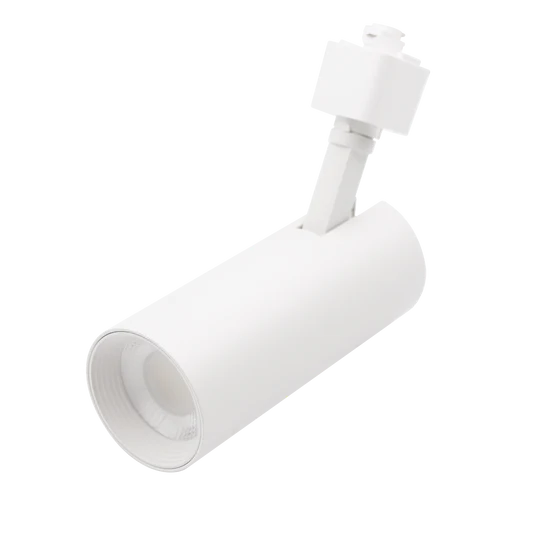

The LR43890 (White) and LR43891 (Black) 2.5" H-Track LED Heads are high-performance, energy-efficient lighting solutions designed for commercial, retail, and residential applications. Featuring a modern, compact 2.5" profile, these versatile fixtures deliver 1500 lumens of bright, focused illumination with a precise 36° beam angle, making them perfect for accent lighting, display lighting, task lighting, and general illumination.

Equipped with 5 selectable CCT options (2700K, 3000K, 3500K, 4000K, 5000K), users can instantly switch between warm and cool light tones to match any environment. A high 90 CRI ensures accurate color rendering—ideal for retail displays, artwork, product highlighting, and hospitality spaces.

Built with durable construction and available in white (LR43890) or black (LR43891) finishes, these H-Track LED heads integrate easily into existing track lighting systems. With 20W power consumption, 80 lm/W efficacy, TRIAC dimming compatibility, and a long-lasting 50,000-hour rated life, they deliver reliable performance and long-term value. Their slim Ø2.42" design and 6.04" depth provide a clean, modern appearance suitable for any architectural design.

Whether upgrading existing installations or designing new spaces, the LR43890 and LR43891 offer exceptional flexibility, superior light quality, and cost-saving energy efficiency.

✅ TECHNICAL SPECIFICATIONS

GENERAL

Models:

• LR43890 – White Finish

• LR43891 – Black Finish

Item Descriptions:

• LR43890: LEDTR/ECO2.5/H/20W/5CCT/D/WT

• LR43891: LEDTR/ECO2.5/H/20W/5CCT/D/BK

Size: 2.5"
Shape: Trackhead
Finish Options: White / Black

DIMENSIONS (Both Models)

• Width: Ø2.42"

• Depth: 6.04"

PHOTOMETRIC

• CCT Selectable: Yes

• Color Temperatures: 2700K / 3000K / 3500K / 4000K / 5000K

• Lumen Output: 1500 lm

• Beam Angle: 36°

• CRI: 90

• Lumen Efficacy: 80 lm/W

ELECTRICAL

• Wattage: 20W

• Input Voltage: 120V

• Rated Lifetime: 50,000 hours

• Yearly Energy Cost: $2.40

• Dimmable: TRIAC

• Power Factor: 0.9

• Frequency: 50Hz

OPERATING TEMPERATURE

• Min: -4°F

• Max: 104°F

PACKAGING

LR43890 – White

• UPC: 732388946662

• Master Barcode: 10732388946669

• Master Carton Dimensions:

  • L: 16.93"

  • W: 13"

  • H: 9.64"

LR43891 – Black

• UPC: 732388946761

• Master Barcode: 10732388946768

• Master Carton Dimensions:

  • L: 16.93"

  • W: 13"

  • H: 9.64"
