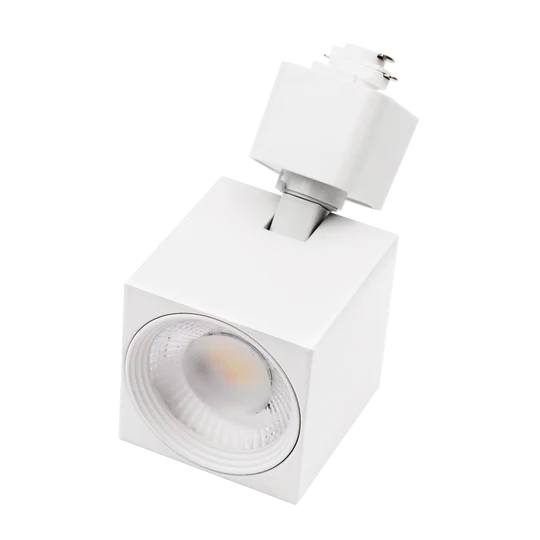

The 2-inch Square H-Track Head delivers compact, modern, and efficient lighting performance for commercial, retail, and residential applications. Available in White (LR43882) and Black (LR43883) square finishes, this low-profile 10W LED fixture blends architectural design with high-output performance, producing 800 lumens with a clean 40° beam angle—ideal for accent lighting, task lighting, and display illumination.

Equipped with 5 selectable color temperatures ranging from 2700K to 5000K, users can easily fine-tune ambiance to match any environment, from warm hospitality settings to bright commercial spaces. A high 90 CRI guarantees excellent color clarity, making this fixture perfect for merchandise displays, artwork, and detail-critical applications.

Despite its compact size—measuring 2.28" L x 2.28" W x 2.5" D—this square track head delivers strong efficiency at 80 lm/W and a long 50,000-hour lifetime. With TRIAC dimming, 0.9 power factor, and -4°F to 104°F operating range, it is engineered for reliability and energy savings, costing only $1.20 per year to operate.

Compatible with standard H-Track systems, this fixture installs easily and provides consistent, flicker-free illumination for professional lighting projects.

📌 TECHNICAL SUMMARY (Both Models)

General

• Size: 2"

• Shape: Square Trackhead

• Track Type: H-Track

• Beam Angle: 40°

• Lumen Output: 800 lm

• CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K

• CRI: 90

• Efficacy: 80 lm/W

Electrical

• Wattage: 10W

• Input Voltage: 120V

• Dimmable: TRIAC

• Rated Lifetime: 50,000 hrs

• Power Factor: 0.9

• Frequency: 50Hz

• Energy Cost: $1.20 per year

• Operating Temp: -4°F to 104°F

Dimensions

• Length: 2.28"

• Width: 2.28"

• Depth: 2.5"

📦 PACKAGING

⚠ NOTE: The UPC and Master Barcode appear duplicated in your input. If you can confirm separate barcodes, I can correct them. For now, here's the data as provided.

LR43882 — White Finish

• Item Description: LEDTR/ECO2/SQ/H/10W/5CCT/D/WT

• UPC: 732388946266

• Master Barcode: 10732388946263

• Master Carton: 11.41" x 9.64" x 10.63"

LR43883 — Black Finish

• Item Description: LEDTR/ECO2/SQ/H/10W/5CCT/D/BK

• UPC: 732388946266 (same as above—verify if needed)

• Master Barcode: 10732388946263

• Master Carton: 11.41" x 9.64" x 10.63"
