Upgrade commercial and residential track lighting with our 3-inch Zoomable H-Track Head, engineered for precision, flexibility and premium visual performance. Designed with a sleek 3" profile and available in Brass (LR43877), Black (LR43874) and White (LR43875) finishes, this LED trackhead provides powerful 30W output, delivering up to 2100 lumens and a smooth 20° to 50° zoomable beam angle for customizable lighting distribution.

Perfect for retail displays, galleries, hospitality environments and modern architectural spaces, the fixture features 5 CCT selectable settings—2700K, 3000K, 3500K, 4000K, and 5000K—allowing easy adaptation to any design requirement. A high 90 CRI ensures exceptional color rendering, ideal for applications that demand accurate color presentation.

Built for performance and reliability, the 3" Zoomable H-Track Head includes TRIAC dimming, 120V input, a robust 50,000-hour rated lifetime, and a durable die-cast construction for long-term use. Engineered with a 0.9 power factor, -4°F to 104°F operating range, and efficient 80 lm/W efficacy, it is designed to meet demanding commercial standards.

Its compact dimensions—6.93" length, Ø3.15" width, 6.70" depth—allow easy integration into any H-track lighting system, making installation quick and straightforward.

This model ships in master case configurations of 24 units, with complete UPC and master carton details included for simplified procurement, inventory and distribution.

📦 TECHNICAL HIGHLIGHTS

General Specifications

• Size: 3"

• Shape: Trackhead

• Beam Angle: 20° ~ 50° (Zoomable)

• Lumen Output: 2100 lm

• CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K

• CRI: 90

• Efficacy: 80 lm/W

• Dimmable: TRIAC

• Voltage: 120V

• Power Factor: 0.9

• Rated Lifetime: 50,000 hrs

• Operating Temp: -4ºF to 104ºF

• Wattage: 30W

Dimensions

• Length: 6.93"

• Width: Ø3.15"

• Depth: 6.70"

📦 MODEL-SPECIFIC INFORMATION

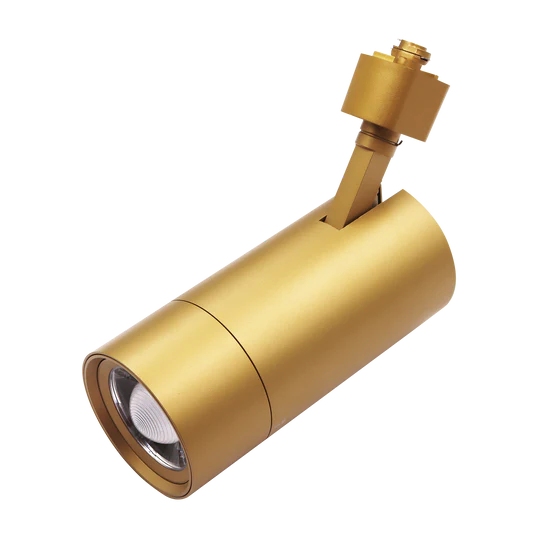

LR43877 – Brass Finish

• Item Description: LEDTR/ZM3/H/30W/5CCT/D/BRS

• Finish: Brass

• UPC: 732388948666

• Master Case: 10732388948663

• Case Qty: 24

• Master Carton: 21.06" x 15.95" x 10.24"

LR43874 – Black Finish

• Item Description: LEDTR/ZM3/H/30W/5CCT/D/BK

• Finish: Black

• UPC: 793888462045

• Master Case: 10793888462042

• Case Qty: 24

• Master Carton: 21.06" x 15.95" x 10.24"

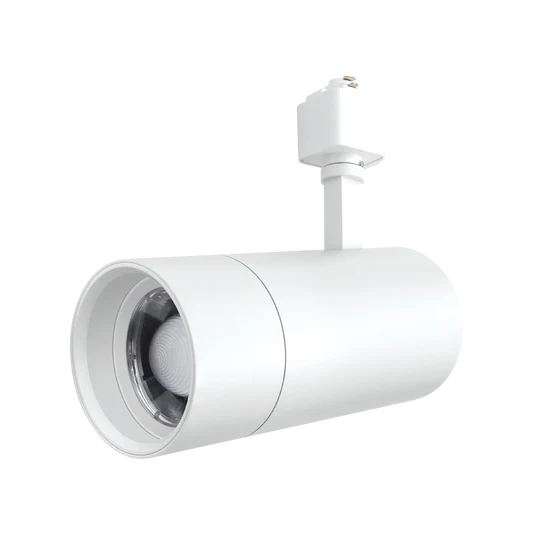

LR43875 – White Finish

• Item Description: LEDTR/ZM3/H/30W/5CCT/D/WT

• Finish: White

• UPC: 793888461949

• Master Case: 10793888461946

• Case Qty: 24

• Master Carton: 21.06" x 15.95" x 10.24"
