The LR43824 (Black) and LR43825 (White) H-Track Adjustable Connectors are engineered for maximum versatility in H-Type, single-circuit, 3-wire track lighting systems. These adjustable connectors allow installers and lighting designers to easily join two track sections at custom angles, supporting both straight and angled configurations. This flexibility enables unique lighting layouts ideal for retail stores, art galleries, commercial spaces, restaurants, and modern residential applications.

With an adjustable pivoting design, these connectors maintain continuous electrical flow while providing a secure mechanical connection. Their low-profile dimensions — 7.62" length, 1.36" width, and 0.71" height — allow for seamless integration with modern track lighting systems, ensuring a clean and architectural look.

Available in black or white finishes, the connectors match standard H-track components, ensuring a uniform aesthetic. Durable, reliable, and easy to install, LR43824 and LR43825 are essential accessories for achieving flexible, customized track lighting installations. Packaged in cases of 24, they are well-suited for contractors and large commercial projects.

⭐ Technical Specifications

Model LR43824 – Black Finish

• Item Number: LR43824

• Item Description: LEDTR/H/3W/1C/ADJ/BK

• Shape: Adjustable Connector

• Finish: Black

• Dimensions:

  • Length: 7.62"

  • Width: 1.36"

  • Height: 0.71"

• Packaging:

  • UPC: 793888473942

  • Master Barcode: 10793888473949

  • Case Size: 24

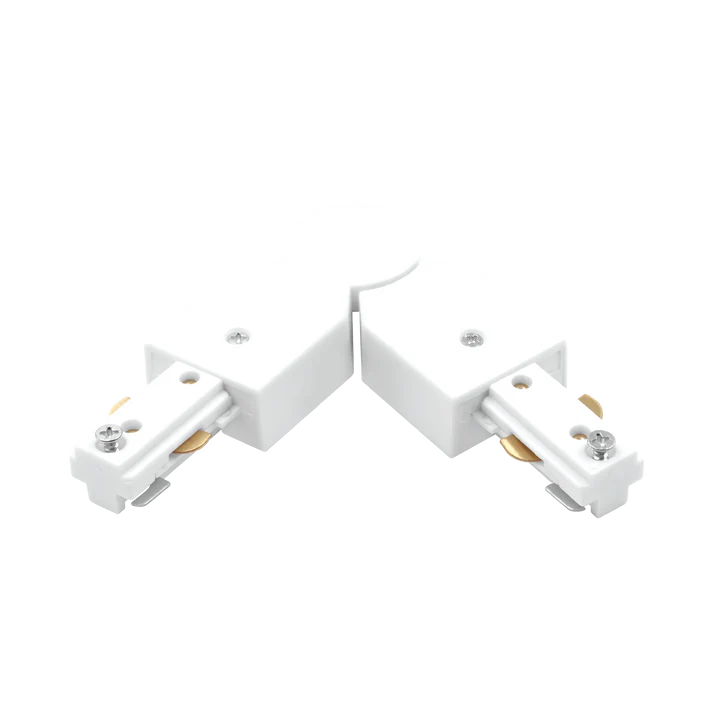

Model LR43825 – White Finish

• Item Number: LR43825

• Item Description: LEDTR/H/3W/1C/ADJ/WT

• Shape: Adjustable Connector

• Finish: White

• Dimensions:

  • Length: 7.62"

  • Width: 1.36"

  • Height: 0.71"

• Packaging:

  • UPC: 793888474048

  • Master Barcode: 10793888474045

  • Case Size: 24
