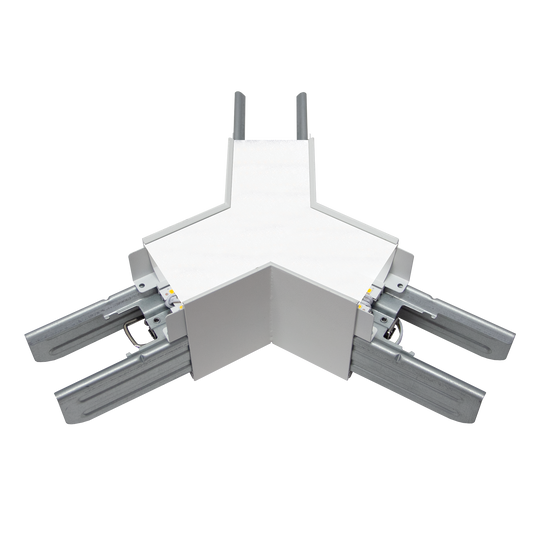

The Architectural Linkable Linear Y-Connectors (LR42650 – Black & LR42651 – White) are precision-engineered components designed to expand modular lighting layouts with clean, multi-directional branching. As part of the Architectural Linear Linkable system, these Y-connectors enable designers and installers to form three-way lighting intersections—ideal for creating visually striking architectural patterns, pathway splits, feature lighting, and complex commercial layouts.

Optimized for compatibility with 3 CCT / 3 Wattage Selectable Architectural Linear fixtures, each connector maintains seamless electrical and photometric performance across all connected luminaires. Users benefit from consistent color temperatures (3500K, 4000K, 5000K), a wide 120° beam spread, and CRI 80 for high-quality, uniform illumination.

With compact and efficient dimensions — 9.07" (L) × 10.47" (W) × 2.95" (H) — these connectors integrate effortlessly into suspended, surface-mounted, or recessed linear lighting designs. Built for durability in demanding commercial environments, they offer a 50,000-hour lifetime, 0–10V dimming, universal 120–277V input, and a solid 0.9 power factor, ensuring energy-efficient reliability.

Available in contemporary black or clean white, these Y-connectors provide complete design flexibility for offices, retail, hospitality, educational spaces, galleries, and architectural installations requiring advanced geometric lighting formations.

⚙️ Technical Specifications Summary

Models

• LR42650 – Black Y-Connector

• LR42651 – White Y-Connector

Dimensions

• Length: 9.07"

• Width: 10.47"

• Height: 2.95"

Photometric

• CCT Selectable: 3500K / 4000K / 5000K

• Beam Angle: 120°

• CRI: 80

Electrical

• Input Voltage: 120–277V

• Rated Lifetime: 50,000 hours

• Dimming: 0–10V

• Power Factor: 0.9

• Operating Temperature: -4°F to 113°F

Finishes

• Black (LR42650)

• White (LR42651)

Packaging

LR42650 – Black

• UPC: 732388932764

• Master Carton: 19.21" × 17.12" × 11.30"

• Case Size: 10

LR42651 – White

• UPC: 732388932863

• Master Carton: 19.21" × 17.12" × 11.30"

• Case Size: 10
