The Architectural Linkable Linear L-Connectors (Models LR42622 – White & LR42623 – Black) are precision-engineered accessories designed to enable seamless 90-degree turns within modern linear lighting systems. Built to support advanced architectural layouts, these L-connectors allow designers and installers to create clean, angular pathway illumination, perimeter lighting, corner transitions, and continuous right-angle configurations with perfect alignment and uniform optical performance.

Compatible with 3 CCT selectable and 3 wattage selectable Architectural Linear fixtures, these connectors maintain consistent color temperature, beam uniformity, dimming functionality, and system voltage. Measuring 6.90" x 6.90" with a slim 2.95" height, each L-connector delivers a minimalist, architectural profile that blends effortlessly into contemporary commercial, retail, hospitality, and office environments.

Engineered for long-term reliability, both models support universal 120–277V input, 0–10V dimming, and offer a robust 50,000-hour rated lifetime. With a wide 120° beam angle and CRI 80, they help maintain smooth, continuous illumination across corner transitions without color shift or brightness loss.

Available in white for sleek architectural spaces or black for bold industrial and modern aesthetics, these L-connectors complete the flexibility of modular linear lighting systems, enabling creativity, precision, and system continuity.

⚙️ Technical Specifications Summary

Models

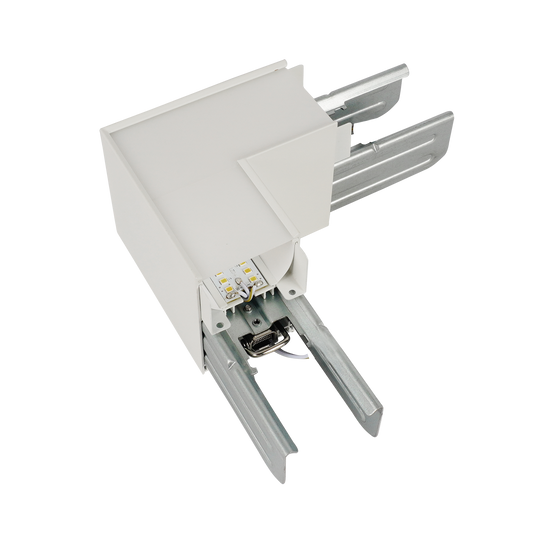

• LR42622 – L-Connector, White

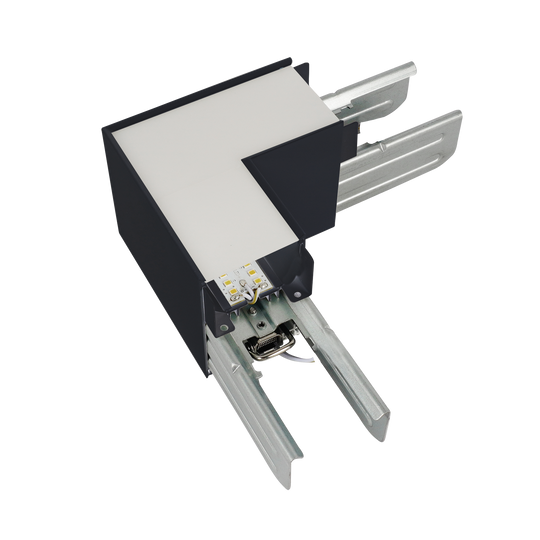

• LR42623 – L-Connector, Black

Dimensions

• Length: 6.90"

• Width: 6.90"

• Height: 2.95"

Photometric

• CCT Selectable: 3500K / 4000K / 5000K

• Beam Angle: 120°

• CRI: 80

Electrical

• Input Voltage: 120–277V

• Dimming: 0–10V

• Power Factor: 0.9

• Rated Lifetime: 50,000 hours

• Operating Temperature: -4°F to 113°F

Finishes

• White (LR42622)

• Black (LR42623)

Packaging

LR42622 – White

• UPC: 793888442047

• Master Carton: 14.80" × 17.71" × 15.16"

• Case Size: 20

LR42623 – Black

• UPC: 793888442146

• Master Carton: 14.80" × 17.71" × 15.16"

• Case Size: 20
