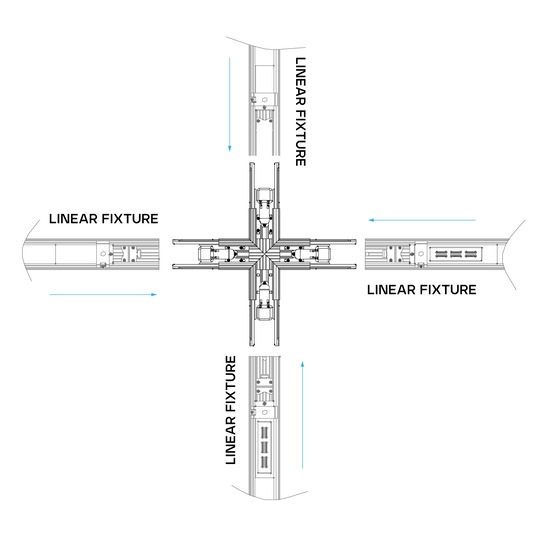

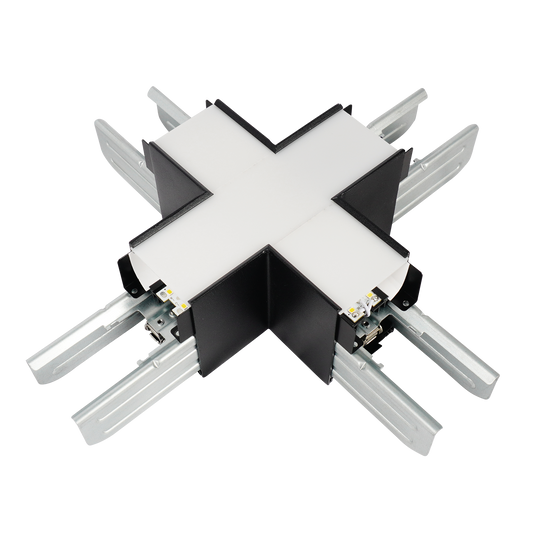

The Architectural Linkable Linear X-Connectors (Models LR42620 – White & LR42621 – Black) are premium-grade structural accessories engineered to extend the creative possibilities of modular linear lighting systems. Designed to connect four linear fixtures in an intersecting, cross-shaped configuration, these X-connectors enable designers to construct highly dynamic, multi-directional lighting layouts ideal for modern commercial, retail, office, and architectural applications.

These connectors are fully compatible with 3 CCT selectable and 3 wattage selectable Architectural Linear fixtures, allowing lighting layouts to remain uniform in color temperature, performance, and dimming. Their compact, symmetrical design—measuring 11.56" x 11.56"—ensures a clean, streamlined appearance that integrates seamlessly into ceilings and suspended installations.

Built for professional environments, both models support 120–277V universal voltage, 0–10V dimming, and offer a dependable 50,000-hour rated lifetime to withstand continuous use in demanding settings. With a consistent 120° beam angle and CRI 80, these X-connectors maintain the optical characteristics of the main fixtures, producing even, uninterrupted illumination across complex grid and multi-directional layouts.

Available in white for clean architectural settings or black for bold industrial or contemporary designs, these X-connectors are an essential component for advanced linear lighting systems where design flexibility and performance continuity are key.

Technical Highlights

Models

• LR42620 – X-Connector, White

• LR42621 – X-Connector, Black

Dimensions

• Length: 11.56"

• Width: 11.56"

• Height: 2.95"

Lighting Performance

• CCT Selectable: 3500K / 4000K / 5000K

• CRI: 80

• Beam Angle: 120°

• Dimming: 0–10V

• Rated Lifetime: 50,000 hours

Electrical

• Input Voltage: 120–277V

• Power Factor: 0.9

• Operating Temperature: -4°F to 113°F

Finishes

• White (LR42620)

• Black (LR42621)

Packaging

LR42620 – White

• UPC: 793888441842

• Master Carton: 24.48" × 17.71" × 24.88"

• Case Size: 20

LR42621 – Black

• UPC: 793888441941

• Master Carton: 24.48" × 17.71" × 24.88"

• Case Size: 20
