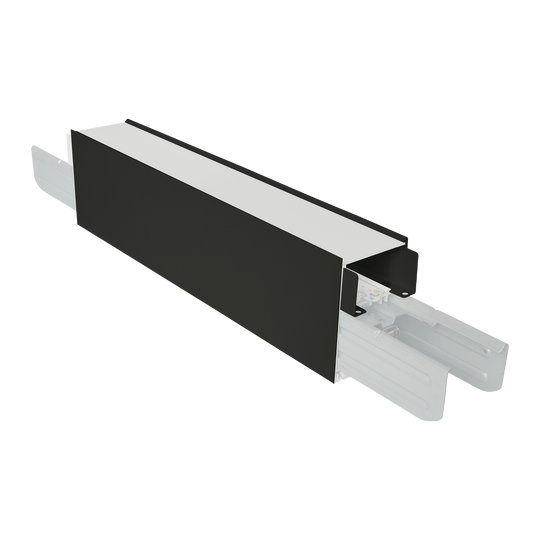

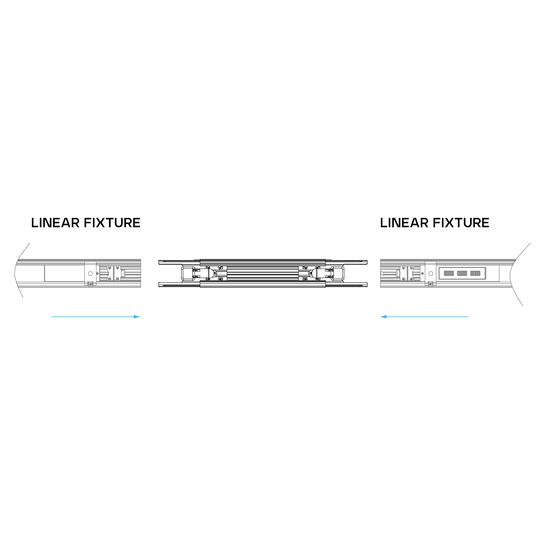

The Architectural Linkable Linear 4" Connectors (LR42617 – White & LR42618 – Black) are precision components designed to seamlessly join modular linear lighting sections, enabling straight, continuous runs for commercial and architectural applications. Ideal for creating clean, uniform linear lighting patterns, these connectors maintain consistent electrical and photometric performance across linked fixtures.

Compatible with 3 CCT / 3 Wattage Selectable Architectural Linear fixtures, these 4" connectors support color temperatures of 3500K, 4000K, and 5000K, offering versatile illumination solutions with a 120° beam angle and CRI 80 for high-quality, natural color rendering.

Durably constructed and engineered for commercial environments, the connectors offer a 50,000-hour rated lifetime, 0–10V dimming, universal 120–277V input, and a 0.9 power factor, ensuring energy-efficient, reliable operation. With compact dimensions — 9.83" (L) × 1.97" (W) × 2.95" (H) — they integrate effortlessly into suspended, recessed, or surface-mounted linear lighting designs. Available in sleek white or contemporary black, these connectors provide design flexibility while maintaining a professional and polished look.

⚙️ Technical Specifications Summary

Models

• LR42617 – White 4" Connector

• LR42618 – Black 4" Connector

Dimensions

• Length: 9.83"

• Width: 1.97"

• Height: 2.95"

Photometric

• CCT Selectable: 3500K / 4000K / 5000K

• Beam Angle: 120°

• CRI: 80

Electrical

• Input Voltage: 120–277V

• Rated Lifetime: 50,000 hours

• Dimming: 0–10V

• Power Factor: 0.9

• Operating Temperature: -4°F to 113°F

Finish

• White (LR42617)

• Black (LR42618)

Packaging

LR42617 – White

• UPC: 732388923366

• Master Carton: 12.12" × 10.82" × 7.48"

• Case Size: 10

LR42618 – Black

• UPC: 732388923465

• Master Carton: 12.12" × 10.82" × 7.48"

• Case Size: 10
