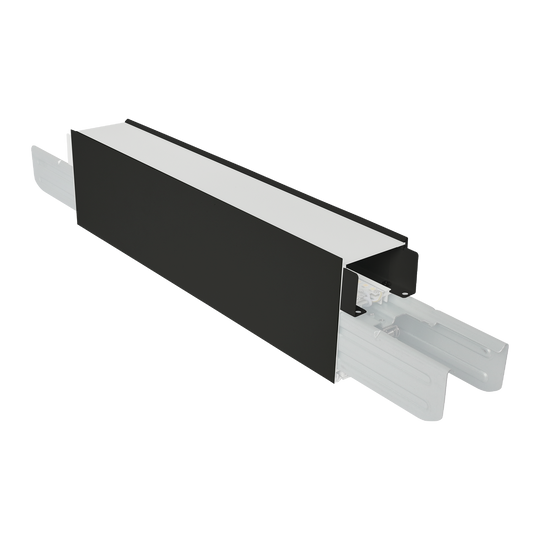

The Architectural Linkable Linear 9" Connectors (LR42607 – White & LR42608 – Black) are precision-engineered connectors designed for seamless integration with modular linear lighting systems. These connectors provide smooth, continuous runs for commercial and architectural lighting applications, ensuring uniform illumination and professional-quality installations.

Compatible with 3 CCT / 3 Wattage Selectable Architectural Linear fixtures, these 9" connectors allow color temperature options of 3500K, 4000K, and 5000K, offering versatile lighting solutions with a 120° beam angle and CRI 80 for accurate color rendering.

Built for durability, these connectors support a 50,000-hour rated lifetime, feature 0–10V dimming, operate on 120–277V input, and maintain a 0.9 power factor. Available in white or black finishes, they are compact yet powerful, measuring 14.88" (L) × 1.97" (W) × 2.95" (H). Ideal for offices, retail spaces, and industrial environments, they ensure a clean, professional look while delivering reliable performance.

⚙️ Technical Specifications Summary

Models

• LR42607 – White 9" Connector

• LR42608 – Black 9" Connector

Dimensions

• Length: 14.88"

• Width: 1.97"

• Height: 2.95"

Photometric

• CCT Selectable: 3500K / 4000K / 5000K

• Beam Angle: 120°

• CRI: 80

Electrical

• Input Voltage: 120–277V

• Rated Lifetime: 50,000 hours

• Dimming: 0–10V

• Power Factor: 0.9

• Operating Temperature: -4°F to 113°F

Finish

• White (LR42607)

• Black (LR42608)

Packaging

LR42607 – White

• UPC: 793888464643

• Master Carton: 15.82" × 12.20" × 14.96"

• Case Size: 20

LR42608 – Black

• UPC: 793888464742

• Master Carton: 15.82" × 12.20" × 14.96"

• Case Size: 20
