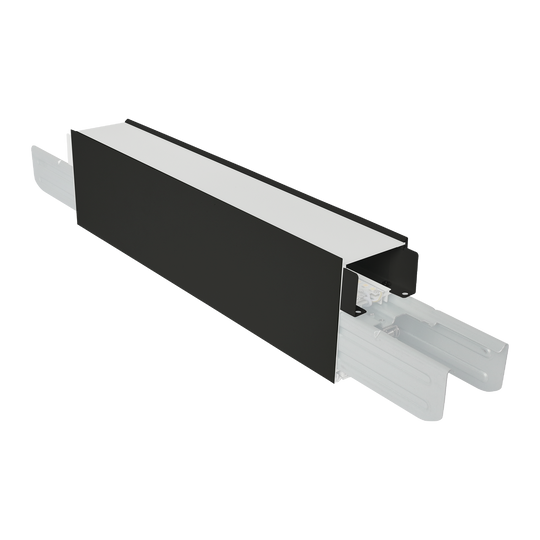

The Architectural Linkable Linear 6" Connectors (LR42602 – White & LR42603 – Black) are designed to provide seamless connections between modular linear lighting sections for commercial and architectural applications. These high-quality connectors enable straight, continuous runs while maintaining uniform light output and consistent electrical performance.

Compatible with 3 CCT / 3 Wattage Selectable Architectural Linear fixtures, these 6" connectors allow color temperature options of 3500K, 4000K, and 5000K, delivering versatile lighting solutions with a 120° beam angle and CRI 80 for accurate color rendering.

Engineered for durability and reliability in professional environments, they offer a 50,000-hour rated lifetime, 0–10V dimming capability, universal 120–277V input, and a 0.9 power factor. Compact and efficient, the connectors measure 11.89" (L) × 1.97" (W) × 2.95" (H) and are available in white or black finishes to complement any linear lighting design.

Perfect for office, retail, or industrial lighting projects, these connectors ensure a clean, professional installation and long-term performance.

⚙️ Technical Specifications Summary

Models

• LR42602 – White 6" Connector

• LR42603 – Black 6" Connector

Dimensions

• Length: 11.89"

• Width: 1.97"

• Height: 2.95"

Photometric

• CCT Selectable: 3500K / 4000K / 5000K

• Beam Angle: 120°

• CRI: 80

Electrical

• Input Voltage: 120–277V

• Rated Lifetime: 50,000 hours

• Dimming: 0–10V

• Power Factor: 0.9

• Operating Temperature: -4°F to 113°F

Finish

• White (LR42602)

• Black (LR42603)

Packaging

LR42602 – White

• UPC: 793888464445

• Master Carton: 11.02" × 12.79" × 12.59"

• Case Size: 20

LR42603 – Black

• UPC: 793888464544

• Master Carton: 14.88" × 12.79" × 12.40"

• Case Size: 20
