1x3 LED Adjustable Slim Linear High Bay | 48k Lm Max | 120/277V | 4-CCT Selectable | Detroit Collection | Luxrite LR41710

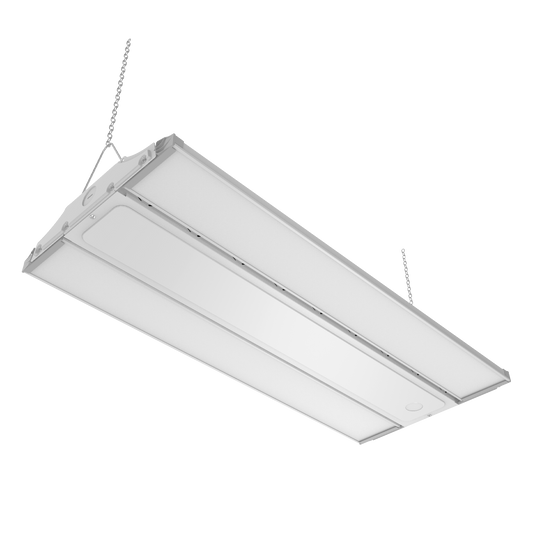

The LR41710 1x3 Slim Linear High Bay LED Fixture is a high-output commercial lighting solution engineered for warehouses, manufacturing facilities, distribution centers, gymnasiums, retail environments, and other large indoor spaces requiring powerful and energy-efficient illumination. Featuring a slim architectural design with selectable wattage and 4CCT technology, this fixture delivers flexible lighting performance for demanding commercial applications.

The LEDASLHB1X3HO/3WO/4CCT/WT/D includes 3 selectable wattages (180W / 230W / 260W) and 4 selectable color temperatures (3000K / 3500K / 4000K / 5000K), allowing contractors and facility managers to customize brightness and light appearance based on project requirements. The 3000K setting creates a warmer environment, while 5000K provides crisp daylight illumination ideal for active workspaces and warehouse visibility.

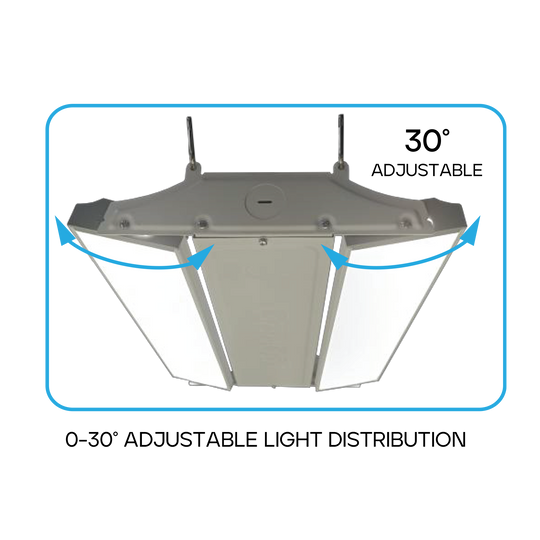

Delivering powerful lumen outputs of 32,000 / 40,000 / 48,000 lumens, this slim linear high bay fixture is designed to maximize coverage and reduce fixture quantity in high-ceiling applications. The 90° beam angle helps direct illumination efficiently across aisles, production lines, storage racks, and open commercial areas.

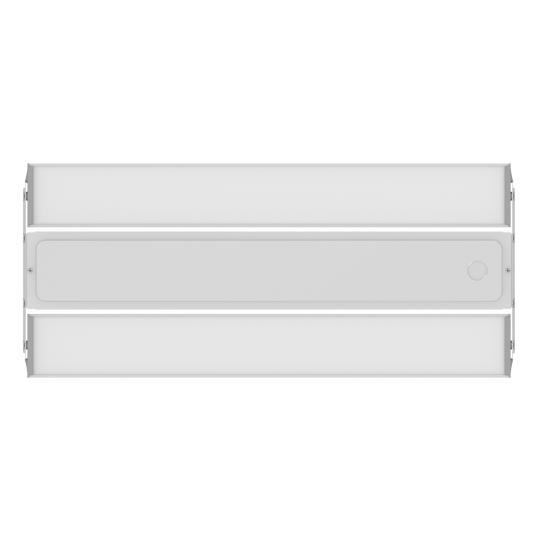

Built with a clean white finish, the LR41710 combines modern styling with durable commercial-grade construction. Its slim profile measures 9.9 inches in length, 23.1 inches in width, and only 1.9 inches in height, making it ideal for facilities seeking high lumen output in a low-profile fixture design.

Designed for professional electrical systems, this fixture operates on 120-277V universal voltage and includes 0-10V dimming capability for compatibility with occupancy sensors, daylight harvesting systems, and advanced lighting controls. With a 50,000-hour rated lifetime, it helps reduce maintenance and replacement costs over time.

The LR41710 performs reliably in temperatures ranging from -4°F to 122°F, making it suitable for warehouses, industrial buildings, commercial facilities, and demanding indoor environments. With efficacy up to 140 lm/W, it delivers excellent brightness while maintaining energy-efficient operation.

Technical Specifications

Model Number: LR41710
Item Number: LR41710
Description: LEDASLHB1X3HO/3WO/4CCT/WT/D

Fixture Type: Slim Linear High Bay LED
Finish: White
Size: 1x3

Dimensions:

• Length: 9.9"
• Width: 23.1"
• Height: 1.9"

Selectable Wattage: 180W / 230W / 260W
Selectable CCT: 3000K / 3500K / 4000K / 5000K

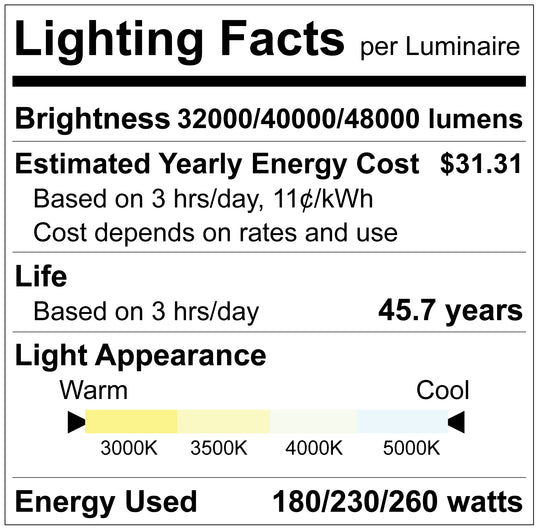

Lumens: 32,000 / 40,000 / 48,000
CRI: 80
Beam Angle: 90°

Electrical:

• Voltage: 120-277V
• Dimming: 0-10V
• Power Factor: 0.9
• Input Current: 1300mA
• Frequency: 50/60Hz
• Rated Lifetime: 50,000 Hours
• Estimated Yearly Cost: $26.49

Lumen Efficacy:

• 140 lm/W

Operating Temperature:

• Minimum: -4°F
• Maximum: 122°F

Packaging:

• UPC Barcode: 793888471641
• Master Barcode: 10793888471648
• Case Size: 1
