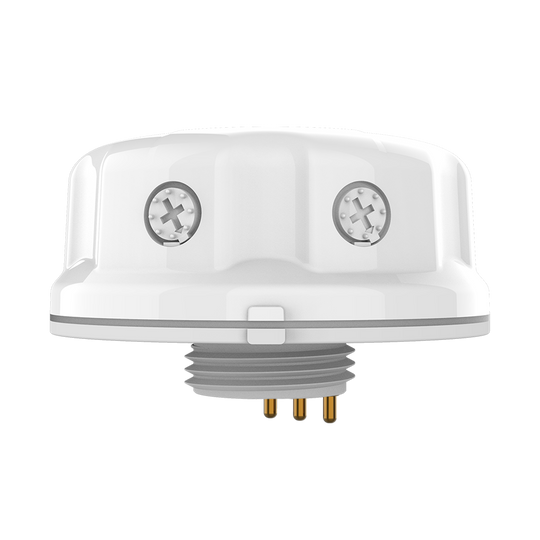

Bi-Level Adjustable Microwave Motion Sensor | 3-PIN+Receptacle | 12V | Detroit Collection | Luxrite LR41706

Enhance lighting efficiency and automation with the LR41706 Microwave Adjustable Motion Sensor Bi-Level – 3 Pin + Receptacle, a versatile smart occupancy sensor designed for reliable performance in commercial and industrial lighting systems. Ideal for warehouses, workshops, parking garages, offices, stairwells, storage facilities, and retail backrooms, this sensor provides intelligent lighting control while reducing energy consumption.

The LEDSNS/LHB/MW/BiLevel/3P/RECP utilizes advanced microwave sensing technology operating at 5.8GHz ±75MHz, ensuring accurate motion detection even in environments where traditional PIR sensors may be less effective. Microwave sensors are less sensitive to temperature changes and can detect movement through certain non-metallic materials, making them ideal for professional applications.

This sensor features Bi-Level lighting control, automatically switching fixtures to full brightness when motion is detected and dimming to a preset standby level when the area is unoccupied. This helps improve safety, reduce energy costs, and extend the lifespan of LED fixtures.

Designed for maximum compatibility, the LR41706 includes both a 3-pin connection and receptacle base, allowing flexible installation options for a wide range of LED fixtures, including UFO high bays and slim linear high bays. Its 0-10V dimming capability enables seamless integration with modern LED drivers and lighting control systems.

With a compact form factor of 2.12" x 0.96", this sensor features a clean white finish and a low-profile design that blends easily into fixture housings. It operates on 12V low voltage, consumes only 0.5W, and draws less than 50mA, ensuring efficient and reliable operation.

Engineered for demanding environments, this motion sensor performs in extreme temperatures from -40°F to 158°F, making it suitable for cold storage facilities, industrial applications, and harsh indoor conditions.

Choose the LR41706 Microwave Adjustable Motion Sensor Bi-Level for flexible installation, smart lighting control, and improved energy efficiency in commercial LED systems.

Technical Specifications

Model Number: LR41706
Item Number: LR41706
Description: LEDSNS/LHB/MW/BiLevel/3P/RECP

Product Type: Microwave Motion Sensor
Control Type: Bi-Level Adjustable Occupancy Sensor
Connection Type: 3-Pin + Receptacle
Shape: Motion Sensor
Finish: White

Dimensions:

• Size: 2.12" x 0.96"
• Diameter / Width: Ø2.12"
• Depth: 0.96"

Electrical:

• Power Consumption: 0.5W
• Input Voltage: 12V
• Dimming: 0-10V
• Input Current: <50mA
• Frequency: 5.8GHz ±75MHz

Operating Temperature:

• Minimum: -40°F
• Maximum: 158°F

Packaging:

• UPC Barcode: 793888462243
• Master Barcode: 10793888462240
• Master Carton Dimensions: 15.78" x 11.81" x 9.29"
