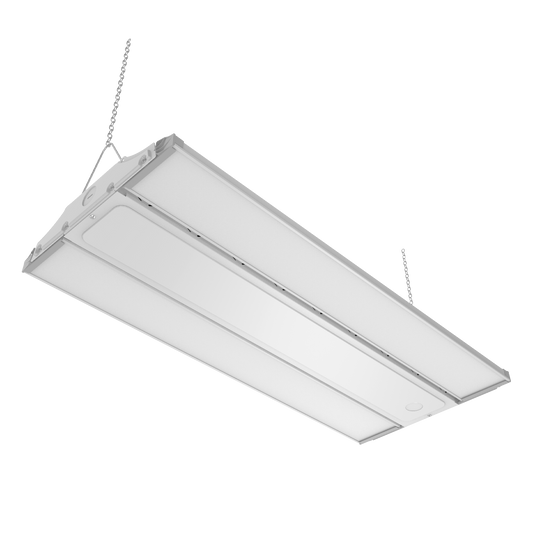

1x2 LED Adjustable Slim Linear High Bay | 30k Lm Max | 120/277V | 4-CCT Selectable | Detroit Collection | Luxrite LR41705

The LR41705 1x2 Slim Linear High Bay LED Fixture is a high-performance commercial lighting solution designed for warehouses, manufacturing facilities, retail stores, gymnasiums, workshops, and other large indoor spaces requiring powerful and efficient illumination. Featuring a slim low-profile design with selectable wattage and 4CCT technology, this fixture provides installation flexibility and customizable lighting performance for a wide range of commercial applications.

The LEDASLHB1X2/3WO/4CCT/WT/D includes 3 selectable wattages (165W / 190W / 220W) and 4 selectable color temperatures (3000K / 3500K / 4000K / 5000K), allowing contractors and facility managers to adjust both light output and color appearance based on project requirements. Warm 3000K lighting is ideal for softer commercial environments, while 5000K delivers crisp daylight illumination for warehouses and active workspaces.

Delivering lumen outputs of 24,000 / 27,000 / 30,000 lumens, this slim linear high bay provides powerful light distribution while maintaining energy-efficient performance. The 90° beam angle helps focus illumination downward, making it suitable for aisles, production areas, storage facilities, and open commercial ceilings.

Designed with a modern white finish, the LR41705 blends clean architectural styling with commercial-grade durability. Its slim housing measures 9.9 inches in length, 23.1 inches in width, and only 1.9 inches in height, making it ideal for installations where a compact high-output fixture is preferred.

Built for commercial electrical systems, this fixture operates on 120-277V universal voltage and includes 0-10V dimming capability for compatibility with occupancy sensors, daylight harvesting systems, and advanced lighting controls. With a 50,000-hour rated lifetime, it helps reduce maintenance costs and fixture replacements over time.

The LR41705 performs reliably in temperatures from -4°F to 122°F, making it suitable for warehouses, industrial spaces, distribution centers, and other demanding indoor environments. With efficacy up to 140 lm/W, it delivers excellent brightness while reducing energy consumption.

Technical Specifications

Model Number: LR41705
Item Number: LR41705
Description: LEDASLHB1X2/3WO/4CCT/WT/D

Fixture Type: Slim Linear High Bay LED
Finish: White
Size: 1x2

Dimensions:

• Length: 9.9"
• Width: 23.1"
• Height: 1.9"

Selectable Wattage: 165W / 190W / 220W
Selectable CCT: 3000K / 3500K / 4000K / 5000K
Lumens: 24,000 / 27,000 / 30,000
CRI: 80
Beam Angle: 90°

Electrical:

• Voltage: 120-277V
• Dimming: 0-10V
• Power Factor: 0.9
• Input Current: 1300mA
• Frequency: 50/60Hz
• Rated Lifetime: 50,000 Hours

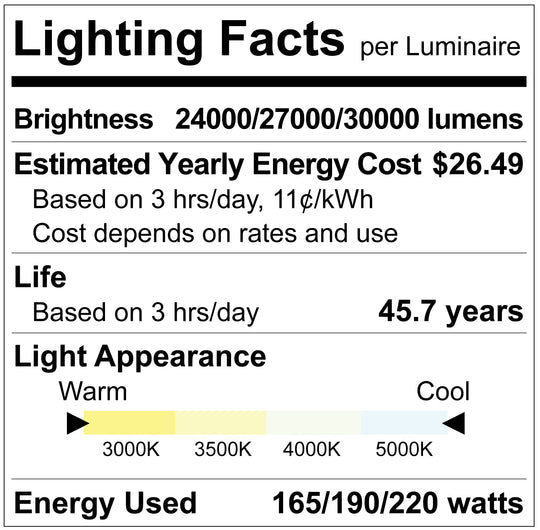

• Estimated Yearly Cost: $26.49

Lumen Efficacy:

• 140 lm/W

Operating Temperature:

• Minimum: -4°F
• Maximum: 122°F

Packaging:

• UPC Barcode: 793888408043
• Master Barcode: 10793888408040
• Case Size: 1
