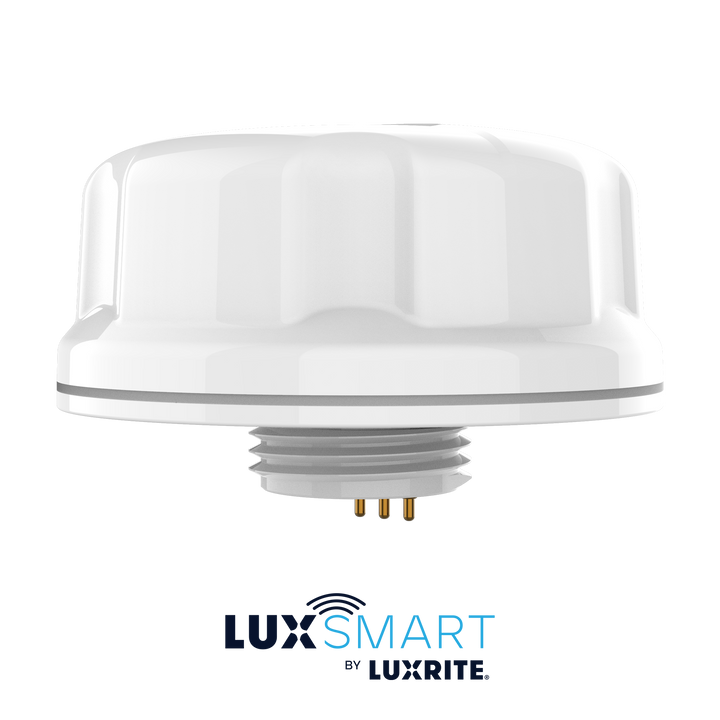

Bi-Level Adjustable Microwave Smart Motion Sensor | 12V | Detroit Collection | Luxrite LR41704

Optimize your commercial lighting system with the LR41704 Bi-Level Adjustable Microwave Smart Motion Sensor – Receptacle Base, an advanced occupancy sensor designed for seamless integration, intelligent control, and maximum energy savings. Ideal for warehouses, offices, parking garages, storage areas, stairwells, workshops, and industrial facilities, this smart sensor enhances lighting automation while improving safety and efficiency.

The LEDSNS/MW/BiLevel/SMRT/3P/RECP utilizes microwave sensing technology operating at 5.8GHz ±75MHz, delivering highly reliable motion detection even in challenging environments. Unlike traditional PIR sensors, microwave sensors can detect movement through non-metallic materials and are less affected by ambient temperature, making them ideal for professional-grade applications.

This sensor features Bi-Level lighting control, automatically activating full brightness when motion is detected and dimming to a preset standby level when the area is unoccupied. This functionality reduces energy consumption, extends fixture lifespan, and maintains a safe ambient light level in low-traffic areas.

Equipped with a receptacle base, the LR41704 allows for quick plug-in installation into compatible fixtures, minimizing labor time and simplifying retrofits or new installations. It also supports app-based dimming control, enabling users to configure settings such as detection range, hold time, standby level, and daylight threshold directly from a mobile interface for maximum flexibility.

With a compact size of 2.12" x 0.96", this sensor features a clean white finish and low-profile design that integrates easily into modern lighting systems. Operating on 12V low voltage with less than 50mA input current, it provides efficient and reliable performance.

Built for extreme environments, this smart sensor operates in temperatures ranging from -40°F to 158°F, making it suitable for cold storage facilities, industrial buildings, and demanding indoor or covered outdoor applications.

Choose the LR41704 Microwave Smart Motion Sensor with Receptacle Base for advanced lighting control, easy installation, and smart energy management in commercial LED systems.

Technical Specifications

Model Number: LR41704
Item Number: LR41704
Description: LEDSNS/MW/BiLevel/SMRT/3P/RECP

Product Type: Microwave Smart Motion Sensor
Control Type: Bi-Level Adjustable Occupancy Sensor
Base Type: Receptacle
Shape: Smart Motion Sensor
Finish: White

Dimensions:

• Size: 2.12" x 0.96"
• Diameter: Ø2.12"
• Depth: 0.96"

Electrical:

• Power Consumption: 0.5W
• Input Voltage: 12V
• Dimming Control: Via App
• Input Current: <50mA
• Frequency: 5.8GHz ±75MHz

Operating Temperature:

• Minimum: -40°F
• Maximum: 158°F

Packaging:

• UPC Barcode: 793888462144
• Master Barcode: 10793888462141
• Master Carton Dimensions: 15.78" x 11.81" x 9.29"
