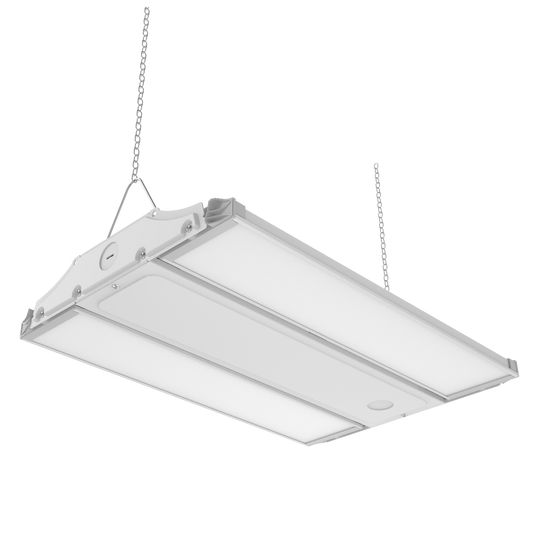

1x1 LED Adjustable Slim Linear High Bay | 20.500Lm Max | 120/277V | 4-CCT Selectable | Detroit Collection | Luxrite LR41700

Upgrade your facility with the modern and energy-efficient LR41700 1x1 Slim Linear High Bay LED Fixture, engineered for superior performance in commercial and industrial environments. Designed for warehouses, retail spaces, workshops, manufacturing facilities, gymnasiums, and open ceiling applications, this slim linear high bay delivers powerful illumination with a sleek, low-profile design.

The LEDASLHB1X1/3WO/4CCT/WT/D offers maximum versatility with 3 selectable wattages (80W / 110W / 150W) and 4 selectable color temperatures (3000K / 3500K / 4000K / 5000K). This allows contractors and facility managers to customize both brightness and light tone based on specific applications. Choose 3000K for warm ambient lighting, 3500K for neutral comfort, 4000K for balanced task lighting, or 5000K for crisp daylight visibility.

With lumen outputs of 12,000 / 15,000 / 20,500 lumens, this fixture provides excellent light coverage for large spaces while maintaining high efficiency. The wide 120° beam angle ensures even light distribution, reducing shadows and creating uniform illumination across open areas, aisles, and workstations.

Designed with a compact 1x1 form factor and a slim profile of only 1.9 inches height, this high bay is ideal for applications requiring a modern aesthetic or lower mounting heights compared to traditional UFO fixtures. The white finish enhances its clean, architectural appearance, making it suitable for both industrial and commercial interiors.

Built for professional-grade performance, the LR41700 operates on 120-277V universal voltage and includes 0-10V dimming capability for integration with occupancy sensors, daylight harvesting systems, and advanced lighting controls. With a 50,000-hour rated lifetime, it significantly reduces maintenance costs and fixture replacements.

This fixture performs reliably in temperatures from -4°F to 122°F, making it suitable for a wide range of indoor commercial applications. With an efficacy of up to 140 lm/W, it provides excellent brightness while reducing energy consumption.

Choose the LR41700 Slim Linear High Bay LED for modern design, customizable lighting performance, and efficient commercial illumination.

Technical Specifications

Model Number: LR41700
Item Number: LR41700
Description: LEDASLHB1X1/3WO/4CCT/WT/D

Fixture Type: Slim Linear High Bay LED
Finish: White
Size: 1x1

Dimensions:

• Length: 9.9"
• Width: 14.7"
• Height: 1.9"

Selectable Wattage: 80W / 110W / 150W
Selectable CCT: 3000K / 3500K / 4000K / 5000K
Lumens: 12,000 / 15,000 / 20,500
CRI: 80
Beam Angle: 120°

Electrical:

• Voltage: 120-277V
• Dimming: 0-10V
• Power Factor: 0.9
• Input Current: 2000mA
• Frequency: 50/60Hz
• Rated Lifetime: 50,000 Hours

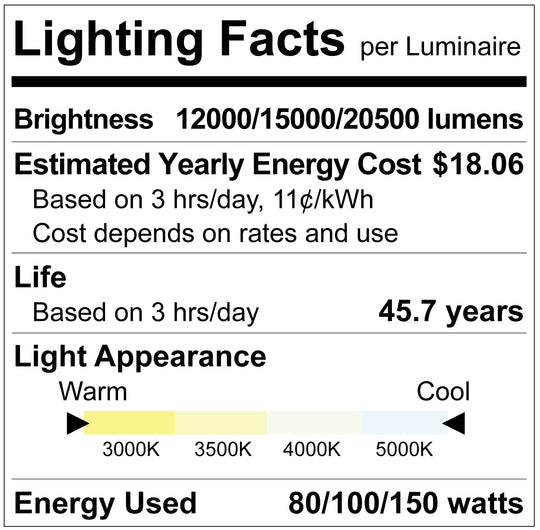

• Estimated Yearly Cost: $18.06

Lumen Efficacy:

• Up to 140 lm/W

Operating Temperature:

• Minimum: -4°F
• Maximum: 122°F

Packaging:

• UPC Barcode: 793888407947
• Master Barcode: 10793888407944
• Case Size: 1
