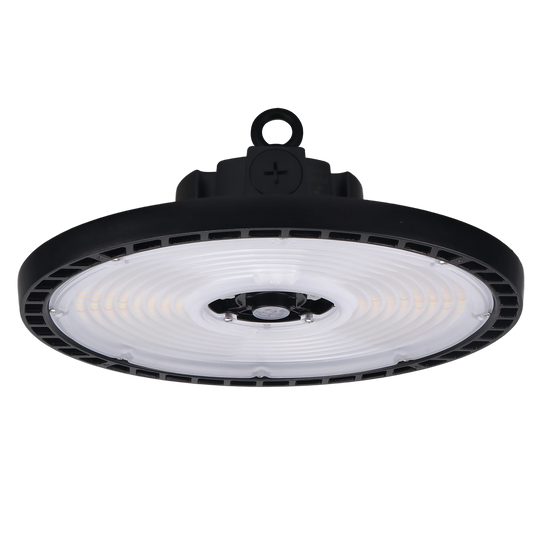

240W LED UFO Round High Bay | 34.800Lm Max | 120/277V | 2-CCT Selectable | Luxrite LR41546

Illuminate large commercial and industrial spaces with the high-performance LR41546 240W UFO High Bay LED Fixture, engineered for maximum brightness, energy efficiency, and installation flexibility. Designed for warehouses, factories, gymnasiums, logistics centers, workshops, aircraft hangars, retail stores, and high-ceiling facilities, this premium UFO High Bay LED delivers powerful output with selectable wattage and dual color temperature options.

The LEDUFO240/3WO/2CCT/V3/BK offers 3 selectable wattages (150W / 200W / 240W) and 2 selectable CCT settings (4000K / 5000K), allowing contractors and facility managers to customize lumen output and color tone based on the application. Choose 4000K neutral white for comfortable task lighting or 5000K daylight white for maximum clarity and visibility.

Producing exceptional lumen packages of 30,200 / 32,560 / 34,800 lumens @5000K, this fixture is ideal for replacing traditional HID high bay systems while reducing energy costs and maintenance. Its 90° beam angle provides concentrated downward illumination, perfect for warehouse aisles, production lines, storage racks, and expansive open areas.

Built with a rugged black finish, the LR41546 combines modern industrial styling with durable construction and efficient thermal management. Its compact dimensions of Ø12.6 inches diameter x 5.75 inches height make it suitable for a wide variety of mounting applications without sacrificing performance.

Designed for professional electrical systems, this fixture operates on 120-277V universal voltage and includes 0-10V dimming capability for advanced controls such as occupancy sensors, daylight harvesting systems, and smart energy management. With a 50,000-hour rated lifetime, users benefit from long-term reliability and lower replacement costs.

This high bay is built to perform in harsh conditions with an operating temperature range of -40°F to 122°F, making it suitable for cold storage, industrial spaces, and demanding commercial environments. Offering efficacy up to 154 lm/W @4000K, it delivers excellent brightness with lower power consumption.

Choose the LR41546 240W UFO High Bay LED for powerful illumination, customizable performance, and dependable commercial-grade lighting.

Technical Specifications

Model Number: LR41546
Item Number: LR41546
Description: LEDUFO240/3WO/2CCT/V3/BK

Fixture Type: UFO High Bay LED
Finish: Black
Dimensions: Ø12.6" Diameter x 5.75" Height

Selectable Wattage: 150W / 200W / 240W
Selectable CCT: 4000K / 5000K

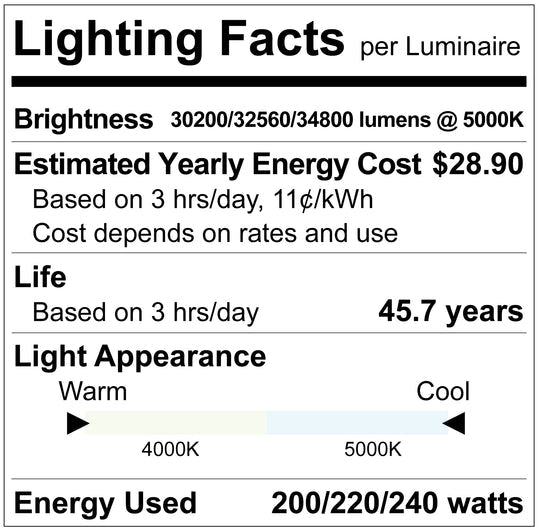

Lumens: 30,200 / 32,560 / 34,800 @5000K
CRI: 80
Beam Angle: 90°

Electrical:

• Voltage: 120-277V
• Dimming: 0-10V
• Power Factor: 0.9
• Frequency: 50/60Hz
• Rated Lifetime: 50,000 Hours
• Estimated Yearly Cost: $28.90

Efficacy:

• 154 lm/W @4000K
• 146 lm/W @5000K

Operating Temperature:

• Minimum: -40°F
• Maximum: 122°F

Packaging:

• UPC Barcode: 732388945764
• Master Barcode: 10732388945761
• Master Carton Dimensions: 13.58" x 13.58" x 5.51"
• Case Size: 1
